Supercontinuum Fiber Lasers

SMR Series Broadband Light Sources

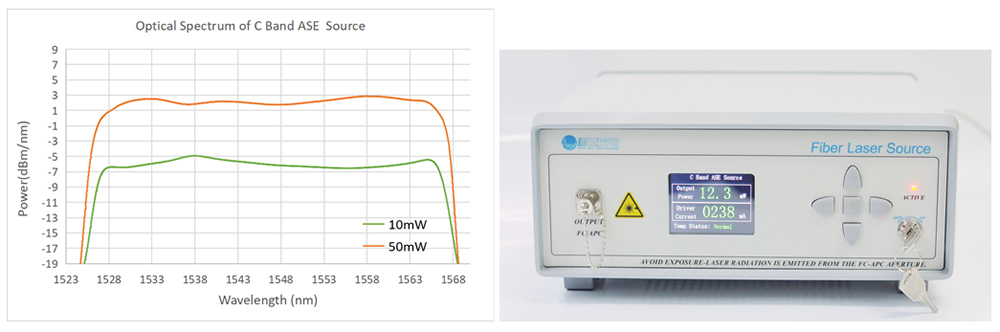

1.C-band ASE Broadband Light Source

The wavelength of light source covers c-band, and the flatness of spectrum is better than 2dB.

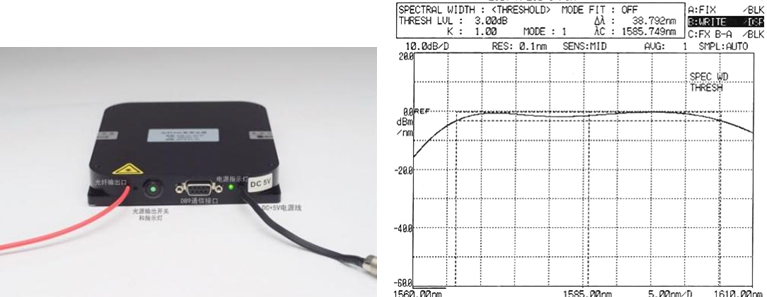

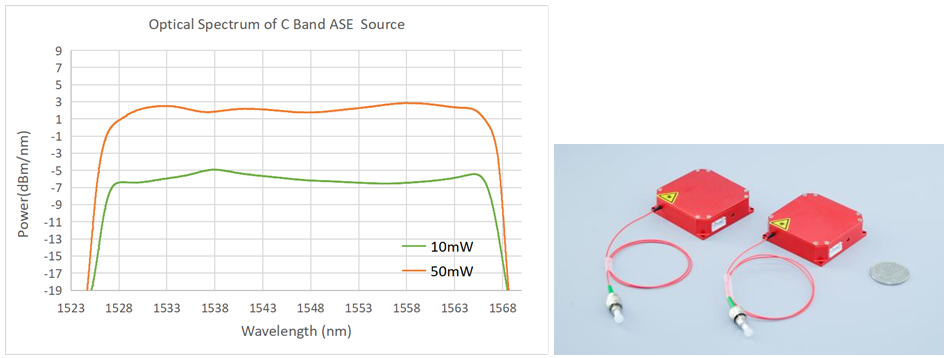

2.C-band ASE Broadband Light Source in Micro Format

3. L-band ASE Broadband Light Source

4. C+L band ASE Broadband Light Source

*Flatness≤2dB@10/20mW and Flatness≤6dB@200mW is also available upon request.

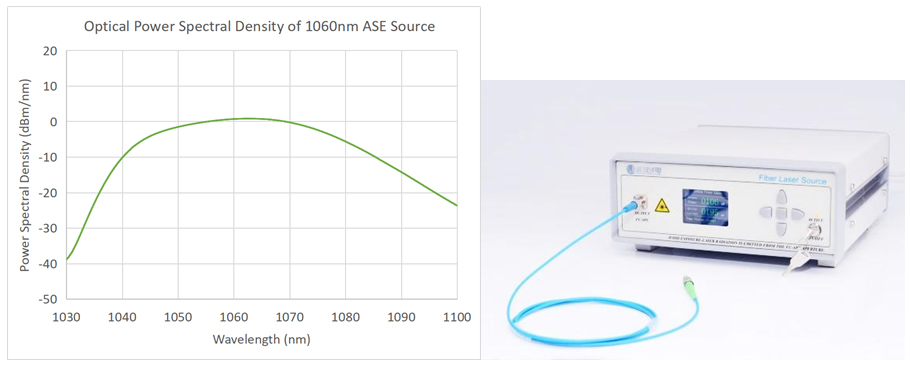

5. 1060nm ASE Broadband Light Source

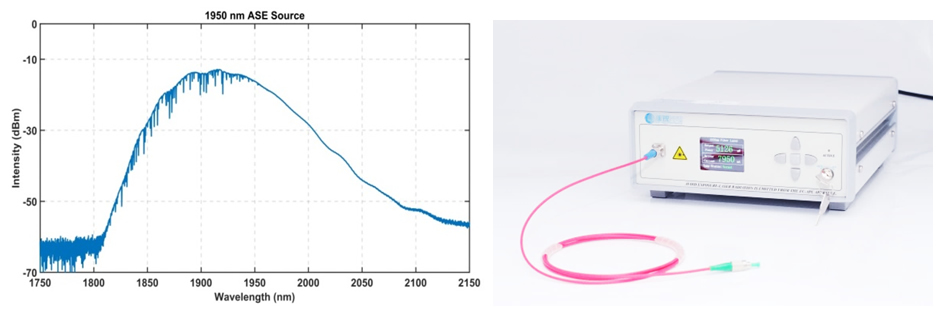

6. 2000nm-band ASE Broadband Light Source

STYS Series Supercontinuum Laser Sources

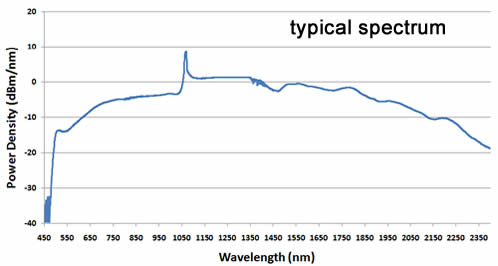

1. Supercontinuum Laser STYS-SC-5

Supercontinuum source STYS-SC-5 is a cost effective supercontinuum laser. With a total output power of more than 500mW covering a broad spectral range of 450nm to 2400nm, the system is an ideal light source for fiber component characterization, fiber sensing, OCT and other areas. The system is based on self-designed highly reliable seed laser offering unique reliability and performance. STYS-SC-5 can replace the traditional ASE, SLD and lamp systems in many applications.

Features:

• FC/APC fiber connector output

• Up to 500mW

• Single-mode output

• 450nm-2400nm

• Spectrum Stability<0.1dB

• With anti-reflection isolator

Applications:

• Fiber component characterization

• Fiber sensing

• OCT

• Industry inspection

• Broadband spectroscopy

• Fluorescence spectroscopy

Option: fiber collimated output >1W total powerw at 450-2400nm.

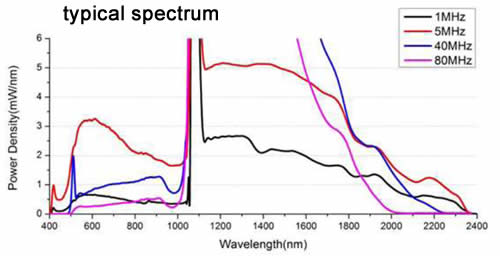

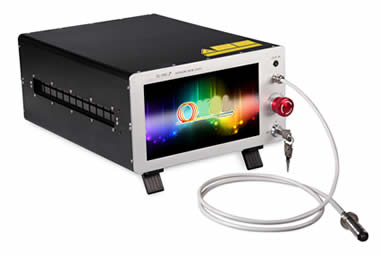

2. Supercontinuum Laser STYS-SC-PRO

STYS-SC-Pro is the latest high-power supercontinuum source with variable repetition rate from 10kHz to 80MHz. It delivers a wide spectral output ranging from 430nm to 2400nm with 8W total power (10-20W optional). It has the unique feature of 1MHz-80MHz external triggerable range which could be very useful for locking to the mode-locked laser for pump-probe application. STYS-SC-Pro offers >1μJ pulse energy (@1MHz), making it the ideal source for super resolution microscopy. The 10kHz to 80MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.

Features:

• Wavelength: 430nm-2400nm

• Total power: 8W (10-20W Optional)

• Internal Repetition Rate: 0.01-80MHz

• External Triggerable (Optional): 1MHz-80MHz

• Pulse Energy: >1μJ

Applications:

• OCT

• Fluorescence Spectroscopy and Microscopy

• Nanophotonics

• Super-Resolution Imaging

• Photocurrent microscopy

Optional:

• Total Power: 10-20W

• Fundamental Pulse Width: 50ps

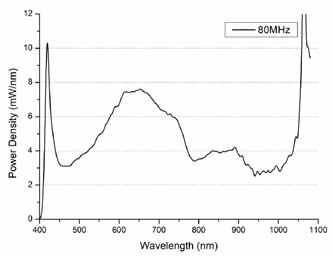

3. Mode-locked Supercontinuum Source STYS-SC-Pro-M

STYS-SC-Pro-M is the latest supercontinuum source with a seed source pulse duration of 6ps. It delivers a wide spectral output ranging from 410nm to 2400nm with over 7W total power. The optional 10kHz to 40MHz repetition rate capability also makes it an ideal source for the applications such as low noise OCT,fluorescence microscopy, nanophotonics and etc.

Applications:

• OCT

• Fluorescence Spectroscopy and Microscopy

• Nanophotonics

• Super-Resolution Imaging

• Photocurrent microscopy

Features:

• Wavelength: 410nm-2400nm

• Total power: 7W

• Repetition Rate: 80MHz

• Seed source pulse duration: ~6ps

• Single-Mode Output

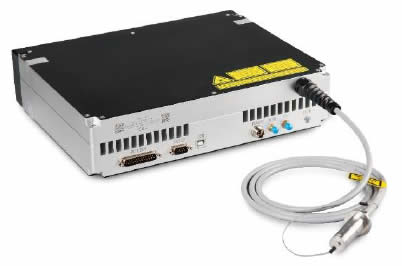

4. Supercontinuum Source STYS-SC-OEM

STYS-SC-OEM is the latest high power supercontinuum source with the compact footprint for the demanding medical and industry application. The STYS-SC-OEM, with 10kHz to 200MHz repetition rate range, delivers a wide spectral output ranging from 430nm to 2400nm with >8W total power. The STYS-SC-OEM not only maintains the traditional supercontinuum light source excellent performance, but also sets aside DB25, RS232, NIM trigger, Pulse on Demand (POD) and many other control interface. The wide spectrum combined with laser beam quality makes it an ideal source for replacing traditional broadband source like lamp, LED, SLED or any number of laser lines in the system.

Applications:

• Semiconductor Inspection & Metrology

• Industrial Sorting/ Machine Vision

• Medical Instrumentation

• Flow Cytometry

• Optical Coherence Tomography

Features:

• Wavelength: 400nm-2400nm

• Total Power: >8W

• Visible Power: >1200mW

• Repetition Rate: 10kHz-200MHz

• Optional External Triggerable: 1-80MHz

The above supercontinuum lasers can be used with our STY series acousto-optical tunable filters (AOTF) for wavelength selection. For more information on the tunable filters, please click here.

STN-SpectraChrome1000 Mid-IR Supercontinuum Laser

We has developed a unique, patented mid-IR fiber supercontinuum technology providing wavelength coverage from 1000nm to 5000nm with high average power >1W picosecond pulses at variable repetition rates. The single mode output is delivered from armored fiber. This turn-key broadband Mid IR source has applications in spectroscopy applications, particularly for hydrocarbon and gas sensing

Features

• Wavelength coverage 1000nm to 5000nm

• High average power >1W

• Picosecond pulses

• Variable Repetition Rate

• Single mode output

• Armored delivery fiber

Specifications:

STM Series Erbium Broadband Sources

Our Erbium Broadband Sources with single or dual band coverage provide excellent stability and flatness over the entire bandwidth. As an invaluable addition to Test and Measurement workstations requiring a noise source or spectrally spliced output to provide ITU locked channels, these units can be easily integrated into new or existing system. 1RU models have the option to control the unit using RS232, or the GUI. A complete line of flattened Broadband and Comb Sources designed for optical-component measurement, EDFA-subsystem evaluation and optical link characterization.

Features

• Provides broadband light several thousand times brighter than a typical EELED

• Unique and extra-ordinary source for different applications

• Output light is unpolarized

• Wide spectral range with excellent flatness

• Excellent stability of 5 mdB/hour

• Packaged in instrument or modular format

Applications

• Wide dynamic-range optical component testing

• Accurate EDFA gain spectrum measurement

• Telecom systems compliance tests

• Optical link characterization

• Optical-code division multiple access and local networking by spectral slicing

• Biomedical imaging

• Sensors & gyroscopes

1. DWDM Comb Sources

A series of high-power spectrally-sliced Erbium Broadband Sources providing up to 100 channels (50 GHz) locked to the ITU grid at 22 dBm output power. This source can dramatically reduce equipment cost and setup time in DWDM system test, replacing costly banks of DFB lasers.

• Features the same power-spectral density as a full set of DFB lasers

• Extremely stable

• 50 GHz and 100 GHz spacing available

• Channels locked to ITU grid

• High peak-to-valley extinction ratio

Add / Drop Option

Combining the Add/Drop box with our ASE Comb Source allows for an even broader range of applications. The Add/Drop box filters out one or more fixed channels depending on the customer’s request.

• Allows the replacement of these missing channels with real data carrying channels

• Modulated channels can be used for Bit-Error Rate testing

• Easy monitoring of Four-Wave Mixing

Applications

• Simultaneously measure optical amplifier gain flatness and noise figure under conditions of full channel loading (high peak-to-valley extinction ratio extends NF measurement capability to high-power booster amplifiers)

• Measure the full band OSNR and channel power evolution over links consisting of multiple spans and optical amplifiers without the need for costly banks of DFB lasers

• Measure magnitude of inter-channel Raman pumping along a span for fully-loaded band case

• Test DWDM demux components

Specifications

Our Comb Sources can be designed to meet customer-specific requests. Contact us to discuss your requirements.

2. Brodband Sources

High power flat and stable Broadband Sources for Automated Test and Measurement work stations or stand-alone lab test equipment.

3. Gain Module Broadband Sources

Compact and lightweight in half- (STM-EBS-µ) and full-MSA (STM-EBS-xs) packages, these Broadband Sources can provide up to 21 dBm output power over 35 nm bandwidth with a maximum power consumption of < 5 watts. A graphical user interface provides access to the unit. Communication is via RS232/485.
