High precision fiber laser cutting machine

High precision fiber laser cutting machine  is a high-end fiber laser cutting and processing system that integrates  advanced fiber laser technology, numerical control technology, and precision  mechanical technology. It is a perfect fusion of laser technology and numerical  control technology, representing a leading level of cutting and processing. It  is equipped with an independently developed precision cutting control system,  with continuous and fast curve cutting functions and the shortest processing  path optimization function, which is not affected by the shape of the  workpiece, It can process any shape, with smooth and beautiful cutting seams.  It can perform precise cutting of any shape on small workpieces, making your  production process simpler and more efficient. The high-precision fiber laser  cutting machine has the characteristics of high single machine processing  efficiency, complete dust free, stress free, burr free, and smooth and neat  cutting edges. One time cutting and forming, without the need for mold  development and secondary grinding processing, the process is simple, reducing  labor and time investment costs. Compared with traditional stamping and  forming, the processing cost of a single workpiece is lower, the efficiency is  increased by more than  twice, and the subsequent maintenance cost is only 1/3 to 1/4 of the same efficiency CNC punch. It can be applied to sapphire, ceramics,  silicon, and various metal sheets to quickly achieve precision cutting,  punching, chamfering, and surface treatment. It is widely used in industries  such as precision machinery and hardware that require high cutting accuracy.

Main features:

• Strong adaptability to materials,  able to adapt to the cutting and processing of various irregular small hardware  parts;

• High production efficiency, which  can replace traditional manufacturing  processes such as CNC punching, shearing, and manual work;

• Fast cutting speed, no edge  collapse phenomenon, no damage to the workpiece, with a high yield rate;

• High cutting accuracy, smooth cut  surface without burrs, good verticality, and no need for subsequent secondary  processing;

• The operation is simple and fast,  with a rich process database embedded, which can be called or modified with one  click;

• Stable and reliable performance,  efficient and energy-saving, low maintenance costs, and long service life;

• Various non-standard models and  fully automatic feeding devices can be customized to shorten the feeding time;

• Green and environmentally friendly  processing, no pollutants, no consumables, and high yield rate;

Ordering Guide

Model STC-XXXX-YY-AABB

Main technical parameters:

Remarks:

1.1 The above parameters are based on the 150W QC W laser and  6060 dual drive cutting cabinet, which can be customized non-standard according to customer requirements.  The configuration and parameters of each model  are subject to the technical solution provided by our company; 2. Although the processed workpiece belongs to the same specification  variety, there may be differences in processing performance and quality due to  differences in actual processing parts, surface conditions, material  composition, or processing shapes; 3. The positioning accuracy is  greatly affected by environmental temperature, and repeated positioning  accuracy may be affected by electrical interference, control system errors,  etc., resulting in a certain degree of deviation (≤ 1  μ m) .

Application  field:

Mainly designed for high-precision micro  hole cutting of various metal sheets below 5mm,  it is particularly suitable for precision cutting of metal materials such as stainless steel,  aluminized zinc plate, silicon steel, alloy steel, copper,  and non-metallic brittle materials such as sapphire, ceramics, wafer, etc. It  is widely used in industries such as 3C electronics,  medical equipment, military industry, aerospace, metal crafts, gold and silver  jewelry, hardware products, precision machinery, automotive parts, glasses, and  saw blades.

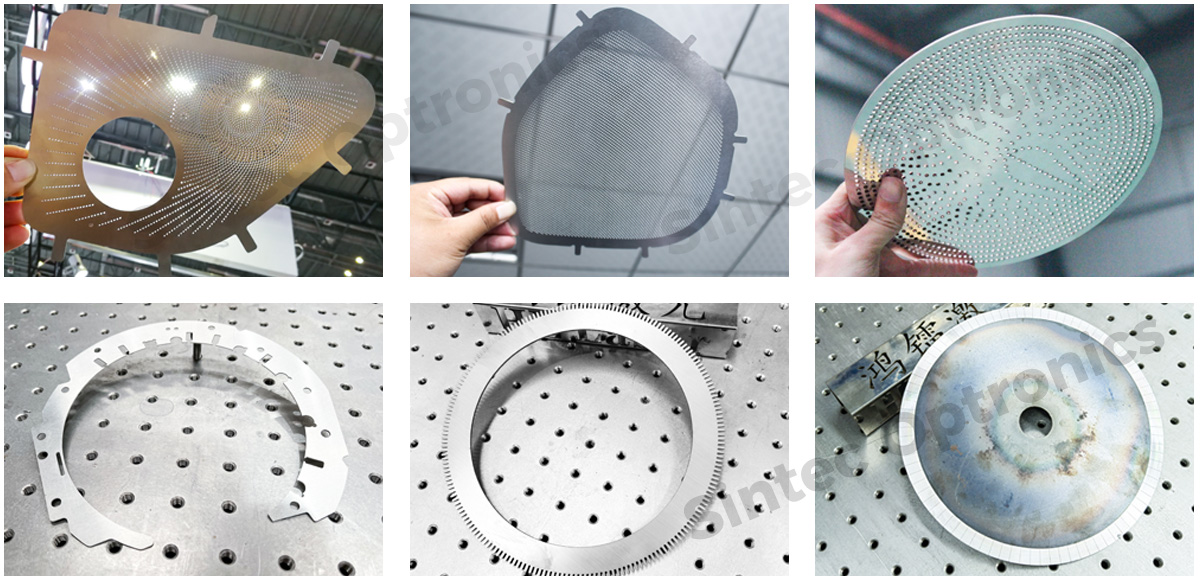

Sample display:
