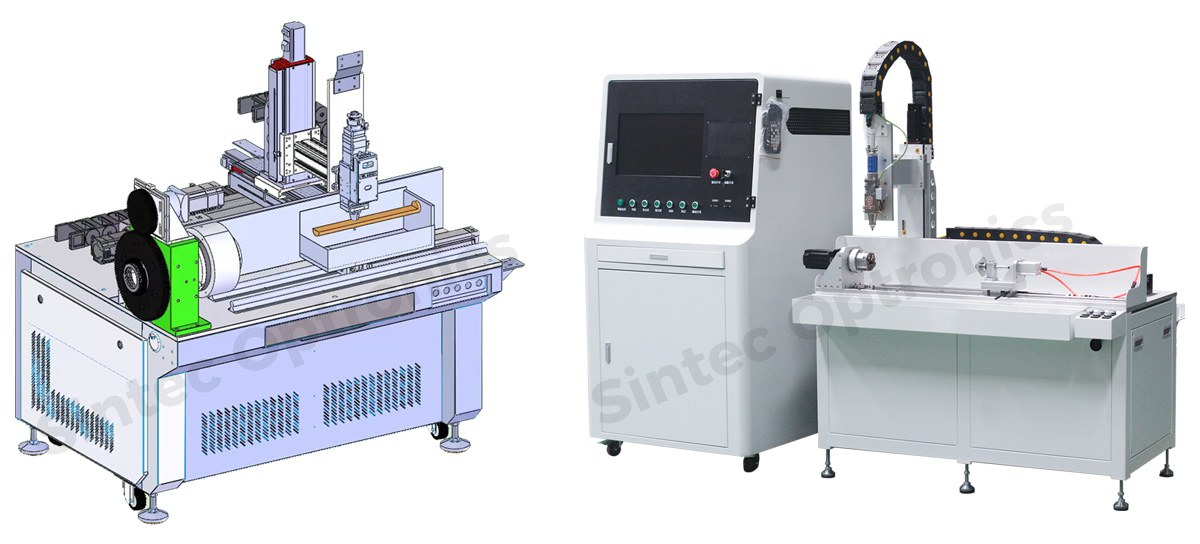

Precision laser cutting machine for hardware fittings

The precision laser cutting machine for  metal fittings is specially designed for mass rapid cutting of small metal  fittings. It is a specialized non-standard laser processing equipment for  precision fiber laser cutting and micro hole cutting of thin-walled metal  circular fittings. It is carefully developed based on the precision processing  needs of metal small fittings, precision circular fittings, and other precision  processing needs. The entire machine adopts a first-class brand fiber laser and  a dedicated intelligent collision prevention cutting head The precision servo  translation workbench and high-performance fiber laser cutting control system  are equipped with a complete set of precise control, simple operation,  intuitive convenience, and various detection functions and cutting processes.  The fusion of independently developed laser mode and power control has unique  advantages for thick wall, small hole cutting, and groove cutting. The  excellent spot quality and strong dynamic performance effectively ensure the  high-precision requirements during cutting and the stability of long-term work,  Easily achieve hole cutting, arc cutting, grooving or hollowing out of various  irregular small pipes within 1.5 meters. The  cutting section is smooth and does not damage the workpiece, generally without  the need for secondary processing or a small amount of polishing processing,  saving mold development, greatly reducing the process flow, production costs,  and greatly improving the speed and processing efficiency of new product  development.

Main features:

• Strong adaptability to materials,  able to adapt to the cutting and processing of various irregular small hardware  parts;

• High production efficiency, which  can replace traditional manufacturing  processes such as CNC punching, shearing, and manual work;

• Fast cutting speed, no edge  collapse phenomenon, no damage to the workpiece, with a high yield rate;

• High cutting accuracy, smooth cut  surface without burrs, good verticality, and no need for subsequent secondary  processing;

• The operation is simple and fast,  with a rich process database embedded, which can be called or modified with one  click;

• Stable and reliable performance,  efficient and energy-saving, low maintenance costs, and long service life;

• Various non-standard models and  fully automatic feeding devices can be customized to shorten the feeding time;

• Green and environmentally friendly  processing, no pollutants, no consumables, and high yield rate;

Main technical parameters:

Remarks: 1. This equipment is not suitable for cutting metal waste, solid  cylindrical workpieces, and non-metallic materials; 2. Although the processed workpiece belongs to the same specification  variety, there may be differences in processing performance and quality due to  differences in actual processing parts, surface conditions, material  composition, or processing shapes; 3. Non standard customization can be made according to customer  requirements, and the configuration and parameters of each model are subject to  the technical solution provided by our company.

Application field:

Mainly suitable for high-precision hole  cutting, slotting, hollowing out, and arc cutting of various irregular small hardware parts and circular pipes, square  pipes, bent pipes, variable  pipes, U-shaped pipes, curved pipes, and curved hardware within 1.5 meters.  It has fast cutting speed, smooth cuts, good verticality, one-time forming, and  no need for subsequent polishing and processing. Widely  used in hardware lighting, kitchenware, automotive oil pipes, instrument panel  pipe racks, electric tools, exhaust pipes, stainless steel furnace cores,  automotive hardware fittings, etc.

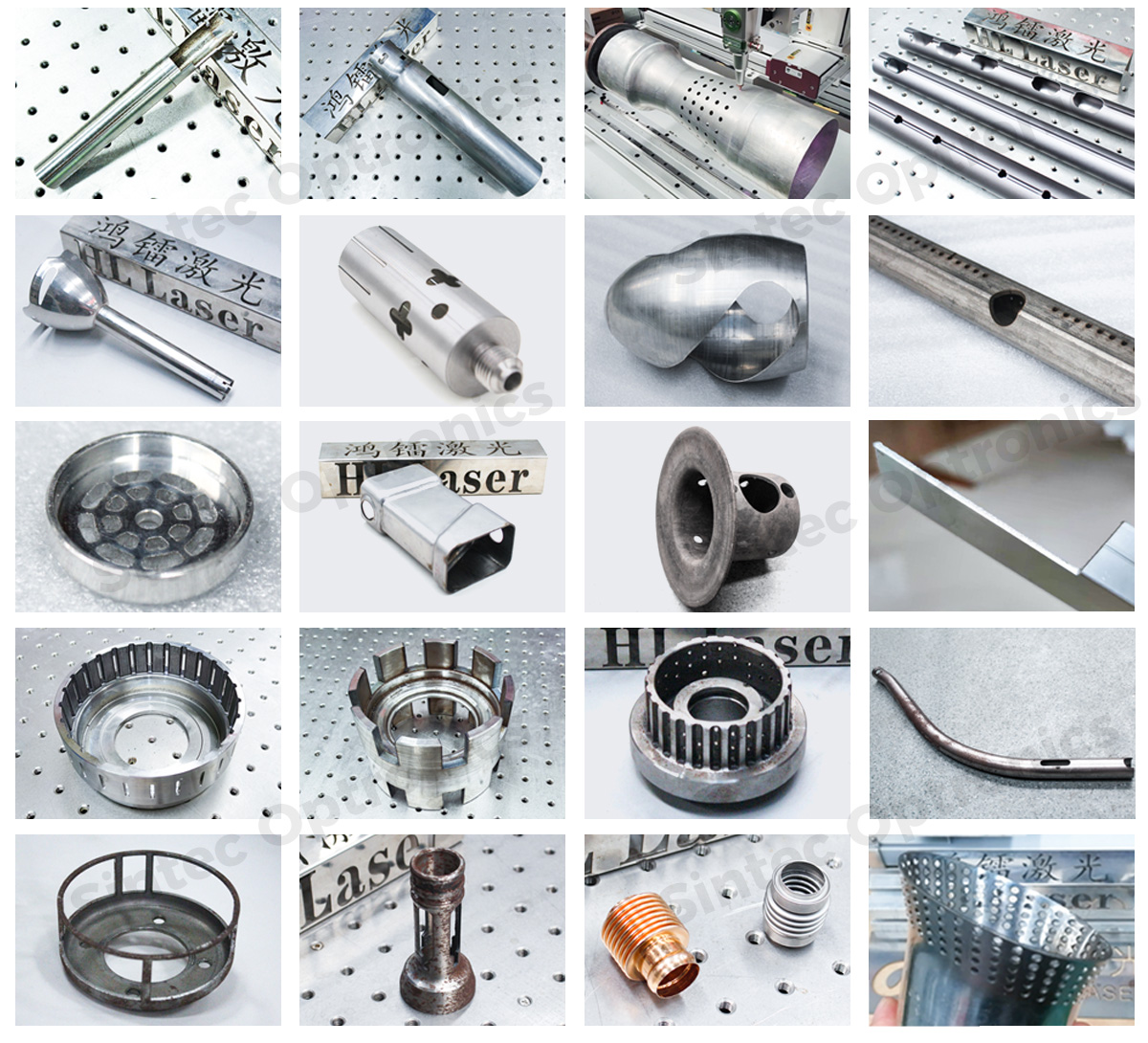

Sample display:

Ordering Guide

Model STC-XXXX-YY-AABB

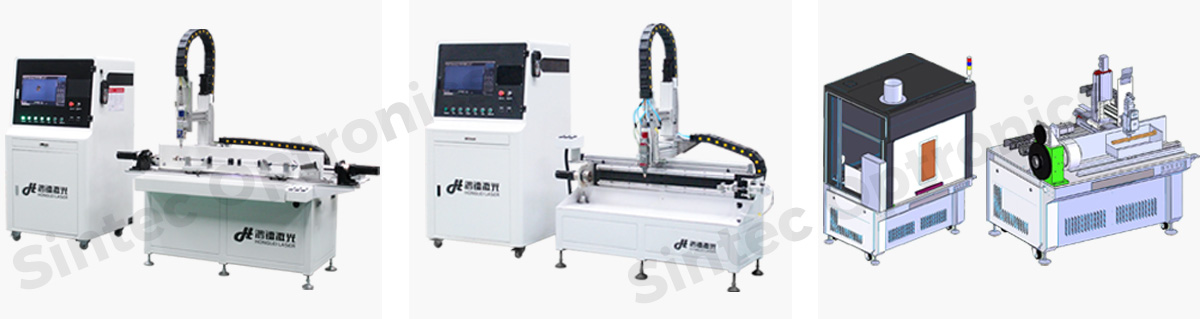

Optional:

1StandardBS

2dual workstationDS

Integrated row and dual workstation design, dual  effect linkage "fast" imagine;

Efficiency increased by 100%, purchase cost and land  occupation decreased by 50%, and can independently cut the same or different  workpieces synchronously or asynchronously without interference, making it the  king model for laser processing of small metal pipes.

3EccentricEE

Tailored tire molds, ejector pins, and eccentric  structures; It can quickly cut various irregular structural hardware components  to achieve a significant increase in efficiency, production capacity, accuracy,  and economic benefits with less floor space and lower purchasing costs.

4fully  enclosed pneumatic chuck modelsTE

Fully  enclosed sealing structure intervenes to block light and debris, protecting  operators and the environment; Fully automatic self centering pneumatic chuck,  super intelligent automatic clamping technology, four claw roller type  clamping, automatic centering, can  automatically adjust and adapt the workpiece according to the customer's pipe  size, without scratching the workpiece, without manual labor, small inertia, and can achieve high-speed  processing. It can also be equipped with claw clamping to hold multiple types  of profiles, meeting the needs of fast cutting of various small pipe parts.
