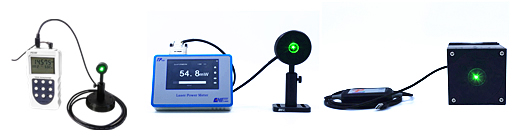

The measurement of laser power is quick and simple with our power meter. The hand held power meter is a low cost light weight alternative to bulky two-piece thermopile power meters and probes.

Online submission 1392360513 sales@SintecOptronics.cn

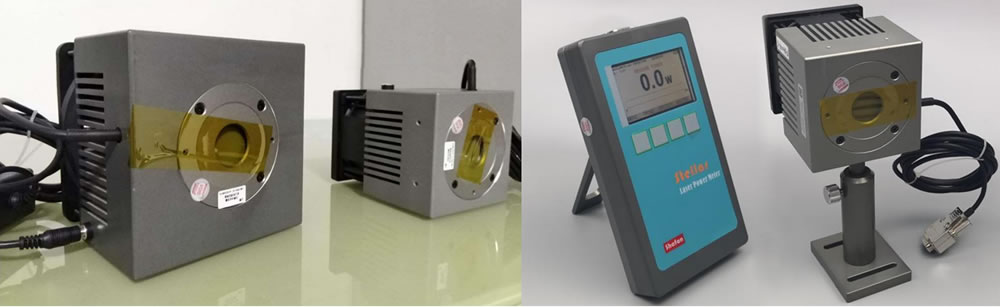

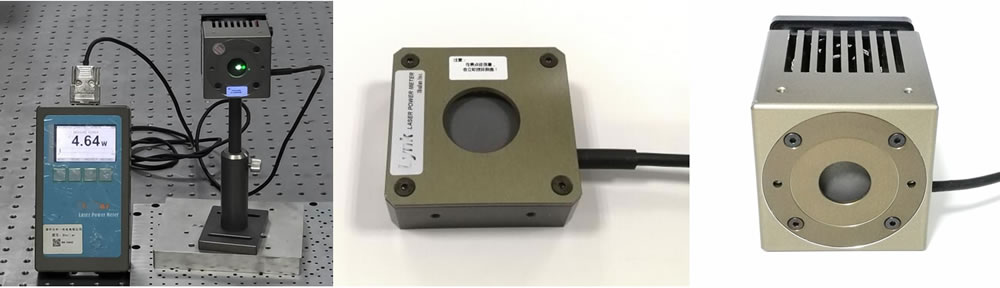

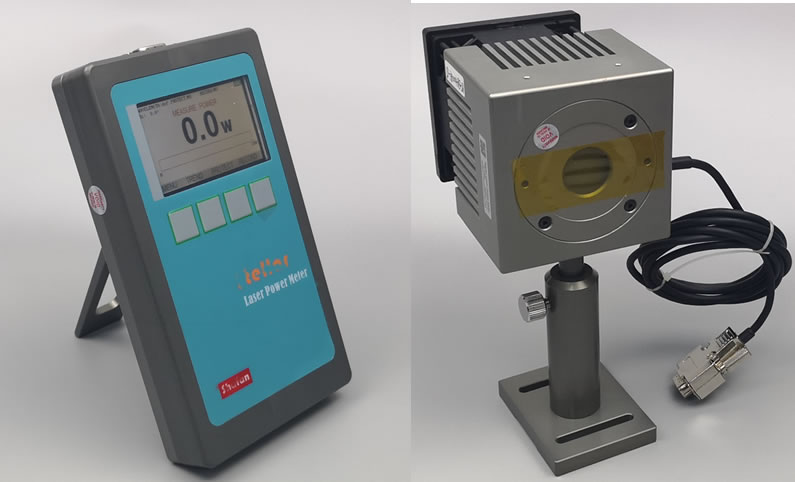

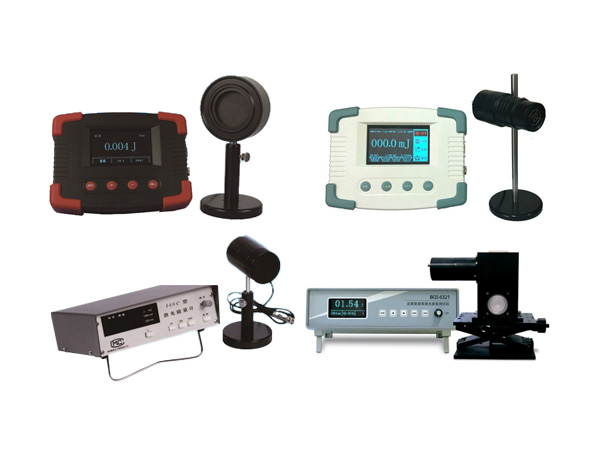

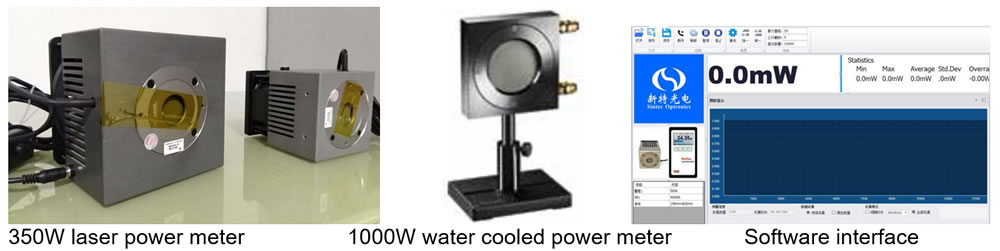

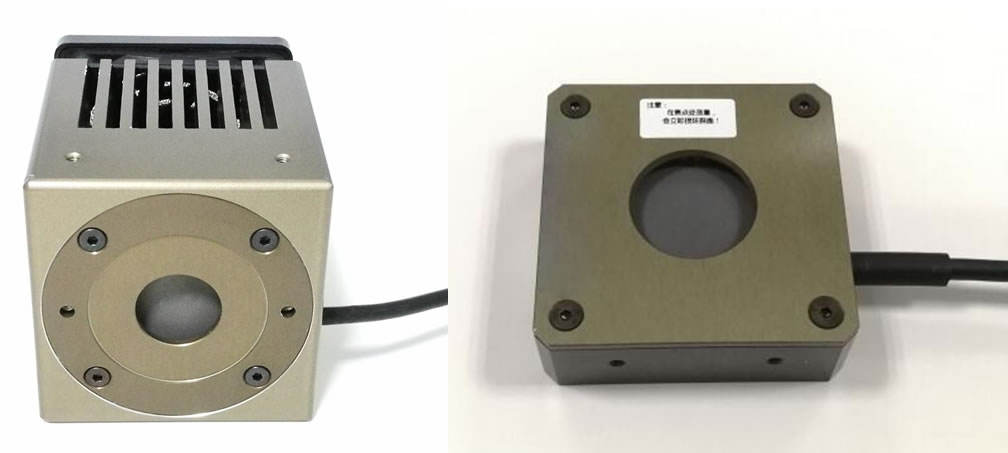

SHY Series Laser Power/energy Meters

SHY series laser power meters, with the core component of high-quality calorimetric probe as the starting point, are simple & easy to use, reliable via using the latest embedded technology design. This laser power meter with display head has a variety of specific probes to choose from, which is suitable for handheld measurement, but also suitable for online monitor of the running machines.

Probe:

Fast response (10W probe with display head 0-95% response time 1.5 seconds)
Wavelength range: 0.19-1um, NIST tracer correction, compact shape, built-in fan, and no external power supply optimized heat sink design
High load power (10W probe: continuous 10W, intermittent maximum 20W)
Square probe, easy to integrate, can be easily installed into the equipment
Optical fittings mounting thread, omnidirectional adjustment support

Display head:

High resolution color TFT screen, two-stage backlight, USB port for charging power, and data upload
Convenient after sale, short cycle
Provide standard RS232 interface output lithium rechargeable battery, power failure working time >=14 hours all metal body, light weight
No need to adjust zero (using suspension self-stabilizing zero circuit)
Automatic range switching (AutoScale)
User - defined correction coefficient, patent adjustable Ac algorithm toaster protection
Ideal partner for laser research and development (real-time monitoring power, abnormal laser shutdown)
Non-volatile data recording, up to 10,000 points high precision 12bit real-time
Power waveform diagram display, time adjustable
Easy to use menu and shortcut key mechanism
Anti-electromagnetic interference

Applications：

Portable equipment on-line measurement
Laser marking, cutting, drilling
Welding, light control, machine testing
Power monitoring control compensation

1. Low-power Laser Power Meter

Model number	SHY-TP2-HP-19	SHY-TP10-HP-25	SHY-TP10-HP-19	SHY-TP50-HP-19	SHY-TP100-HP-19	SHY-TP150-HP-19
Maximum average power	2W	10W	10W	50W	100W	150W
Minimum power	1mW	20mW	20mW	50mW	100mW	100mW
Power resolution	1mW	0.001W	0.001W	0.01W	0.01W	0.01W
Noise Equivalent power(NEP)	100uW	4mW	1mW	20mW	0.1W	0.1W
Response time	1sec	1.5sec	1sec	1.5sec	2sec	2.5sec
Power calibration uncertainty	±3%	±2%	±3%	±3%	±3%	±3%
Power linearity*	±1%	±1.5%	±1%	±1.5%	±1%	±1.5%
Aperture	19mm	25mm	19mm	19mm	19mm	19mm
Type	HPB	HPB	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Spectral range	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um
Maximum power density**	11kW/cm2 @2W	11kW/cm2 @10w	15kW/cm² @10W	11kW/cm² @40W	11kW/cm² @40W	11kW/cm² @40W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Weight	0.2kg	0.2kg	1.0kg	1.5kg	1.0kg	1.5kg
Dimension	60x60x20mm	60x60x20mm	65x65x35mm	65x65x35mm	65x65x70mm	65x65x72mm
Connector length	2.5m	2.5m	2.5m	2.5m	2.5m	2.5m

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

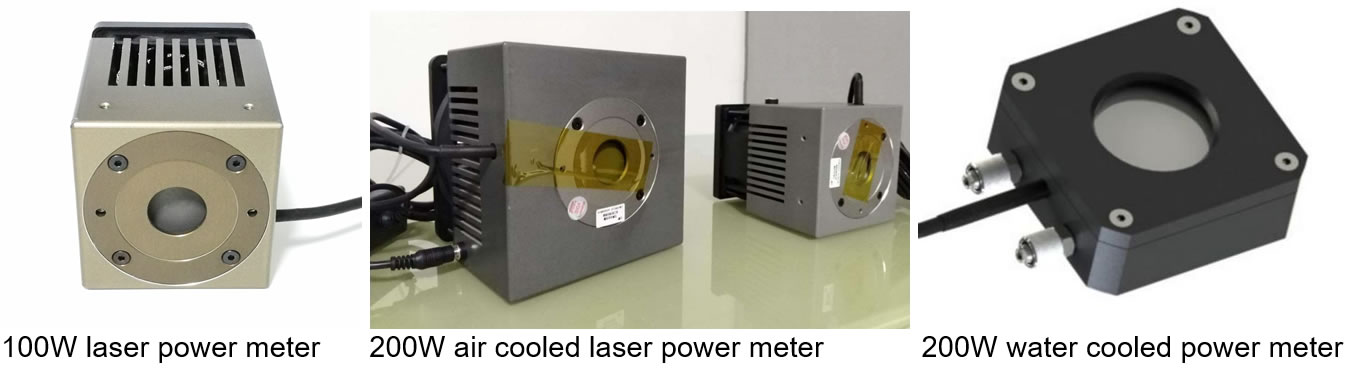

2.Medium-power Laser Power Meter

Model number	SHY-TP200-HP-25	SHY-TP300-HP-25	SHY-TP500-HP-25	SHY-TP1000-HP-25
Maximum average power	200W	300W	500W	1000W
Minimum power	0.1W	0.3W	0.5W	1W
Power resolution	0.01W	0.1W	0.1W	0.1W
Energy range	100mJ-300J	100mJ-300J
Response time	1.8sec	2sec	5sec	5sec
Power calibration uncertainty	±3%	±3%	±3%	±3%
Power linearity*	±1%	±1.5%	±1%	±1.5%
Aperture	25mm	25mm	25mm	25mm
Type	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Spectral range	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um
Maximum power density**	5kW/cm² @200W	5kW/cm² @200W	5kW/cm² @200W	5kW/cm² @200W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling
Weight	1.5kg	3.0kg	1.5kg	3.0kg
Dimension	90x90x70mm	122x122x118mm	122x122x118mm	122x122x118mm
Connector length	2.5m	2.5m	2.5m	2.5m

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

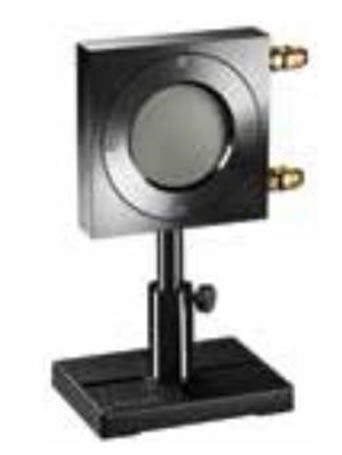

3. Kw Level Water-cooled Laser Power Meter

Model number	SHY-W10-HP-25	SHY-W20-HP-25
Maximum average power	1000W	2000W
Minimum power	10W	20W
Power resolution	1W	1W
Noise Equivalent power（NEP）	200mW	1W
Energy range	200W/500W/1000W	200W/500W/2000W
Response time	10sec	10 sec
Power calibration uncertainty	±3%	±3%
Power linearity*	±2%	±2%
Aperture	25mm	25mm
Type	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um
Spectral range	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um
Maximum power density**	500W/cm² @1000W	500W/cm² @1000W
Cooling	Water cooling	Water cooling
Water flow at full power minimum recommend	3L/min 6L/min	3L/min 6L/min
Weight	2kg	2kg
Dimension	90x90x44mm	90x90x44mm
Connector length	2.5m	2.5m

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

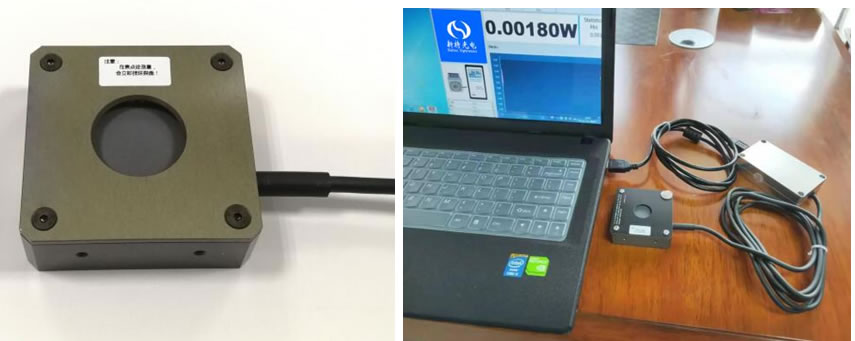

4.Serial/USB Laser Power Meter

Model number	SHY-USB-2-HP-19 SHY-RS232-2-HP-19	SHY-USB-20-HP-25 SHY-RS232-20-HP-25	SHY-USB-10-HP-25	SHY-RS232-10-HP-25	SHY-RS232-50-HP-25	SHY-RS232-100-HP-25
Max average power	2W	20W	10W	10W	50W	100W
Minimum power	2mW	20mW	20mW	20mW	50mW	80mW
Power resolution	100uW	1mW	100uW	100uW	10mW	20mW
Noise Equ. power	200uW	20mW	500uW	500uW	20mW	30mW
Response time	0.7sec	1.5sec	0.7sec	0.7sec	1.5 sec	1.5sec
Power calibration uncertainty	±3%	±3%	±3%	±3%	± 3%	±3%
Power linearity*	±1%	±1.5%	±1%	±1%	±1.5%	±1.5%
Aperture	25mm	25mm	25mm	25mm	25m	25m
Type	HPB	HPB	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Spectral range	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um
Max power density**	18 KW/cm² @2W	15KW/cm² @2W	18KW/cm² @2W	18KW/cm² @2W	11KW/cm² @2W	11KW/cm² @2W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Weight	0.2kg	0.2kg	0.2kg	0.2kg	0.2kg	0.2kg
Dimension	60x60x20mm	60x60x20mm	60x60x20mm	60x60x20mm	60x60x20mm	60x60x20mm
Connector length	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232

Model number	SHY-RS232-100-HP-19	SHY-USB-100-HP-19	SHY-USB-200-HP-25	SHY-RS232-200-HP-25	SHY-USB-W200-HP-25	SHY-RS232-W200-HP- 25
Max average power	100W	100W	200W	200W	200W	200W
Minimum power	50mW	50mW	0.2W	0.2W	0.2W	0.2W
Power resolution	10mW	10mW	10mW	10mW	0.1W	0.1W
Noise Equivalent power	20mW	20mW	20mW	20mW	200mW	200mW
Response time	1.8sec	1.8sec	2sec	2sec	1.8sec	1.8sec
Power calibration uncertainty	±3%	± 3%	± 3%	±3%	±3%	±3%
Power linearity*	±1%	±1.5%	±1%	±1.5%	±1%	±1%
Aperture	19mm	19 mm	25mm	25mm	25mm	25mm
Type	HPB	HPB	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Spectral range	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um
Max power density**	11KW/cm² @40W	11KW/cm ²@40W	4KW/cm² @200W	4KW/cm² @200W	4KW/cm² @200W	4KW/cm² @200W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling	Water cooling	Water cooling
Weight	0.70kg	0.70kg	1.5kg	1.5kg	0.2kg	0.2kg
Dimension	65x65x72mm	65x65x72mm	90x90x70mm	90x90x70mm	65x65x35mm	65x65x35mm
Connector length	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB	2.5m-RS232

Model number	SHY-RS232-350-HP-25	SHY-USB-350-HP-25	SHY-USB-500-HP-25	SHY-RS232-500-HP-25	SHY-RS232-W1000-HP-25	SHY-USB-W1000-HP-25
Maximum average power	350W	350W	500W	500W	1000W	1000W
Minimum power	0.5W	0.5W	0.5W	0.5W	10W	10W
Power resolution	100mW	100mW	100mW	100mW	1W	1W
Noise Equivalent power（NEP）	200mW	200mW	200mW	200mW	200mW	200mW
Response time	2.8sec	2.8sec	5sec	5sec	10sec	10sec
Power calibration uncertainty	±3%	±3%	±3%	±3%	±3%	±3%
Power linearity*	±1%	±1%	±1%	±1.5%	±2%	±2%
Aperture	25mm	25mm	25mm	25mm	25mm	25mm
Type	HPB	HPB	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Spectral range	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um	0.19-21um, 2.94um, 9-11um
Maximum power density**	4kW/cm2 @200W	4kW/cm2 @200W	3kW/cm2 @500W	3kW/cm2 @500W	500W/cm2 @1000W	500W/cm2 @1000W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling	Water cooling	Water cooling
Weight	2kg	2kg	2kg	2kg	2kg	2kg
Dimension, mm	122x122x118	122x122x118	122x122x118	122x122x118	90x90x44	90x90x44
Connector length	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	2.5m-USB/ 1.5m-RS232	1.5m-USB	1.5m-RS232

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

5. High Sensitivity Laser Power Meter

High sensitivity series laser power meters have many advantages like affordable, high precision, suitable for FPC cutting, drilling machine online measurement, high precision marking, solar cell equipment (scratching/ablation/back passivation/punching/etching/sintering, etc.).

Model number	SHY-RS232-12-HS-18	SHY-USB-12-HS-18
Maximum average power	12W	12W
Minimum power	1mW	1mW
Power resolution	0.1mW	0.1mW
Noise Equivalent power（NEP）	50uW	50uW
Response time	3sec	3sec
Power calibration uncertainty	±3%	±3%
Power linearity*	±1.5%	±1.5%
Aperture	18mm	18mm
Type	HS	HS
Absorption spectrum	0.19-11um	0.19- 11um
Spectral range	0.19-2.1um, 2.94um, 8-11um	0.19-2.1um,2.94um,8-11um
Maximum power density**	25kW/cm2	25kW/cm2
Cooling	Air cooling	Air cooling
Weight	0.20kg	0.20kg
Dimension	60x60x20mm	60x60x20mm
Connector length	1.5m-RS232	2.5m-USB

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

6.SHY Series Laser Energy Meter

Model number	SHY-PE10-HP-0.6J	SHY-PE10-HP-25-3J	SHY-PE10-HP-19	SHY-PE50-HP-19	SHY-PE200-HP-25	SHY-PE500-HP-25
Maximum average power	10W	10W	10W	50W	200W	500W
Minimum power	20mW	20mW	20mW	50mW	0.1W	0.5W
Power resolution	0.001W	0.001W	0.001 W	0.01 W	0.01W	0.1W
Noise Equivalent power（NEP）	1mW	1mW	1 mW	20mW	300mW	500mW
Energy range	50mJ-200J	100mJ-200J	50mJ-200J	50mJ-200J	100mJ-300J	100mJ-300J
Energy scale	0.6J/30J/200J	3J/30J/200J			3J/30J/300J	3J/30J/300J
Energy resolution	1mJ	1mJ	1mJ	1mJ	1mJ	1mJ
Power calibration uncertainty*	±3%	±3%	±3%	±3%	±3%	±3%
Aperture	25mm	25mm	19mm	19mm	25mm	25mm
Type	HPB	HPB	HPB	HPB	HPB	HPB
Absorption spectrum	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um	0.19-11um
Calibration spectral range	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um	0.19-2.1um, 2.94um, 9-11um
Maximum power density**	15kW/cm2 @10 W	15kW/cm2 @10 W	15kW/cm2 @10W	11kW/cm2 @40 W	15kW/cm2 @10 W	15kW/cm2 @10 W
Cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Weight	0.2kg	0.2 kg	1.0kg	1.5kg	2kg	2kg
Dimension	60x60x20mm	60x60x20mm	65x65x35mm	65x65x35mm	90x90x70mm	122x122x118mm
Connector length			2.5m	2.5m

* The detector is centrally illuminated at 50% of the effective surface.
** The damage threshold also depends on the power level.

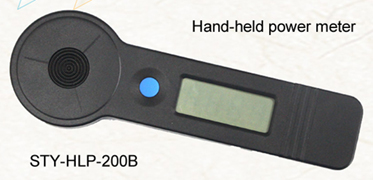

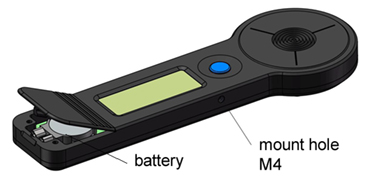

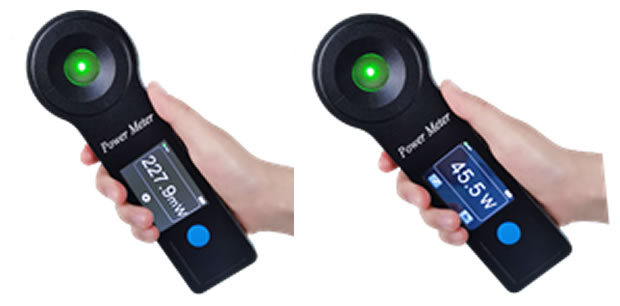

STY Series Hand-held CO2 Laser Power Meter

The hand-held laser power meter STY-HLP-200B is a CO2 laser power meter. Its measurement range is maximum 200W with the resolution 0.1W. A button battery is used as the power supply and thus it is very easy and portable used in production, QC and laboratory. A mount hole is alternatively used to be fixed instead of hand-held for better stability.

Part number	STY-HLP-200B
Range	0-200W
Resolution	0.1W
Calibrated wavelength	10.6um
Target diameter of the sensor	19mm
Battery type	2032 (3V/3.6V)
Display	4-digit LCD
Cooling method	Natural air
Dimensions	165x55x11mm
Weight	0.8kg

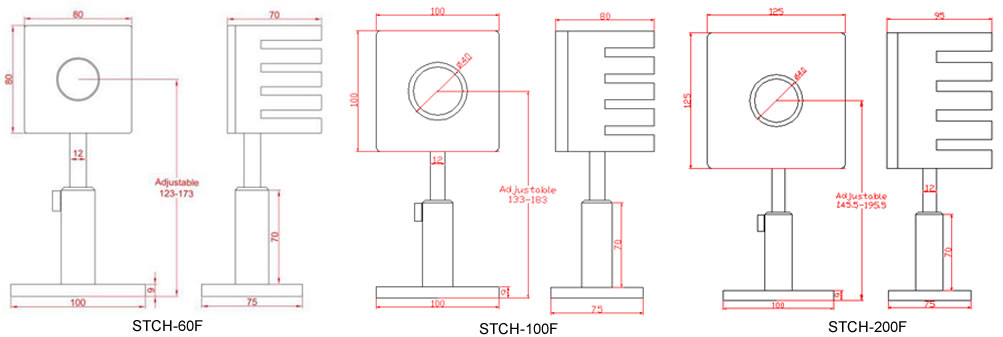

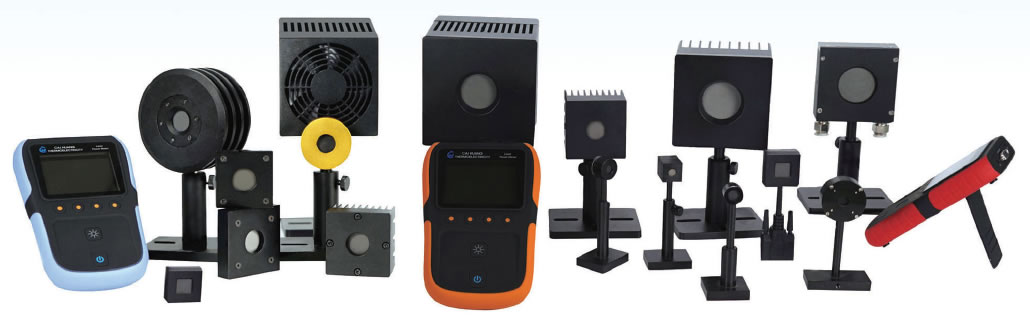

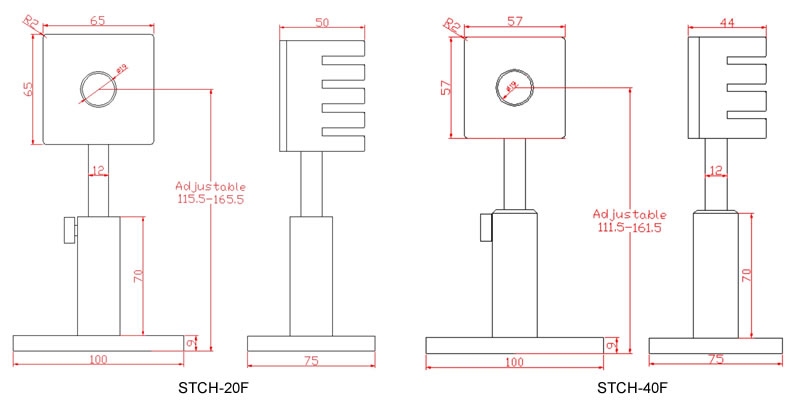

STCH Series Lasers Power Meters

A laser power meter consists of a laser power sensor (or called detector head) , display unit and relevant accessories. Our sensors can measure the laser beams at the laser wavelengths from 190nm to 25um and maximum laser power of 5000W. These power meters are used in the laser power measurement and monitoring.

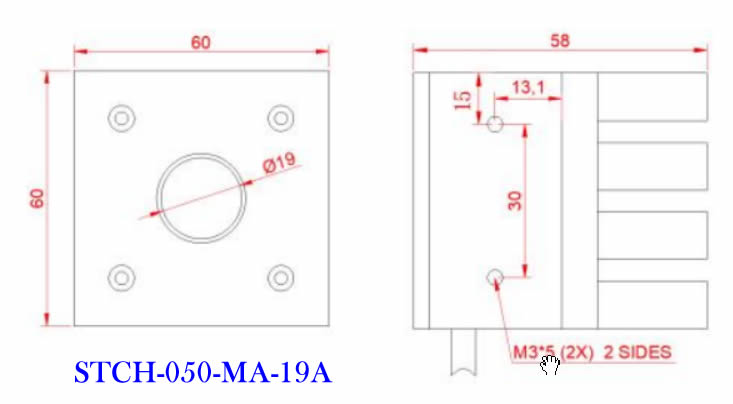

1. Laser Power Sensors & Monitors

Detectable Spectral Range : 0.19 to 25μm

The sensors and monitors are sensitive and thus can be used to monitor laser power inside lasers and laser machines for on-time monitoring. Also can be used in compact & portable laser power meters.

Customizable Specifications
≤ 50mm Detector Aperture Size
Applicable to Broadband Range of UV to Mid-Infrared
Less than 1% Measurement Uncertainty

General Specifications

Spectral range (μm)	0.19 - 25
Maximum power (W)	Reference radiator size and light spot size
Maximum detector aperture (mm)	≤ 50
Uniformity (±%)	< 1, < 3, < 5
Measurement uncertainty (±%)	< 1
Nonlinearity with power (±%)	< 1
Power accuracy (±%)	< 2.5
Detector type	MA	HQ	VG
Maximum average power density	20kW/cm²,40W,CW	0.5kW/cm²,40W,CW	0.05kW/cm²,40W,CW
Maximum energy density	0.15J/cm², 1064nm,1ns	0.25J/cm²,1064nm, 1ns	1.6J/cm²,1064nm,1ns

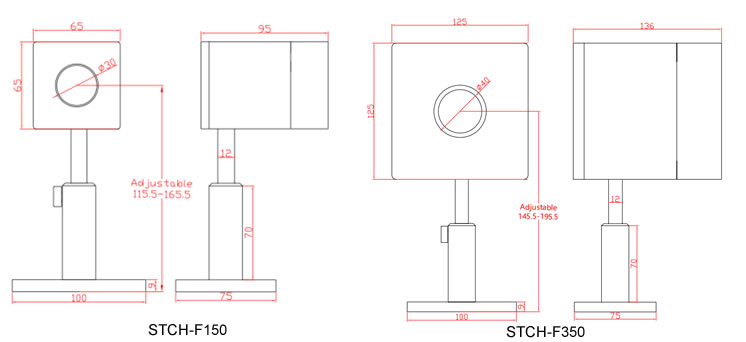

Specifications

Dimensions and types of sensor (mm)	Dimensions of heat sink (mm)	Cooling method	Response time (sec.)	Maximum detector aperture (mm)	Power range
Φ32 x 3 sensor o	38x38x29	Air-cooled	< 1	19	10mW - 10W
Φ44 x 3 sensor a	57x57x44	Air-cooled	< 1	19	10mW - 20W
Φ44 x 3 sensor a	65x65x50	Air-cooled	< 1	19	10mW - 40W
Φ44 x 3 sensor b	6 x65x95	Fan-cooled	< 1	19	10mW - 150W
Φ72 x 3 sensor c	100x100x80	Air-cooled	< 2	40	100mW - 100W
Φ72 x 3 sensor d	125x125x95	Air-cooled	< 2.5	40	100mW - 200W
Φ72 x 4 sensor e	100x100x 09	Fan-cooled	< 2.5	40	100mW - 250W
Φ72 x 5 sensor f	125x125x136	Fan-cooled	< 3.5	40	300mW - 350W

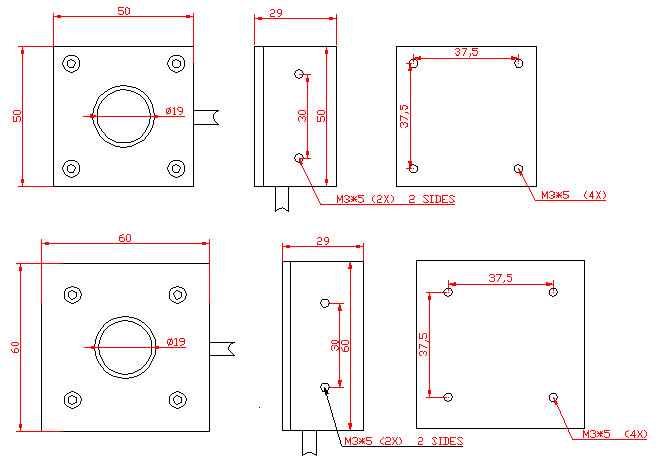

2. OEM Laser Power Sensors

The sensors can be used for online monitoring laser power in laser machining systems. Various output signals and spectrum range are available upon request.

Customizable Specifications
Detector Aperture Size ≤ 50mm
Spectral Wavelength or Spectral Range is Available
Various Signal Output Types

Part number	STCH-020-MA-19	STCH-050-MA-19	STCH-050-MA-19A
Output signal	Analog/RS232 digital/USB digital	Analog/RS232 digital/USB digital	Analog/RS232 digital/USB digital
Spectral range, μm	0.19 - 25	0.19 - 25	0.19 - 25
Minimum power, mW	10	30	30
Maximum power(W) Standalone	10	15	15 (Cont), 25 (12min), 50 (4min)
Maximum power(W) Heatsink	20	50	50
Measurement capability
Resolution, mW	0.2	0.5	0.5
Measurement uncertainty, ±%	< 1	< 1	< 1
Nonlinearity with power, ±%	< 1	< 1	< 1
Power accuracy, ±%	< 3	< 3	< 3
Response time, sec.	< 1	< 1	< 1
Detector type	MA	MA	MA
Detector aperture, mm	19	19	19
Damage threshold
Maximum average power density	20kW/cm²,10W,CW	20kW/cm²,10W,CW	20kW/cm²,10W,CW
Maximum energy density	0.15J/cm², 1064ns, 1ns	0.15J/cm², 1064ns, 1ns	0.15J/cm², 1064ns, 1ns
Physical characteristics
Dimensions, mm	50 × 50 × 29	60 × 60 × 29	60 × 60 × 58
Cooling method	Air-cooled	Air-cooled	Air-cooled
Cable length, m	1.5	1.5	1.5

3. 10mW-40W Laser Power Sensors

Air Cooled
10/19mm Detector Aperture Size
Spectral Wavelength or Spectral Range is Available
Single Pulse Energy Test Function
Connect the USB Output Interface with PC Port
Up to 80W in 1 Min

Part number	STCH-20F-MA-10	STCH-20F-HQ-10	STCH-20F-VG-10	STCH-40F-MA-19	STCH-40F-HQ-19	STCH-40F-VG-19
Spectral range, μm	0.19 - 25	0.19 - 25	0.19 - 25	0.19 - 25	0.19 - 25	0.19 - 25
Power range	10mW - 20W (60W)	10mW - 20W (60W)	10mW - 20W (60W)	10mW - 40W (80W)	10mW - 40W (80W)	10mW - 40W (80W)
Intermittent measurement power	20W (Cont.), 40W (3min), 60W (2min)	20W (Cont.), 40W (3min), 60W (2min)	20W (Cont.), 40W (3min), 60W (2min)	40W (Cont.), 60W (3min), 80W (2min)	40W (Cont.), 60W (3min), 80W (2min)	40W (Cont.), 60W (3min), 80W (2min)
Resolution	0.5	0.5	0.5	0.5	0.5	0.5
Measurement uncertainty ±%	< 1	< 1	< 1	< 1	< 1	< 1
Nonlinearity with power±%	< 1	< 1	< 1	< 1	< 1	< 1
Power accuracy ±%	< 3	< 3	< 3	< 3	< 3	< 3
Response time, sec.	< 1	< 1.5	< 3	< 1	< 1.5	< 3
Detector type	MA	HQ	VG	MA	HQ	VG
Detector aperture(mm)	10 (19)	10 (19)	10 (19)	19	19	19
Maximum average power density	20kW/cm², 10W, CW	0.5kW/cm², 10W, CW	0.05kW/cm², 10W, CW	20kW/cm², 10W, CW	0.5kW/cm², 10W, CW	0.05kW/cm², 10W, CW
Maximum energy density	0.15J/cm², 1064nm, 1ns	0.25J/cm², 1064nm, 1ns	1.6J/cm², 1064nm, 1ns	0.15J/cm², 1064nm, 1ns	0.25J/cm², 1064nm, 1ns	1.6J/cm², 1064nm, 1ns
Dimensions（mm）	57 x 57 x 44	57 x 57 x 44	57 x 57 x 44	65 x 65 x 50	65 x 65 x 50	65 x 65 x 50
Cooling method	Air Cooled	Air Cooled	Air Cooled	Air Cooled	Air Cooled	Air Cooled
Cable type	DB-9M	DB-9M	DB-9M	DB-9M	DB-9M	DB-9M
Cable length（m）	1.5	1.5	1.5	1.5	1.5	1.5

4. 100mW-200W Laser Power Sensors

Air Cooled
40mm Detector Aperture Size
Spectral Wavelength or Spectral Range is Available
Single Pulse Energy Test Function
Connect the USB Output Interface with PC Port
UP to 400W in 1 Min

Part number	STCH-60F-CA-30	STCH-100F-CA-40	STCH-200F-CA-40
Spectral range, μm	0.19 – 25	0.19 – 25	0.19 – 25
Power range	50mW - 60W (100W)	100mW - 100W (200W)	100mW – 200W(400W)
Intermittent measurement power	60W (cont.) 80W (8min) 100W (3min)	100W (cont.) 150W (3min) 200W (1min)	200W (cont.) 300W (2min) 400W (1min)
Resolution	3.5	3	10
Measurement uncertainty, ±%	< 1	< 1	< 1
Nonlinearity with power, ±%	< 1	< 1	< 1
Power accuracy, ±%	< 3	< 3	< 3
Response time, sec	< 2	< 2	< 2.5
Detector type	CA	CA	CA
Detector aperture, mm	30	40	40
Maximum average power Density	20kW/cm², 10W, CW	20kW/cm², 10W, CW	20kW/cm2, 40W, CW
Maximum energy density	0.3J/cm², 1064nm, 1ns	0.3J/cm², 1064nm, 1ns	0.3J/cm2, 1064nm, 1ns
Dimensions, mm	80 × 80 × 70	100 × 100 × 80	125 × 125 × 95
Cooling method	Air Cooled	Air Cooled	Air Cooled
Cable type	DB-9M	DB-9M	DB-9M
Cable length（m）	1.5	1.5	1.5

5. 300mW-350W Fan-Cooled Laser Power Sensors

Fan Cooled
30/40mm Detector Aperture Size
Spectral Wavelength or Spectral Range is Available
Single Pulse Energy Test Function
Connect the USB Output Interface with PC Port
UP to 600W in 1 Min

Part number	STCH-F150-CA-30	STCH-F250-CA-40	STCH-F350-CA-40
Spectral range, μm	0.19 - 25	0.19 - 25	0.19 - 25
Power range	50mW - 150W (300W)	100mW - 250W (400W)	300mW - 350W (600W)
Intermittent measurement power	150W (cont.) 200W (3min) 300W (1min)	250W (cont.) 300W (2min) 400W (1min)	350W (cont.) 500W (2min) 600W (1min)
Resolution, mW	5	10	20
Measurement uncertainty, ±%	< 1	< 1	< 1
Nonlinearity with power, ±%	< 1	< 1	< 1
Power accuracy,±%	< 3	< 3	< 3
Response time, sec	< 1	< 2.5	< 3.5
Detector type	CA	CA	CA
Detector aperture, mm	30	40	40
Maximum average power density	20kW/cm², 10W, CW	20kW/cm², 10W, CW	20kW/cm², 10W, CW
Maximum energy density	0.3J/cm², 1064nm, 1ns	0.3J/cm², 1064nm, 1ns	0.3J/cm², 1064nm, 1ns
Dimensions, mm	65 × 65 × 95	100 × 100 × 109	125 × 125 × 136
Cooling method	Fan Cooled	Fan Cooled	Fan Cooled
Cable type	DB-9M	DB-9M	DB-9M
Cable length, m	1.5	1.5	1.5

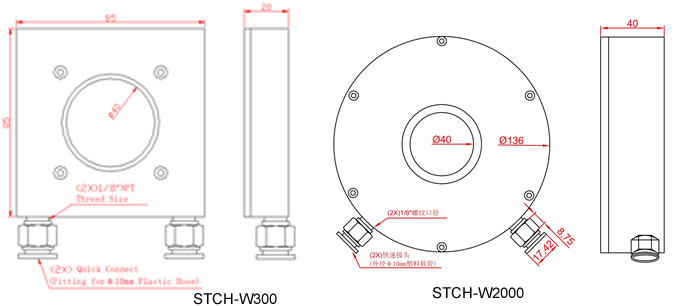

6. 200mW-2000W Laser Power Sensor

Water Cooled
19/40mm Detector Aperture Size
Spectral Wavelength or Spectral Range is Available
Single Pulse Energy Test Function
Connect the USB Output Interface with PC Port
UP to 2000W

Model	STCH-W150-CA-19	STCH-W300-CA-40	STCH-W500-CA-40	STCH-W1000-CA-40	STCH-W2000-CA-40
Spectral range, μm	0.19 - 25	0.19 - 25	0.19 - 25	0.19 - 25	0.19 - 25
Power range	0.2 - 150	0.3 - 300	0.5 - 500	2 - 1000	5 - 2000
Resolution, mW	10	15	20	100	200
Measurement uncertainty, ±%	< 1	< 1	< 1	< 1	< 1
Nonlinearity with power, ±%	< 1	< 1	< 1.5	< 2	< 2
Power accuracy,±%	< 3	< 3	< 3	< 3	< 3.5
Response time, sec	< 1	< 2.5	< 3	< 3	< 3
Detector type	CA	CA	CA	CA	CA
Detector aperture, mm	19	40	40	40	40
Maximum average power density	20kW/cm2, 10W, CW	20kW/cm2, 10W, CW	20kW/cm2, 10W, CW	20kW/cm2, 10W, CW	20kW/cm2, 10W, CW
Maximum energy density	0.3J/cm2, 1064nm, 1ns	0.3J/cm2, 1064nm, 1ns	0.3J/cm2, 1064nm, 1ns	0.3J/cm2, 1064nm, 1ns	0.3J/cm2, 1064nm, 1ns
Dimensions, mm	50 × 50 × 20	85 × 85 × 20	85 × 85 × 35	Ф110 × 35	Ф136 × 40
Cooling method	Water Cooled	Water Cooled	Water Cooled	Water Cooled	Water Cooled
Cooling water flow, L/min	2 - 10	2 - 10	3 - 10	3.5 - 10	4.5 - 10
Cable type	DB-9M	DB-9M	DB-9M	DB-9M	DB-9M
Cable length, m	1.5	1.5	1.5	1.5	1.5

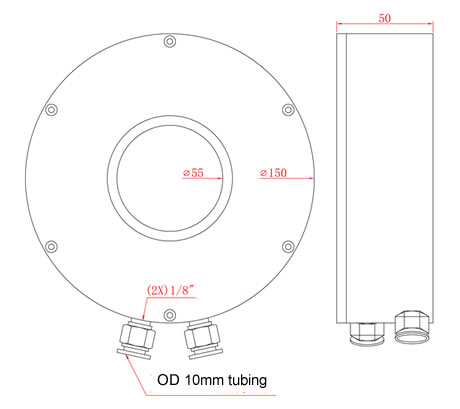

7. 20W-5000W Laser Power Sensor

The water-cooled laser power meter probe is suitable for measuring continuous and pulsed lasers with high power density. The maximum measuring power under the water-cooled model is 5000W and has a large detection aperture of 55mm.

Water Cooled
55mm Detector Aperture Size
Spectral Wavelength or Spectral Range is Available
Single Pulse Energy Test Function
Connect the USB Output Interface with PC Port
UP to 5000W

Part number	STCH-W5000-CA-55
Spectral range（μm）	0.19 - 25
Power range（W）	20 - 5000
Measurement Capability
Resolution（W）	1
Measurement uncertainty（±%）	< 1
Nonliterary with power（±%）	< 2
Power accuracy（±%）	< 4
Response time（sec.）	< 3
Detector type	CA
Detector aperture（mm）	55
Damage threshold
Maximum average power density	20kW/cm2 ,10W, CW
Maximum energy density	0.3J/cm2, 1064nm, 1ns
Physical characteristics
Dimensions（mm）	Φ150 × 50
Cooling method	Water Cooled
Cooling water flow（L/min）	5 - 10
Cable type	DB-9M
Cable length（m）	1.5

8. Universal Laser Power Display Unit

The display unit STCH-P is compatible with all laser power sensors. It is the universal meter with professional edition, has the functions of "Digital display", "Data statistics" and "Data storage", and it can be connected to a PC via USB. The user software is configured. And acquiring and exporting data can be supported.

Measurement Accuracy ± 0.25%
Electromagnetic Interference Shielding
Single Pulse Energy Testing
Statistical Function and Long-term Stability Testing
Up to 250,000 Measurement Data Stored
Connecting to PC Via USB, Client Software Configured, Acquiring and Exporting Data Supported

Model	STCH-P
Digital display	●
Data statistic	●
Data storage	●
Connecting to PC via USB	●
PC software	●
Data acquiring and exporting	●
Single pulse energy testing	●
Display format	Numerical, Columnar graph, Chart
Accuracy (±%)	0.25
Display type	240(RGB) × 320 pixels , TFT-LCD
Display dimensions	65.0mm x 48.8mm(2.56" x 1.92")
ADC sampling frequency	20 Hz
AD converter	24 bit
Connector type	DB-9M
Digital interface	USB 2.0
Battery	Li-Polymer, 3.7 V,4050 mAh
Battery life	＞ 40 h
Charger / DC input	5 V / 2 A
Dimensions(L x W x H)	165mm x 108mm x 25mm
Weight	< 0.25 kg
Operating temperature	0 to 40 °C
Storage temperature	-10 to 45 °C

Remarks:

All above sensors can be used as sensors to measure laser power, also can be used as beam dumps. However, if you just need a beam dump and not measure laser power, please just buy the beam dump at lower prices. The part number of the beam dump is ended with BD at the corresponding sensor. For example, the sensor is STCH-W5000-CA-55 and the corresponding beam dump is STCH-W5000-CA-55-BD.
A complete laser power meter may be a sensor + a display unit, or a sensor + a USB output (the USB output can be connected to PC). All the display unit can be connected to PC.
All the accessories such as sensor supports are optional.
We can custom-design and -make the sensors and powermeters according to your specific requirements and please contact us for more discussions.

STC Series Laser Power Meters

Laser power meter is used to measure laser power and power stability. We have designed several laser power measurement instruments with the features of accuracy testing, easy operation, etc., which could fully meet customer’s practical needs of laser power and power stability measurement. They are widely used in the research, teaching, medical science, industry and other fields.

	Product	Part number	Power range	Main features
Thermopile Laser Power Meter	STC-TS series (Wide Range)	STC-TS2+TP100	2mW-2W	1.Wavelength range: 0.19 -20µm 2. Damage threshold: 15kW/cm2 3. Power measurement range:2mW-15W 4. Sensitivity diameter: 14mm 5. Minimum measuring precision:0.1mW
		STC-TS5+TP100	5mW-5W
		STC-TS15+TP100	10mW-15W
		STC-TS35+TP100	10mW-35W	1. Wavelength range: 0.19 -25µm 2. Damage threshold: 40kW/cm2 3. Power measurement range: 10mW-50W 4. Sensitivity diameter: 22mm 5. Minimum measuring precision: 0.001W
		STC-TS50+TP100	10mW-50W
		STC-TS100+TP100	0.5W-100W	1. Wavelength range: 0.19 -20µm 2. Damage threshold: 45kW/cm2 3. Power measurement range: 0.5W-100W 4. Sensitivity diameter: 25mm 5. Minimum measuring precision: 0.001W

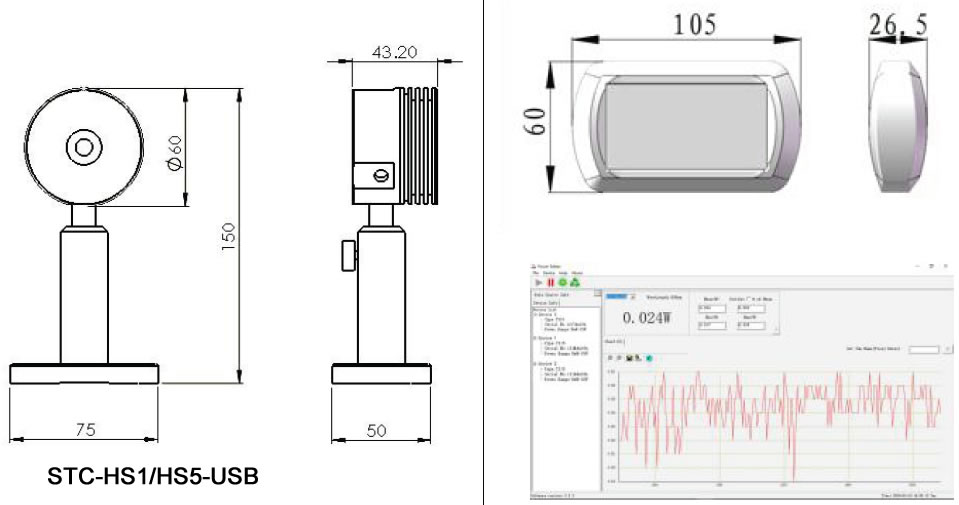

	STC-HS series (High Precision)	STC-HS1+TP100	100µW-1W	1. Wavelength range: 0.19 -15µm 2. Damage threshold: 1.5kW/cm2 3. Power measurement range: 100µW-5W 4. Sensitivity diameter: 8.5mm 5. Minimum measuring precision: 0.01mW
	STC-HS series (High Precision)	STC-HS5+TP100	500µW-5W
	Hand-held series	STC-HP2	10mW-20W	1.Wavelength range: 0.19-25µm 2.Damage threshold: 40kW/cm2 3.Powe measurement range: 10mW-50W 4.Sensitivity dia.: 22mm
	Hand-held series	STC-HP5	0.5W-50W
	USB series (multi-channel)	STC-PD100-350-USB STC-PD1000-350-USB STC-PD100-350T-USB STC-PD1000-350T-USB STC-PD20-200-USB STC-PD1000-200-USB STC-PD20-200T-USB STC-PD1000-200T-USB PD3000-350-USB	1nW-100mW 1nw-1W 1nW-100mW 1nw-1W 1nw-20mW 1nw-1W 1nw-20mW 1nw-1W 1uW-3W	1. Wavelength range：0.19 -25µm 2. Power range: 1µW-200W 3. Single channel/ multiple channel power measurement 4. PC upper computer software display measurement 5. RS232, RS422 or other communication interface can be customized

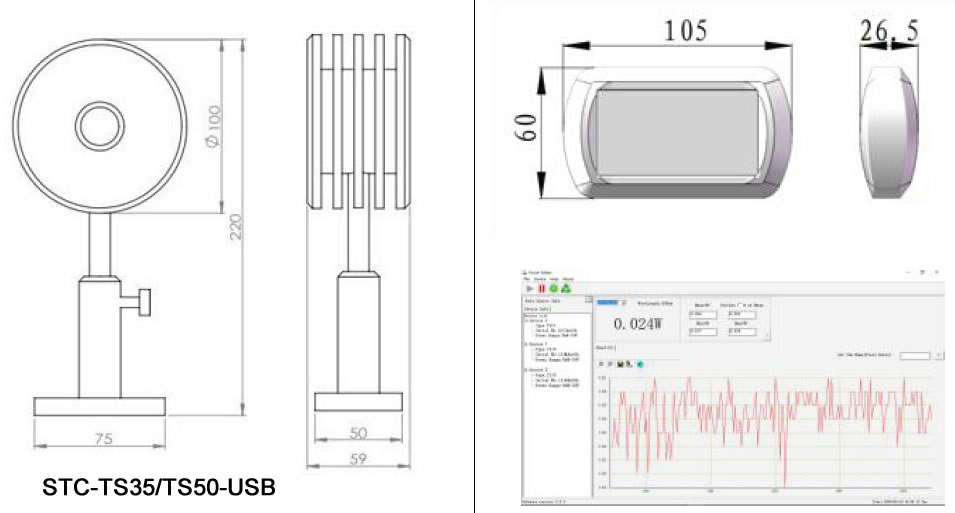

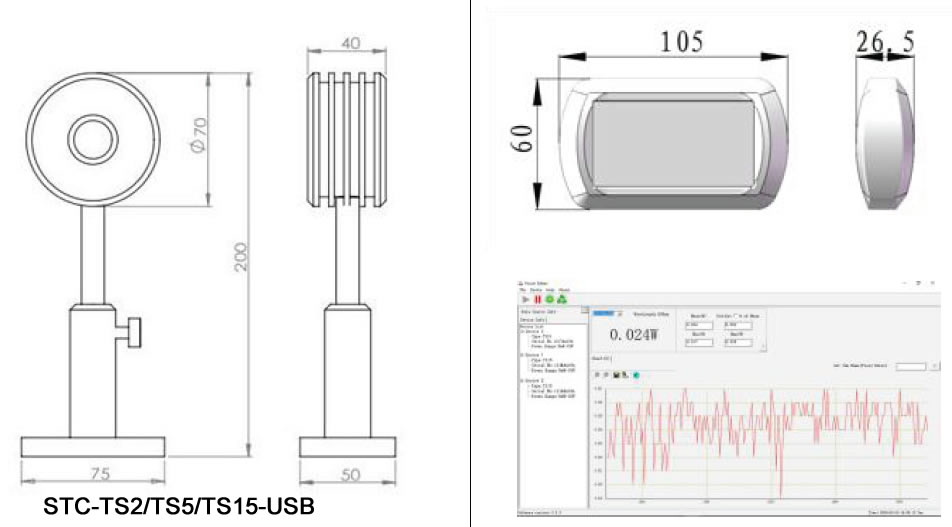

	USB series (multi-channel)	STC-TS2/ TS5/ TS15-USB STC-TS35/ TS50-USB STC-TS100-USB STC-HS1/ HS5-USB	100µW-100W

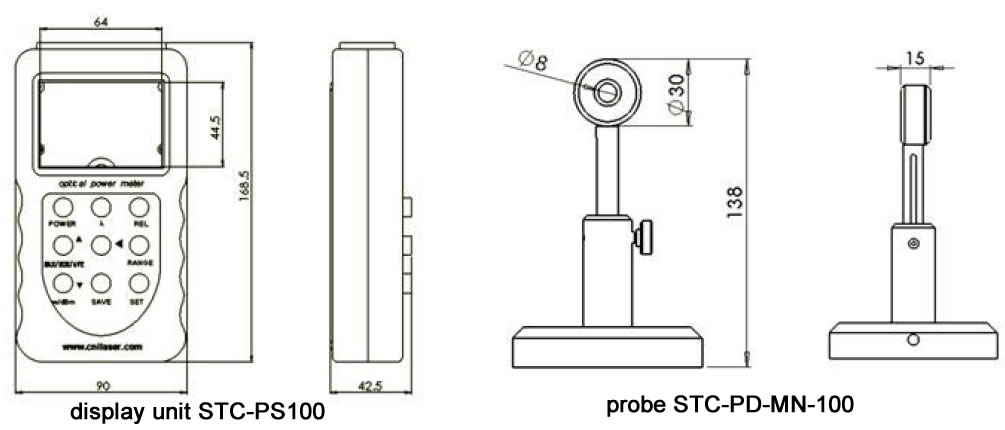

Photoelectric Laser Power Meter	STC-PS100 series (High Precision)	STC-PS100	2nW-100mW	1. Wavelength range: 320-1100nm 2. High precision: ±2% 3. Resolution: 2nW 4. Minimum measuring precision: 0.001nW

1. STC-TS+TP100 Series Laser Power Meter (2mW-15W)

Wavelength range: 0.19 -20µm
Damage threshold: 15kW/cm2
Power measurement range: 2mW-15W
Sensitivity diameter: 14mm
Minimum measuring precision: 0.1mW
SMA905/FC fiber switch connector (Optional)

Part number	STC-TS2+TP100	STC-TS5+TP100	STC-TS15+TP100
Header Model	STC-TP100	STC-TP100	STC-TP100
Probe Model	STC-TS2	STC-TS5	STC-TS15
Power Range	2 mW - 2 W	5 mW - 5 W	10 mW - 15 W
Sensitive Diameter	14 mm	14 mm	14 mm
Continuous Measurement Time (<5W)	Unlimited (<2W)	Unlimited	Unlimited
Continuous Measurement Time (5-15W)	/	/	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	15 kW/cm2
Sensitivity	2 mW	5 mW	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Overall Weight	1.454 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

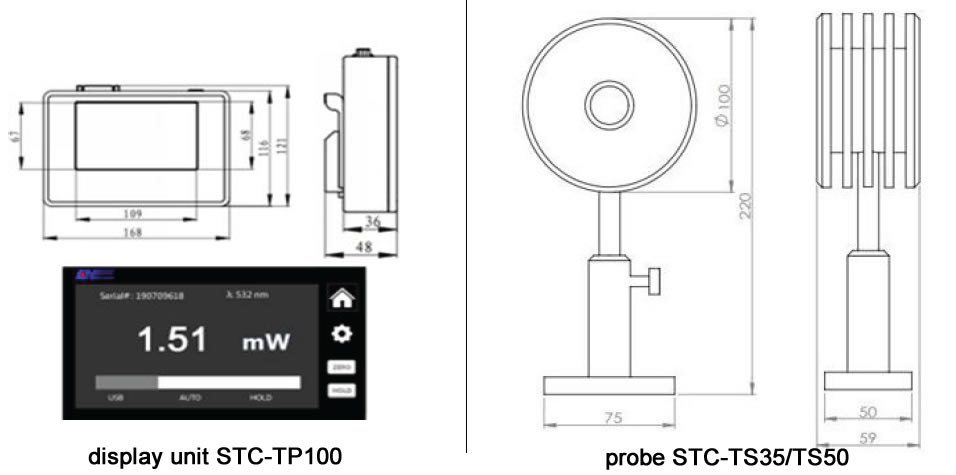

2. STC-TS+TP100 Series Laser Power Meter (10mW-50W)

Wavelength range: 0.19 -25µm
Damage threshold: 40kW/cm2
Power measurement range: 10mW-50W
Sensitivity diameter: 22mm
Minimum measuring precision: 0.001W
SMA905/FC fiber switch connector (Optional)

Part Number	STC-TS35+TP100	STC-TS50+TP100
Header Model	STC-TP100	STC-TP100
Probe Model	STC-TS35	STC-TS50
Power Range	10 mW - 35 W	10 mW - 50 W
Sensitive Diameter	22 mm	22 mm
Continuous Measurement Time (<10 W)	Unlimited	Unlimited
Continuous Measurement Time (10-50W)	≤5 min (10-35W)	≤5 min (10-50W)
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-25 μm
Max. Average Power Density	40 kW/cm2
Sensitivity	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Overall Weight	1.926 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

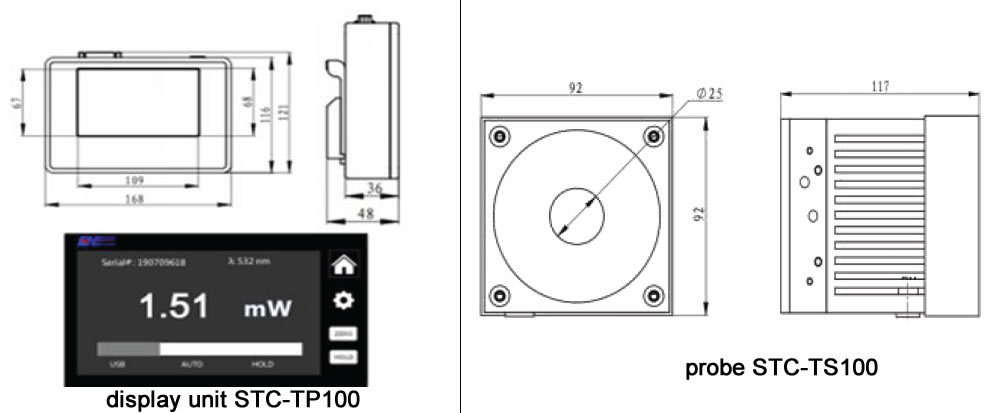

3. STC-TS+TP100 Series Laser Power Meter (0.5W-100W)

Wavelength range: 0.19 -20µm
Damage threshold: 45kW/cm2
Power measurement range: 0.5W-100W
Sensitivity diameter: 25mm
Minimum measuring precision: 0.001W

Part Number	STC-TS100+TP100
Header Model	STC-TP100
Probe Model	STC-TS100
Power Range	0.5 W - 100 W
Sensitive Diameter	25 mm
Continuous Measurement Time (<80 W)	2 h
Continuous Measurement Time (80-100 W)	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	45 kW/cm2
Sensitivity	0.1 W
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<7 sec.
Linearity	±1%
Power Supply	18650 (2 batteries)
Cooling Method	Fan cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

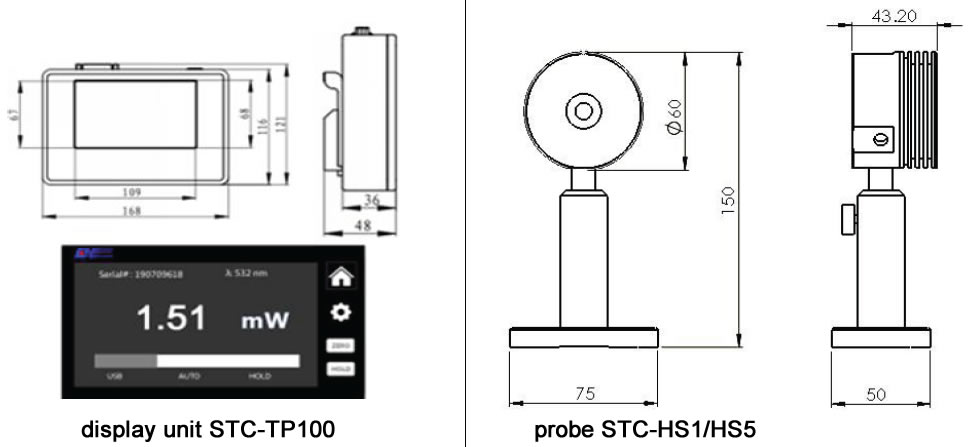

4. STC-HS+TP100 Series Laser Power Meter (100uW-5W)

Wavelength range: 0.19 -15µm
Damage threshold: 1.5kW/cm2
Power measurement range: 100µW-5W
Sensitivity diameter: 8.5mm
Minimum measuring precision: 0.01mW
SMA905 fiber switch connector (Optional)

Part Number	STC-HS1+TP100	STC-HS5+TP100
Header Model	STC-TP100	STC-TP100
Probe Model	STC-HS1	STC-HS5
Power Range	100µW - 1 W	500µW - 5 W
Sensitive Diameter	8.5 mm	8.5 mm
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-15 μm
Max. Average Power Density	1.5 kW/cm2
Sensitivity	100µW	500µW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±0.5%
Power Supply	18650 (2 batteries)
Overall Weight	1.434 kg
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

5. STC-TS-USB Series Laser Power Meter (2mW-15W)

Wavelength range: 0.19 -20µm
Power measurement range: 2mW-15W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Model	STC-TS2-USB	STC-TS5-USB	STC-TS15-USB
Power Range	2 mW - 2 W	5 mW - 5 W	10 mW - 15 W
Sensitive Diameter	14 mm	14 mm	14 mm
Continuous Measurement Time (<5W)	Unlimited (<2W)	Unlimited	Unlimited
Continuous Measurement Time (5-15W)	/	/	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	15 kW/cm2
Sensitivity	2 mW	5 mW	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

6. STC-TS-USB Series Laser Power Meter (10mW-50W)

Wavelength range: 0.19 -25µm
Power measurement range: 10mW-50W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Model	STC-TS35-USB	STC-TS50-USB
Power Range	10 mW - 35 W	10 mW - 50 W
Sensitive Diameter	22 mm	22 mm
Continuous Measurement Time (<10 W)	Unlimited	Unlimited
Continuous Measurement Time (10-50W)	≤5 min (10-35W)	≤5 min (10-50W)
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-25 μm
Max. Average Power Density	40 kW/cm2
Sensitivity	10 mW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

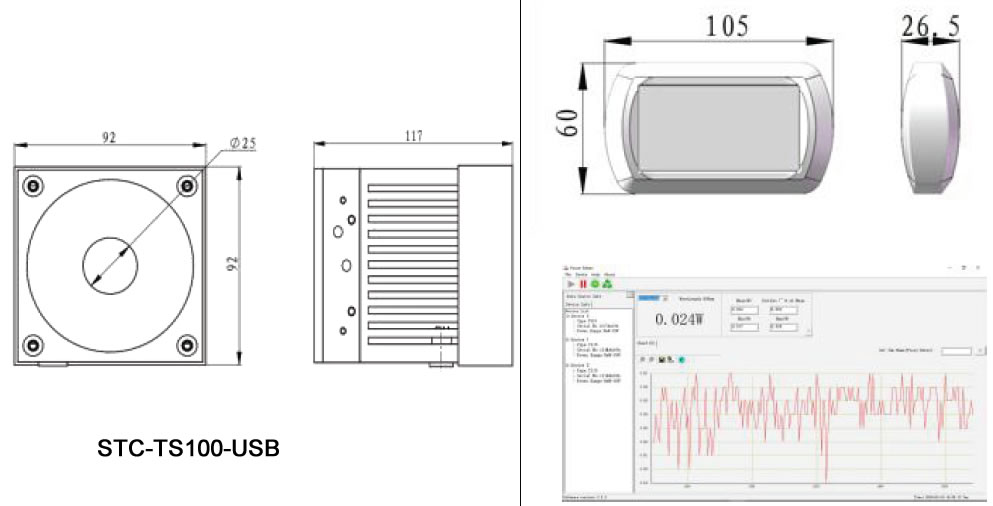

7. STC-TS-USB Series Laser Power Meter (0.5W-100W)

Wavelength range: 0.19 -20µm
Power measurement range: 0.5W-100W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Part Number	STC-TS100-USB
Power Range	0.5 W - 100 W
Sensitive Diameter	25 mm
Continuous Measurement Time (<80 W)	2 h
Continuous Measurement Time (80-100 W)	≤8 min
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-20 μm
Max. Average Power Density	45 kW/cm2
Sensitivity	0.1 W
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<7 sec.
Linearity	±1%
Cooling Method	Fan cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

8. STC-HS-USB Series Laser Power Meter (100uW-5W)

Wavelength range: 0.19 -15µm
Power measurement range: 100µW-5W
Single channel/ multi-channel power measurement
PC upper computer software display measurement

Part Number	STC-HS1-USB	STC-HS5-USB
Probe Model	STC-HS1-USB	STC-HS5-USB
Power Range	100µW - 1 W	500µW - 5 W
Sensitive Diameter	8.5 mm	8.5 mm
Probe Coating Film	Broadband coating
Probe Material	Thermopile
Wavelength Range	0.19-15 μm
Max. Average Power Density	1.5 kW/cm2
Sensitivity	100µW	500µW
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	<1 sec.
Linearity	±0.5%
Cooling Method	Air cooling
Computer Interface	USB 1.1 and USB 2.0
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)

9. STC-PS100 High Precision Photoelectric Laser Power Meter

Wavelength range: 320-1100 nm
High precision: ±2%
Resolution: 2nW
Minimum measuring precision: 0.001nW

Part Number	STC-PS100
Detector Model	STC-PD-MN-100
Power Range	2nW -100mW
Active Area Diameter	8mm
Receiving Element	Si Photo diode
Wavelength Range	320-1100 nm
Measurement Display	nW/ µW/ mW/ dBm/ dB
Calibration Uncertainty (k=2)	±2%
Response Time (0-90%)	0.2sec.
Total Weight	0.8kg
Instrument Power	100-240 VAC, 50/60 Hz, DC 9V-1.4A
Temperature (Operating)	5℃-45℃ (41℉-113℉)
Temperature (Storage)	-20℃-70℃ (-4℉-158℉)

10. Hand-held Laser Power Meter

Features:

Wavelength range: 0.19 -25µm
Power range: 10mW-2W, 0.5-50W
Active area diameter: 22mm

Model	STC-HP2	STC-HP50
Power Range	10mW - 2 W	0.5W - 50 W
Active Area Diameter	22 mm	22 mm
Wavelength Range	0.19-25 μm	0.19-25 μm
Max. Average Power Density	15 kW/cm2	40 kW/cm2
Uncertainty (k=2)	±2%	±2%
Linearity	±1%	±1%
Cooling Method	Air cooling	Air cooling
Temperature (Operating)	5°C - 45°C (41°F - 113°F)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)	-20°C - 70°C (-4°F - 158°F)

ST Series Laser Power Meters

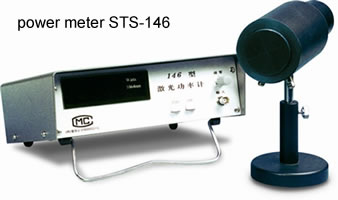

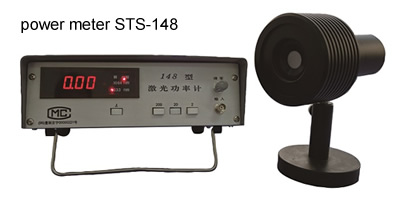

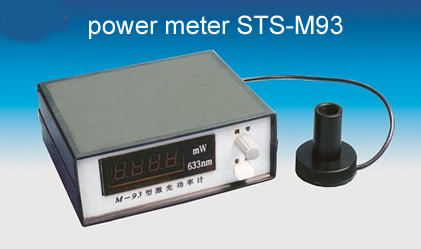

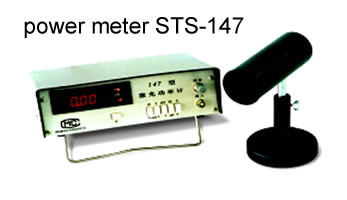

Model	STS-146	STS-147	STS-148	STS-M92A	STS-M92B	STS-M92C	STS-M93
Range	200W 2000W	2uW- 20W	2W-200W 2mW-200mW	0.2W- 20W	2W-50W	2W- 200W	20mW 200mW
Resolution	0.1W	1nW	1064nm:1mW 633nm:1uW	0.1mW	1mW	1mW	0.01mW
Sensor diameter	20mm			18mm	18mm	25mm	10mm
Wavelength	400-1100nm			190nm-25um			400-1100nm
Calibration @ wavelength	1064nm	633nm	1064nm 633nm	10.6um			633nm
Max power density	15kW/cm2			350W/cm2
Max energy density	70J/ cm2
Display	3.5-digit LED
Un-stability	5%
Cooling	water	air				water	air
application	High-power laser	Low-power laser	Medium laser	CO2 laser			Low-power laser
