Thermal Imager Modules

Keywords: Thermal Imager. hand-held, rangefinder, sniper

Jul 02, 2020 View: 893 Data Sheet

STIR-2125 Cooled Thermal Imager STIR-2125 is composed of Three-FOVs MWIR lens infrared detectors image processing circuit etc. It can be integrated into all kinds of optoelectronic system.

Online submission 1392360513 sales@SintecOptronics.cn

List of Thermal Imagers

Uncooled Infrared OEM Modules
STJ-JIR-2641 MW Cooled Infrared OEM Module
STJ-JIR-2645 MW Cooled Infrared Modules
STJ-JIR-054 Super Wide Angle Cooled Infrared Module
STJ-JIR-1100 Ultra-long Range Cooled Infrared Module
STJ-JIR-2399 Long Wave Cooled Infrared Module
STJ-JIR-2280 Large Area Array Cooling Infrared Module
STJ-JIR-2700 High Frame Rate InSb MW Cooled Infrared Module
STJ-JIR-28G Linear Array Cooled Infrared Module
STJ-IRC-26 Hand-held Multifunction Cooled Thermal Camera
STJ-IRC-36 hand-held Multifunction Uncooled Thermal Camera
STJ-JIR-6311E Sniper Detector

1. Uncooled Infrared OEM Modules

Serialized uncooled infrared imager modules include 1280×1024, 640×512, 384×288 focal plane arrays, using a small size, low power consumption platform, integrated with a variety of independently developed algorithms, which can satisfy different users’ high-quality infrared imaging demand. This series of products is suitable for all types of uncooled infrared thermal imaging cameras and related photoelectric systems.

Small size and light weight, suitable for system integration.
Manual / automatic correction.
Various video interfaces are optional.
Strong environmental adaptability.
High reliability design.

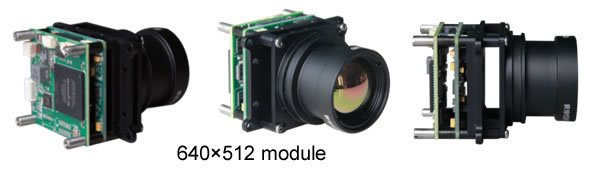

Technical Specifications of 640×512 Module

Resolution: 640×512
Pixel size: 12μm×12μm
Response band: 8~14μm
Weight: ≤ 50g
Dimension: ≤ 40mm×50mm×50mm（L×W×H）
Power supply: Voltage: 10.0~32.0V; Power consumption: ≤ 2.5W, peak power consumption ≤ 4W
Video output: PAL
Working temperature: -40℃～+55℃
Storage temperature : -55℃～+70℃

2. STJ-JIR-2641 MW Cooled Infrared OEM Module

STJ-JIR-2641 is composed of three-FOVs MWIR lens, infrared detectors and image processing circuit.

Response band: 3.7μm～4.8μm
Detector:

Type: MCT IRFPA
Resolution: 640×512
Pixel size: 15μm×15μm
F number: 4

Focal length: 30mm/150mm/500mm
Field of view: 18.3°×14.7°/3.7°×2.9°/1.1°×0.88°
NETD: ≦35mk (Environmental temperature 25℃)
Starting time:≦8min(Environmental temperature 25℃)
Weight: ≦6Kg
Size: ≦300 mm×155mm×245mm (L×W×H)
Power supply: DC 24V±10%, with ripple not higher than 100mv
Operation temperature is within -30℃～+60℃
Digital video interface (optional): send video image through cameral link to lower level system, including video data signal and synchronization signal.
Analog video: standard CCIR video
Control interface: receive control command from the lower level system through the RS422serial port.
Power interface: the imager receives power supply via power interface.

3. STJ-JIR-2645 MW Cooled Infrared Modules

These specifications stipulated the technical features of 640×512 F4 MWIR module. The imager is composed of 640×512 F4 MWIR detector, image processing electronics, power electronics, electrical connector, and mechanical structure.

Response Band: 3.7μm～4.8μm
Detector
Type: MCT IRFPA
Resolution: 640×512
Pixel size: 15μm×15μm
F number: 4
Focal Length: 54mm~320mm
Field of View: WFOV: ≥10°×8°; NFOV: ≥1.7°×1.36°
NETD: ≦25mk (Environmental temperature 25℃)
Starting time: ≦8min (Environmental temperature 25℃)
Weight: ≤ 2.45Kg
Size: ≤255mm×100mm×156mm
Power Supply: DC 24V±10%, with ripple not higher than 100mv
Operation temperature: -40℃～+55℃
Digital video interface (optional): send video image through cameral link to lower level system, including video data signal and synchronization signal.
Analog video: standard CCIR video
Control interface: receive control command from the lower level system through the RS422serial port.
Power interface: the imager receives power supply via power interface.

4. STJ-JIR-054 Super Wide Angle Cooled Infrared Module

STJ-JIR-054 MWIR thermal imaging camera is mainly composed of optical system, infrared detector and refrigeration components, imaging circuit components and mechanical structure. The imaging circuit components include infrared power board, Camlink input interface board, digital board, digital video output interface board and detector without filter board.

Functions

Non-uniformity correction
Focus
Mirror image
Positive and negative image switching
2 electronic zoom
Automatic / manual brightness adjustment
Automatic / manual gain adjustment
Display cumulative working time
Bad pixel replacement
Self-check

Infrared Detectors

F Number: F4.
Wavelength: 3μm～5μm.
Resolution: 640×512.

Optical field of view

FOV: 35.49°×28.72°~1.84°×1.47°（±5%）, Continuous zoom.
Focal length: f＝15～300mm.

Start Time: ≤6.5 min（Room temperature）
NETD: ≤25mK（Room temperature）
Dimensions: 250±10×132±10×135±10mm（L×W×H）
Weight: ≤2.6kg
Working power: DC 24V（±2V）
Power consumption ≤50W.
Operating temperature: -30℃~+60℃
Storage temperature: -40℃～+70℃
Video interface: PAL video output; digital video Camlink output.
Control interface: RS422 serial port.

5. STJ-JIR-1100 Ultra-long Range Cooled Infrared Module

STJ-JIR-1100 is a thermal camera using band 3.7μm to 4.8μm radiation emitted from the target. STJ-JIR-1100 is operational from darkness to sunlight. It is composed of continuous zoom medium wave lens, medium wave infrared detector and image processing circuit.

Non-uniformity correction (startup auto-correction, various manual correction methods in operation process);
Continue Zoom;
Electric focusing;
Auto offset (brightness) /gain (contrast) adjustment;
Manual offset/gain adjustment;
Image rotation: X axis, Y axis and central point;
Image edge enhancement;
Bad pixels replacement;
2x digital zoom;
Image polarity (black hot/white hot);
Photo mode: image frozen/active;
Aim cross: display/hide.

Technical Specifications

Response Band: 3.7μm～4.8μm
Infrared Detector

Type: Cooled MCT
Resolution: 640×512
F/#: 4
Pixel size: 15μm×15μm

Focal Length: 88mm～1100mm
Field of View: 6.24°×5°～0.5°×0.4°
Electronic Zooming: 2×, 4×
NETD: ≤30mk（Environmental temperature 25℃）
Starting Time: ≤8min
Weight: ≤60kg;
Size: 780×340×420mm (L×H×W).
Power supply: DC 24V±10%, with ripple not higher than 100mV.
Operation temperature: -30℃~65℃.
Storage temperature: -40℃~70℃.
Digital Video Interface (optional): send video image through LVDS to system, including video data signal and synchronization signal.
Analog video: standard CCIR video.
Control interface: receive control command from the system through the RS422 or RS232 serial port.
Power interface: the camera receives power supply via power interface.

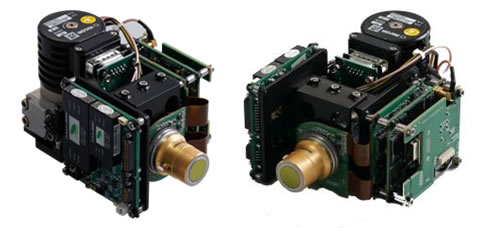

6. STJ-JIR-2399 Long Wave Cooled Infrared Module

The module includes a 640×512 cooling focal plane array, equipped with a low-temperature refrigerator device, which can effectively penetrate smoke, fog and haze, achieve high-sensitivity detection of targets in complex environments, and is suitable for various types of optoelectronics system platform.

Long detection distance
High image quality
Small targets enhanced
Strong environmental adaptability
Rich interface and strong expansibility

Technical Specifications

Detector

Long wave cooling area array.
Resolution: 640×512.
Response band: 7～9μm.
F number: F2.

Video output: standard composite video (PAL) / extendable digital (LVDS or CameraLink) video output.
Mechanical interface: flange / thread interface / or user specified.
Image contrast, image brightness, gain adjustment: manual / adaptive adjustment.
Polarity: black heat / white heat display.
Operating temperature: -40℃~+65℃.

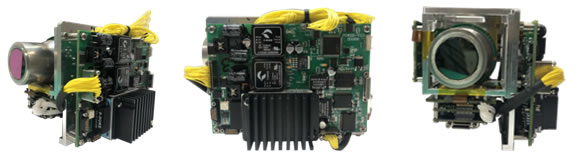

7. STJ-JIR-2280 Large Area Array Cooling Infrared Module

The large area array cooling infrared module uses 1280×1024 area array cooling type detectors with high resolution, stable performance, and easy system integration. It can be used in reconnaissance search, target detection and tracking, security monitoring and other fields.

Large area array with high resolution.
High sensitivity and fast response speed.
Sharp and clear images.
Low power consumption and good reliability.

Technical Specifications

Detector type: area array cooling.
Resolution: 1280×1024.
Pixel size: 15um×15um.
F number: F4/F5.5/F3.
NETD: ＜25mK@50Hz（25℃）.
Frame rate: 50Hz max.
Vdeo output interface: camera link digital video.
Other interfaces: support external trigger function.

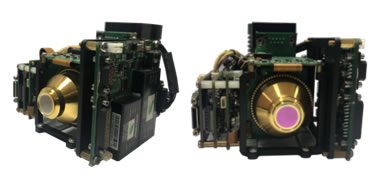

8. STJ-JIR-2700 High Frame Rate InSb MW Cooled Infrared Module

STJ-JIR-2700 high frame rate InSb 640×512 medium wave cooled infrared module uses advanced image processing algorithms, combined with the high sensitivity of InSb materials, to achieve infrared detection, search, identification, and tracking of high-speed targets, widely used in airborne photoelectric pod, infrared warning system, photoelectric tracking and targeting system, etc.

200Hz high frame rate.
Large dynamic range.
High-performance dynamic image enhancement.
Non-uniformity correction, polarity conversion.
Brightness automatic / manual adjustment.
Gain automatic / manual adjustment.

Technical Specifications

Response band: 3.7±0.2mm～4.8±0.2mm.
Detector type: 640 × 512.
F number: F4（Optional F2, F5.5）.
Pixel size: 15um×15um.
Image frame rate: 200Hz（Full size output）.
NETD: ≤30mK@200Hz（25℃）.
Video output interface: one channel camera link digital video, one channel PAL analog video.

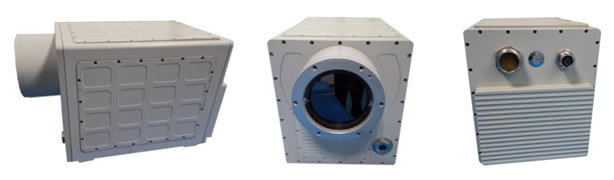

9. STJ-JIR-28G Linear Array Cooled Infrared Module

The STJ-28G 480×6 linear array cooled infrared module adopt panoramic / gaze integrated imaging, which can output intuitive and clear images, can be installed on vehicles, ships and other platforms, and achieve all-weather tracking and monitoring of air, sea and shore-based targets.
