Laser Wavelength Measurement / Fiber Optic Spectrometer Wavelength is the spatial period of the wave - the distance between consecutive corresponding points of the same phase. Light wave refers to electromagnetic spectrum, which has wavelengths in the

Online submission 1392360513 sales@SintecOptronics.cn

Laser Wavelength Measurement / Fiber Optic Spectrometer

Wavelength is the spatial period of the wave - the distance between consecutive corresponding points of the same phase. Light wave refers to electromagnetic spectrum, which has wavelengths in the range of 0.1mm to 0.1μm. The wavelength of the light wave is the light wavelength.

Our fiber optic spectrometers with the characteristics of compact and portable design, plug and play, easy operation and software are widely used in laser wavelength and line width measurement and also the laser excitation fluorescence, Raman and LIBS spectrum measurement.

Part number	Features	Resolution	Wavelength Range	Description

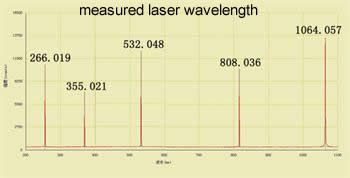

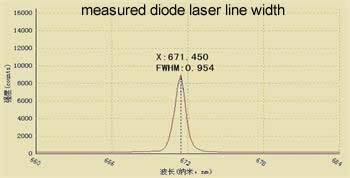

STC-A4000 series	High resolution: can be up to 0.1 nm（FWHM）	<0.75nm	200-1100nm (custom design)	Able to measure wavelength, line width of laser, LED and other common light source, and also the laser excitation fluorescence, LIBS spectral characteristics.
STC-F4000 series	Compact: small and portable type	<0.6nm	200-1100nm (custom design)
STC-S series	High sensitivity: can be up to 80% quantum efficiency	0.035-0.6nm	200-1100nm (custom design)	Able to measure laser excitation Raman spectral characteristics.
