Marking Head (Scanner)

• Full range of scan heads

• Reliable & easy operation

• Marking software matachable

• Cheap but high quality

A whole laser marking head (or called laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner motor) & drive cards (or called driver), a XY mount, a scanning lens (f-theta lens), an interface card (or called D/A card), a set of marking software and a DC power supply. For more information on calculating optics of marking system, please click here.

Part Number Description of Marking Heads

Part Number: LSxx-xxxx-yy-AAAA

• LSxx: laser scanner. xx means series marking heads such as ST, SL, LC andJC.

• xxxx: laser wavelength.

• yy: maximum input laser beam diameter.

• AAAA: notes or remarks

2D Marking Heads

Remarks: All above marking heads can be controlled via analog or XY2-100 and the default is XY2-100.

3D Marking Heads

All above marking heads can operate at 1064nm, 532nm, 355nm, 266nm or 10.6um wavelength. Other entrance diameters available upon request. Please contact us for more information.

Remark:

• The marking field of markingheaddepends on the f-theta lens. In general, it is 105x105mm(CO2 laser) or 110x110mm(Nd:YAG laser). Other mark fields are available upon request. In order to have best marking result,you may prepare a few f-theta lenses with different mark fields for your various applications.

• The focused beam diameter depends on the optical system such as beam expander and f-theta lens, laser beam parameter such as beam diameter and beam pergence angle, and marking parameters such as marking speed and material.

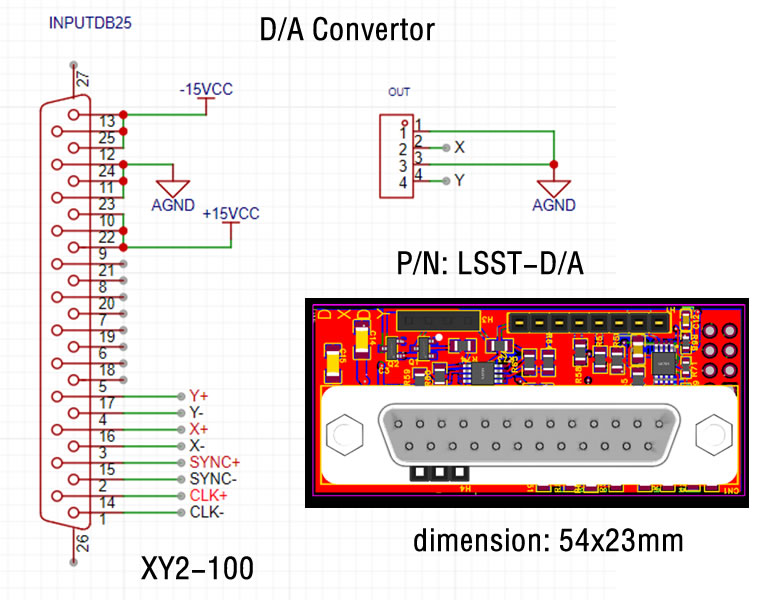

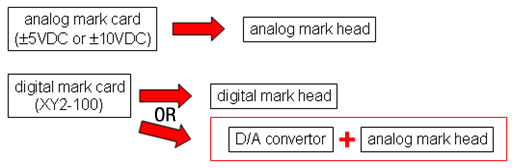

• All above analogue marking heads can be converted into digital marking heads via a D/A convertor.

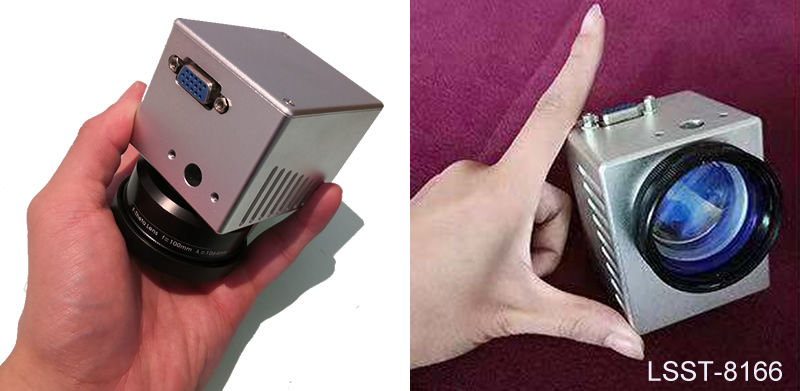

LSST Series Laser Marking Heads (Laser Scanners)

Fast speed, High accuracy & Low pricing!

Description of Part Number: LSST-xxxx-yy-zzz-AAAA

• LSST:LSST series laser scanners.

• xxxx: laser wavelength such as 10.6um, 1064nm, 532nm, 355nm etc.

• yy: maximum input laser beam diameter.

• AAAA: galvo model number

Remark:

• Positioning and marking speeds are with f-theta lens f=160mm and for single-stroke character of 1mm height

• Default control is digital XY-100 and the analog control is available upon request.

• The DC power supply is provided with match of the marking head needed.

• The f-theta and beam expander are available upon request.

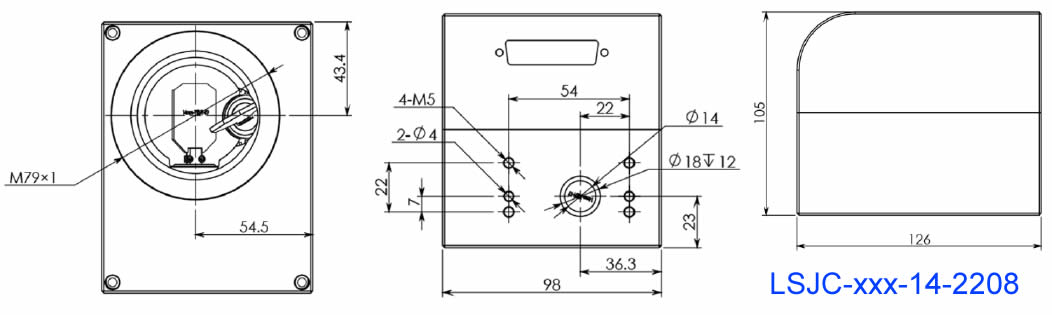

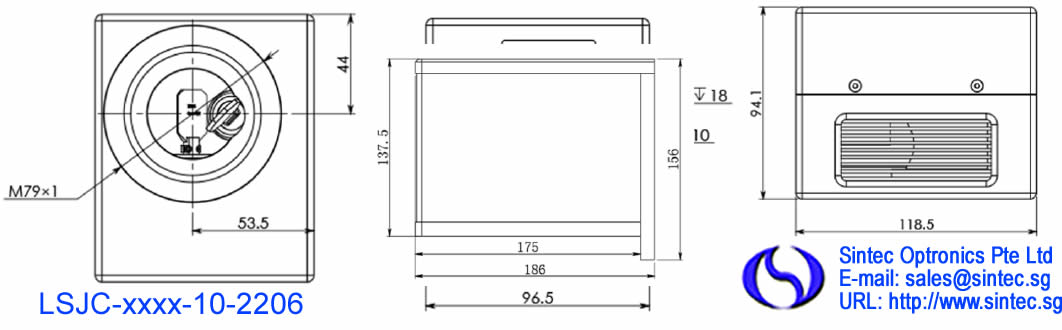

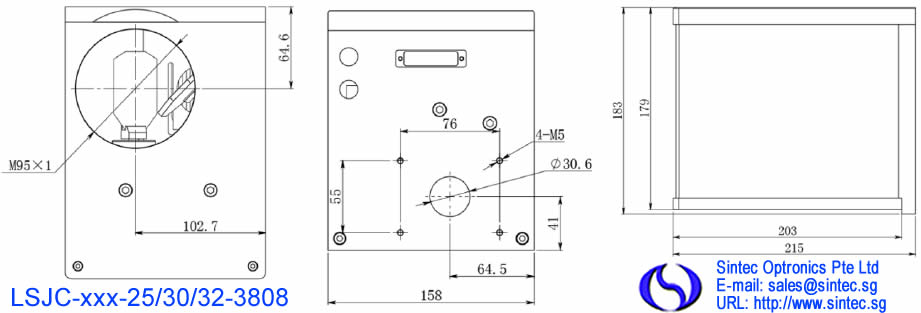

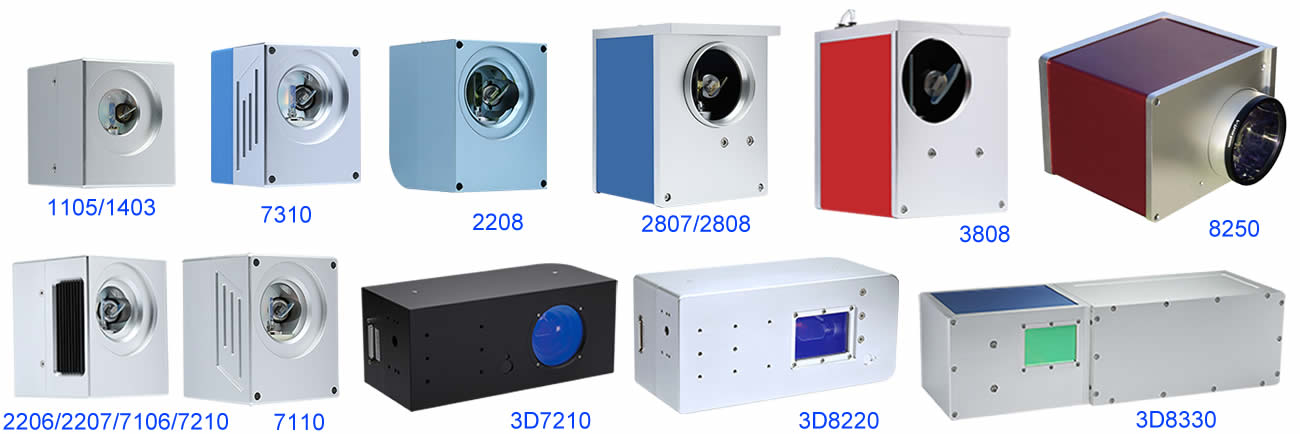

LSJC Series Marking Heads (Laser Scanners)

Our optical galvanometers are designed by adopting the magnet-moving structure, combining the most advanced international photoelectric sensor technology and the PDM control mode, and using the high-grade processes and technologies.

Our marking heads have the good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability. Their overall performance has reached the international leading level in this field. The advantages are as follows:

• Adopted the photoelectric sensors imported from America, and owned the proprietary intellectual property rights.

• Differential photoelectric sensor for accurate detection of motor rotor position, good linearity, low drift, high resolution and repeated positioning.

• Accurate load design for various mirrors with high accuracy of motor assembly, reasonable structure, very small static friction coefficient and zero offset, which ensures the best dynamic characteristics for the whole system.

• Drivers with advanced detection ability of position and speed, greatly improving the dynamic response performance and scanning speed of the whole system.

• Design of overload, over-current and reverse connect protection, makes the system running more reliable.

• Design with electromagnetic compatibility, high signal-to-noise ratio and strong anti-interference ability.

List of 2D Marking Heads

List of 3D Marking Heads

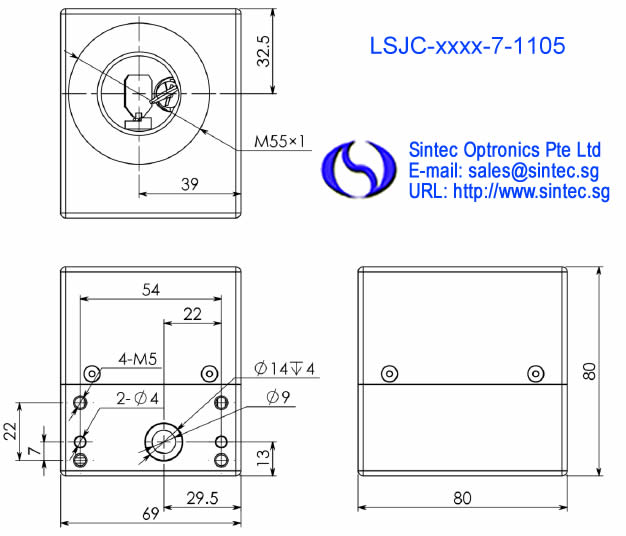

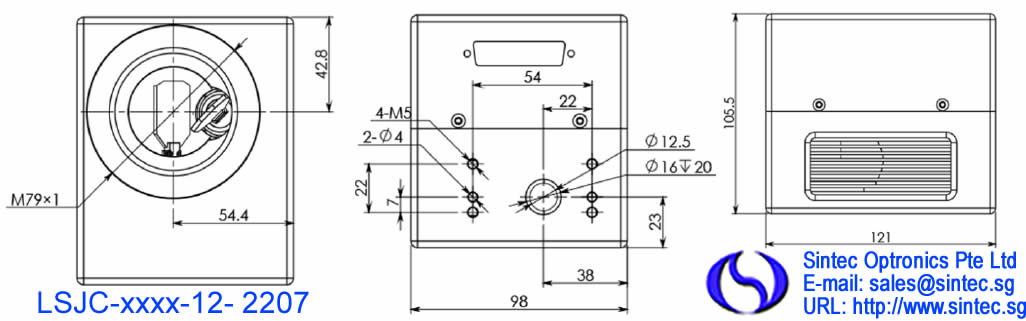

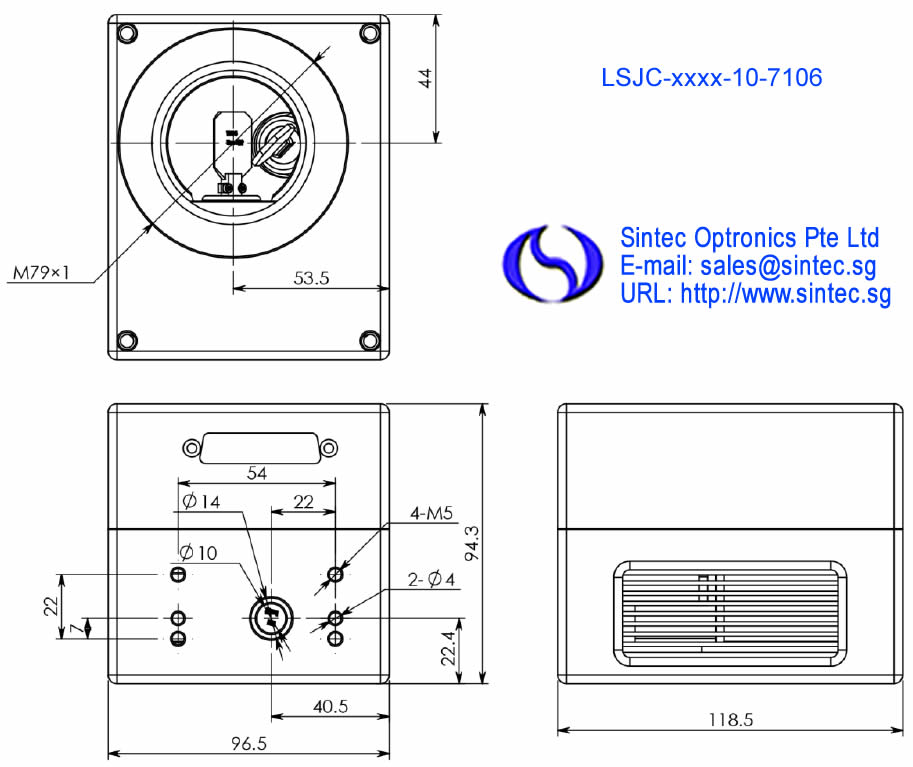

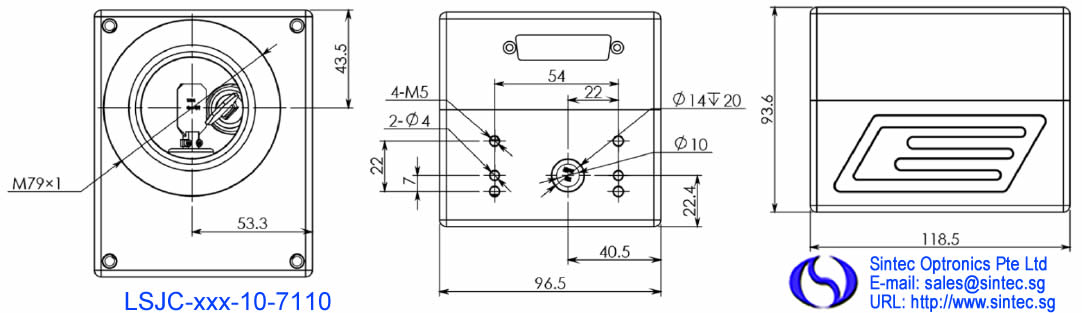

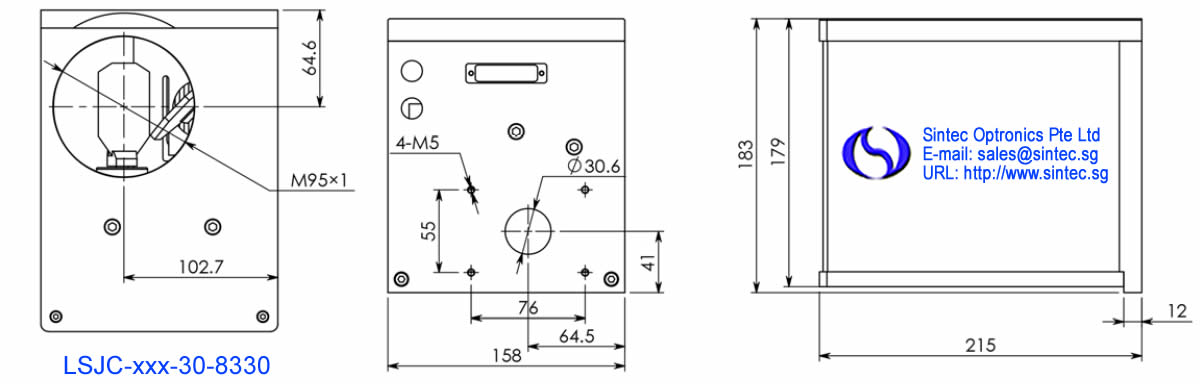

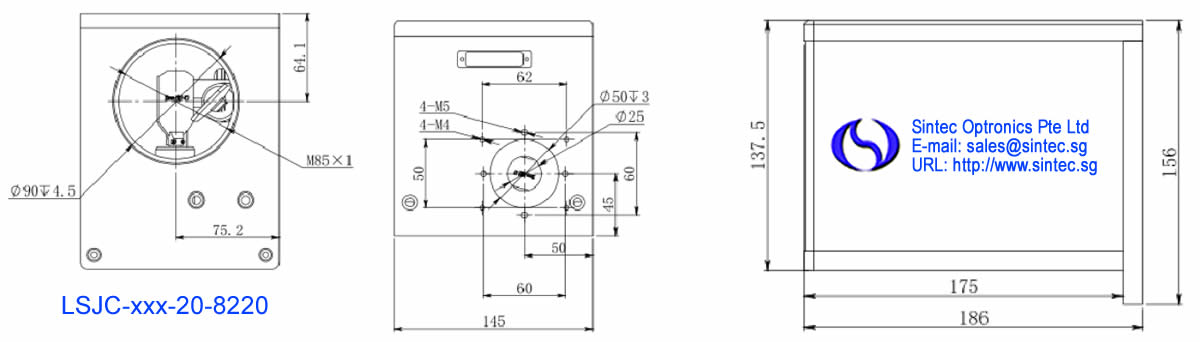

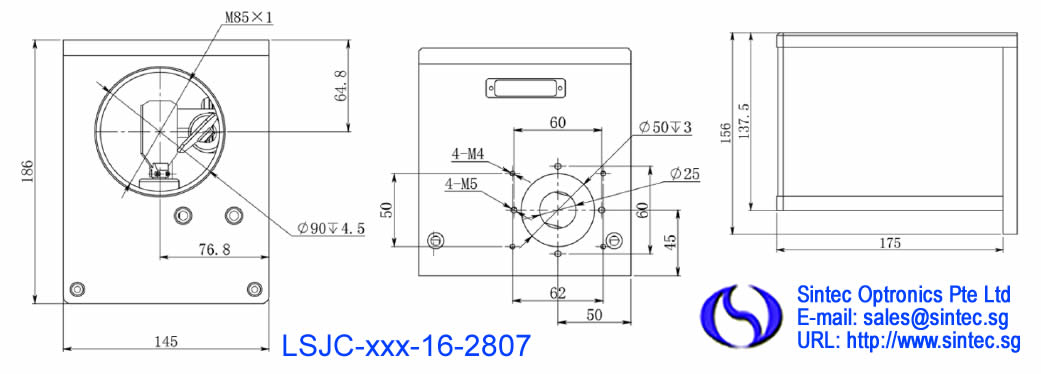

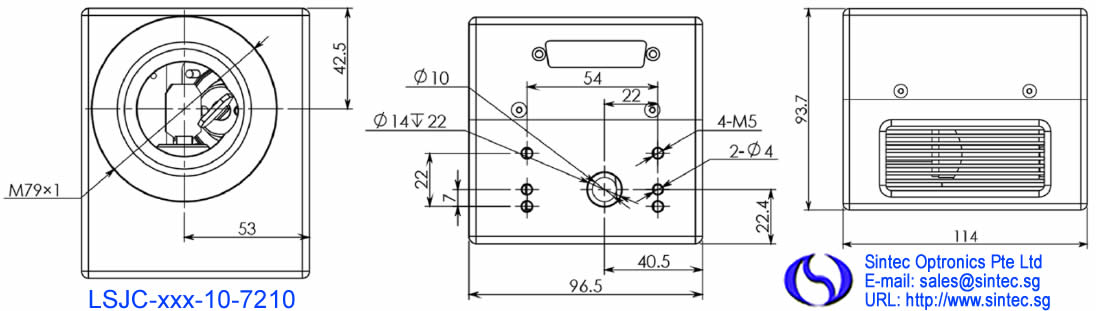

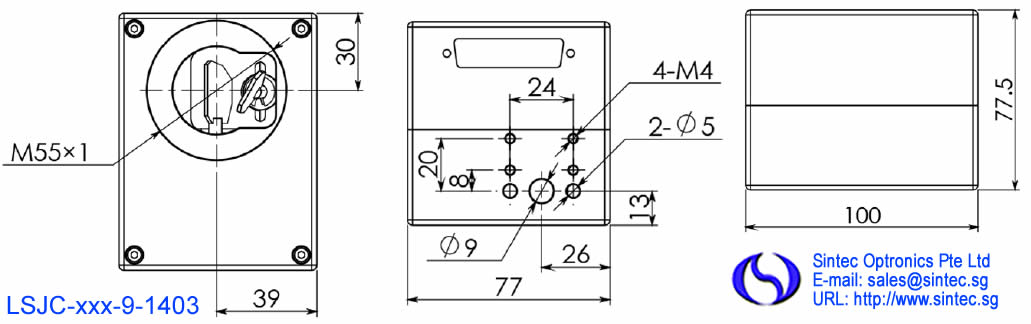

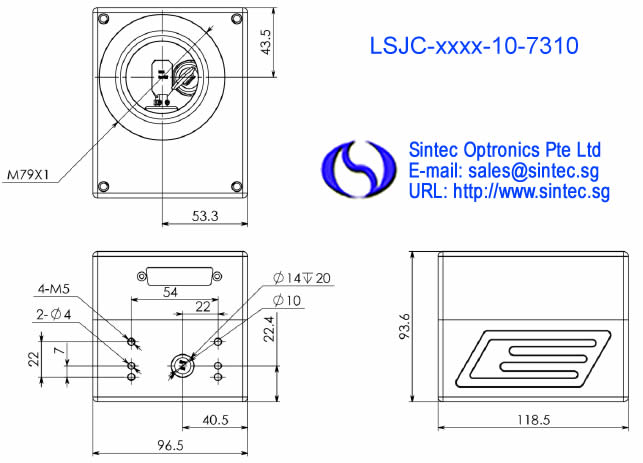

Detailed Specifications

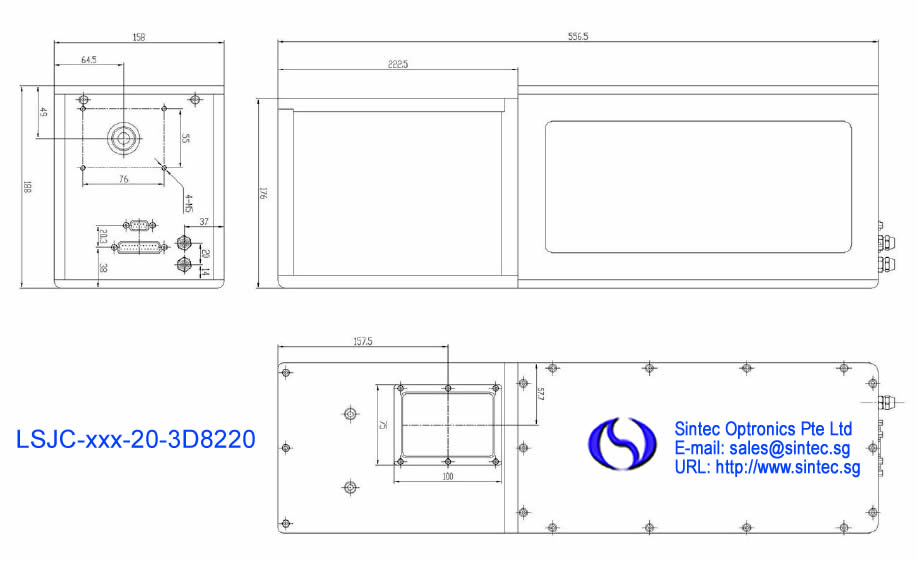

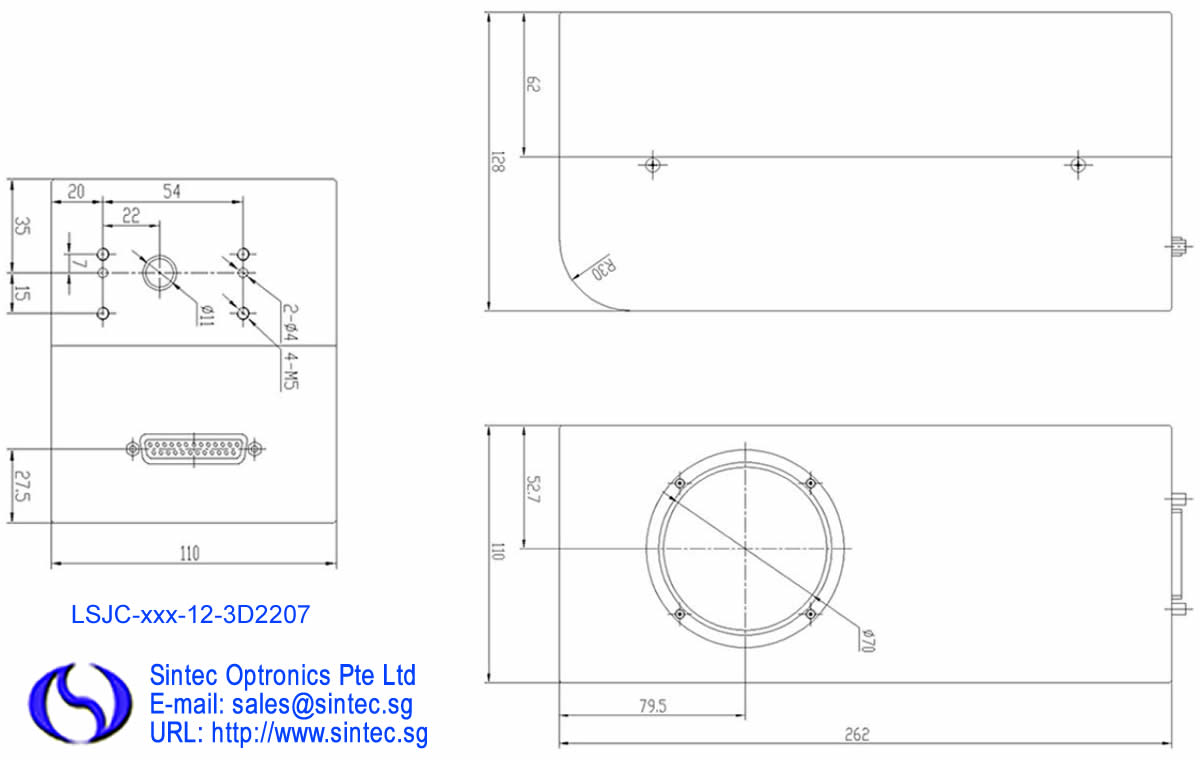

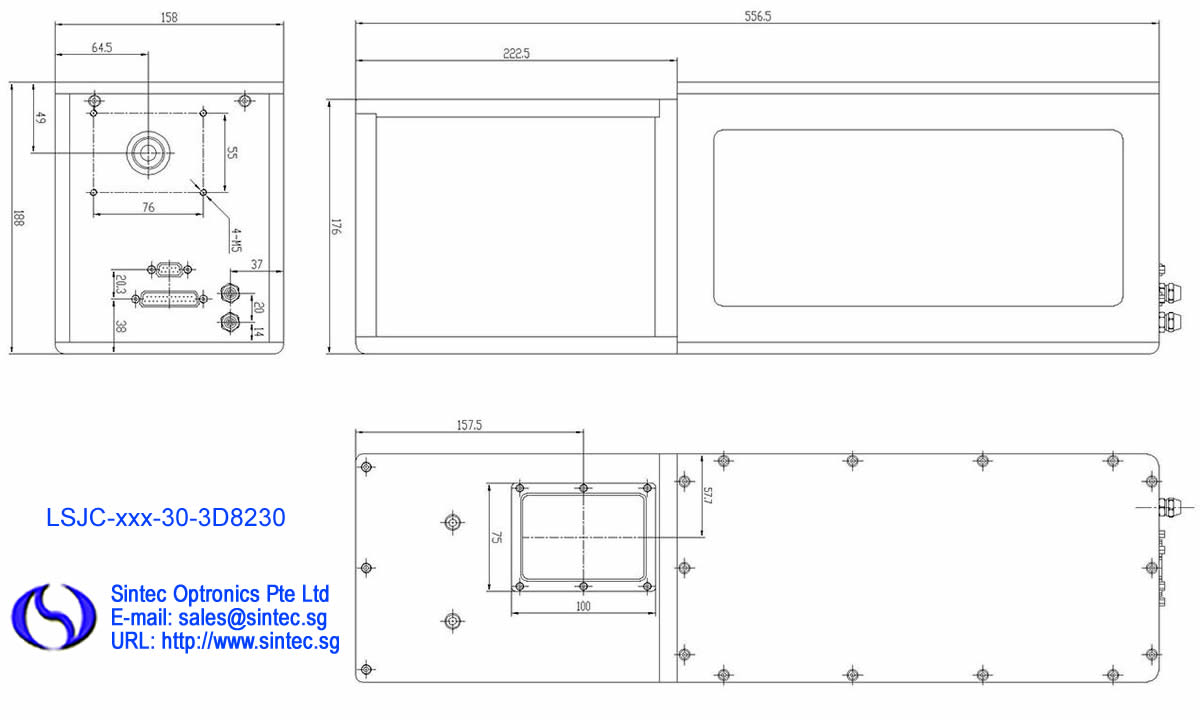

3D Marking Heads
