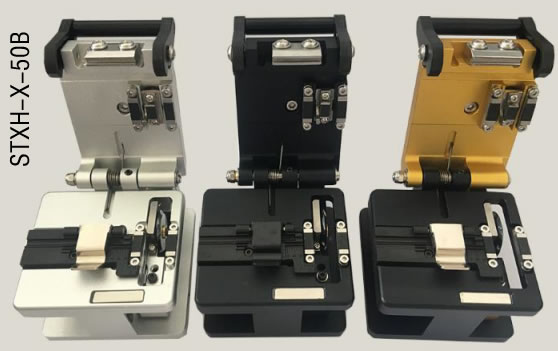

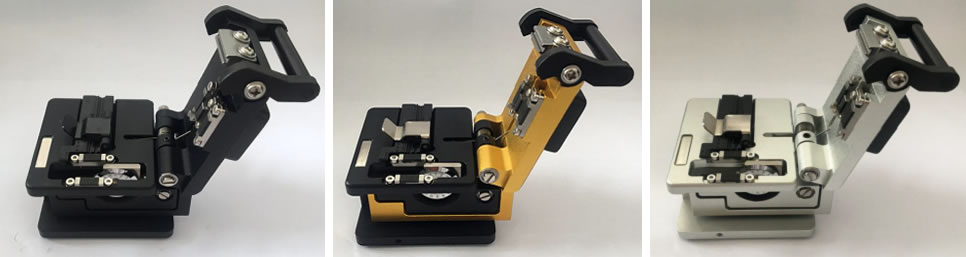

STXH-X-50B Fiber Cleaver

Specificaitons

Bare fiber diameter	125μm
Coating diameter	0.25mm~0.9mm
Fiber type	Single tube fiber and Ribbon fiber（exchangeable）
Cleaved length	5~20mm
Cleaved angle	0.7°
blade life	45000
Mode	Semiautomatic
Dimension	65mm(W)×78mm(D)×66mm(H)
Weight	395g
Color	White, Golden, Black
Package	Fiber Cleaver , User Manual, Carrying Case

STXH-LFC100 Large Diameter Cleaver

Applicable to cladding diameter 80μm~600μm

FEATURES

Applicable to cladding diameter 80μm~600μm fibers
Fiber coating diameter could reach 1mm
Sharp and durable blade, lifetime more than 20000 times
Fiber holder suitable to STXH-S27LDF fusion splice
Splicing program 6 modes, data storage 4000 groups
User friendly GUI menu, easy to operate

Specifications

Applicable optical fiber	Glass optical fibers, capillary
Number of fibers	Single
Cladding diameter	80~600μm
Coating diameter	160~3000μm
Fiber clamping	Manual clamping
Cleaving length	5~40mm
Blade life	20 cleaving points, 1000 times per point, typical 20000 fibers (Cladding diameter 125 µm) totally
Number of cleaving mode	100
Monitor	5.0 inches color LCD
Dimensions	270155165mm
Weight	4.40kg
Power supply	AC adapter: ADC-19 Input: AC100 to 240 V(50 to 60 Hz) (max.20 W)
Operation condition	0 to 95% RH and -40 to 80℃
Terminal	USB2.0

Standard Package

Item	Quantity	Remark
LFC-100 fiber cleaver	1unit
AC adapter	1pc
Power cord	1pc
User manual	1pc
Carrying box	1pc
Upper clamp	3pcs	250/400/600
Lower clamp	3pcs	250/400/600
Tools	1set
