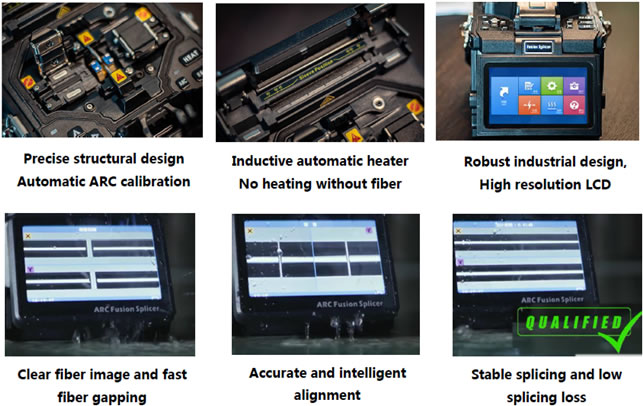

FEATURES

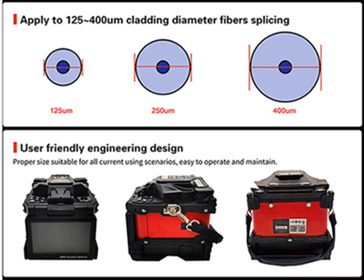

Applicable to cladding diameter 125~400μm fibers
Accurate alignment, world standard fusion loss
14s splicing time, 24s heating time for 40/60mm tube
Applicable to different types fibers (SM/MM/DS/NZDS)
Ruggedized body, waterproof, anti-dust, anti-shock
Easy to maintenance, easy to replace the electrodes
USB port for software upgrading, records exporting
Support 4000/100 groups fusion records/fusion images
Comply with CE/Rohs international standard
| Model | STXH-S27-250 | STXH-S27-400 | |
| Alignment method | Clad to clad | ||
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) | ||
| Cladding diameter | 125/250um | 400um | |
| Coating diameter | 250～1000µm | ||
| Splicing program | 40 groups | ||
| Operation mode | Manual/ Automatic | ||
| Auto-heating | Available | ||
| Typical splice time | 14 seconds | ||
| Typical heating time | 24 seconds for 60mm/40mm heating tube | ||
| Fiber magnification | X or Y single fiber image 125X，X and Y double image 62.5X | ||
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor | ||
| Data storage | 4000 groups data records and 100 group images | ||
| Loss evaluation | Available | ||
| Tension test | 1.8～2.2N | ||
| Interface | GUI menu interface, easy for operation | ||
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V | ||
| Electrode life | ＞3000 times discharge (125um)，＞1000 times discharge (＞125um) | ||
| Terminals | Micro-USB 2.0 port, for software upgrading, records exporting | ||
| Operating condition | Altitude:0-5000m, Humidity:0-95%, Temperature: -10℃～+50℃; Wind: max 15m/s | ||
| Dimension/Weight | 155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery) | ||

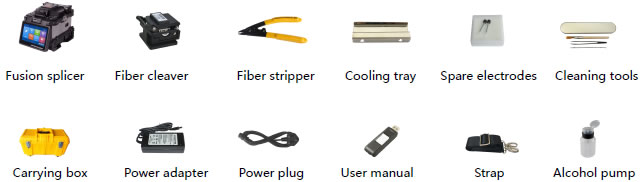

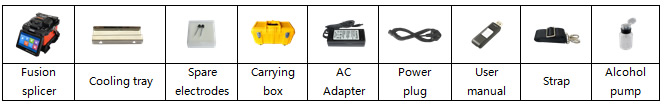

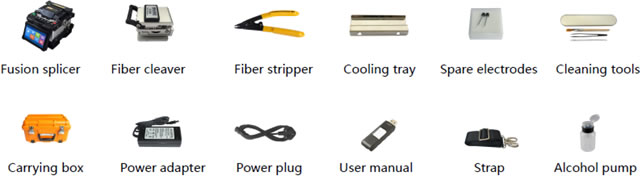

Accessories
Features
Core to core alignment, low splicing loss
End view and Profile observation and alignment
Arc automatic calibration and splicing

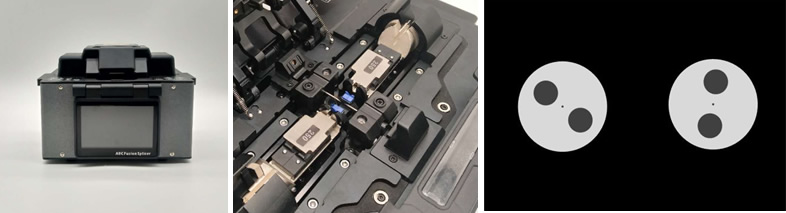

PM fiber 45 and 90 degree alignment
Applicable to variety fibers splicing, such as Panda, bow-tie and elliptical fiber
| Applicable fiber | MMF(ITU-G651),SMF(ITU-G652), NZDS(ITU-G655),DS(ITU-G653), |
| PM fiber | Panda fiber and other type PMF |
| Cladding diameter | 80～150µm |
| Coating diameter | 160～900µm |
| Typical splice loss | SMF:0.02dB MMF:0.01dB NZDS,DS:0.03dB,PMF 0.05dB |
| Extinction ratio | 32dB(PANDA) |
| Cleaved length | 10～16mm（coating diameter＜250um）; 16mm（coating diameter: 250-1000um） |
| Alignment method | Profile and End face alignment |
| Splicing program | 40group |
| Heating program | 20group; Automatic heating |
| Operation mode | Manual/ Automatic |
| Typical splice time | Unpolarized fiber: 15seconds; PM Fiber:45seconds |
| Typical heating time | 30 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber Identification | Automatically Identify SMF,MMF,NZDS,DS,PANDA PMF |
| Fiber magnification | 180X (X or Y view), 90X (X and Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating condition | 0 ~ 40℃ Not frosted |
| Dimension/Weight | 260mm(W)×202mm(D)×170mm(H) /5.1kg |

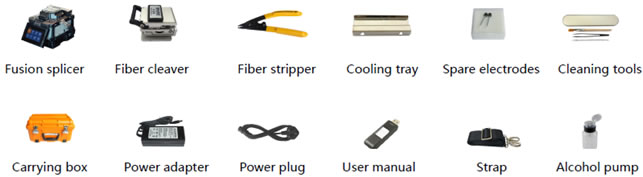

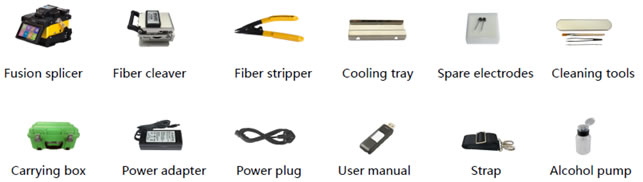

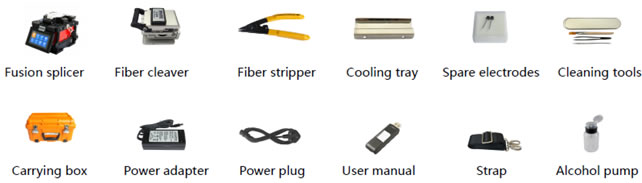

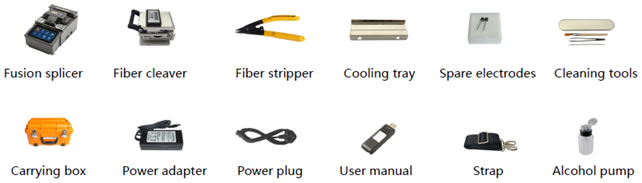

Accessories
FEATURES

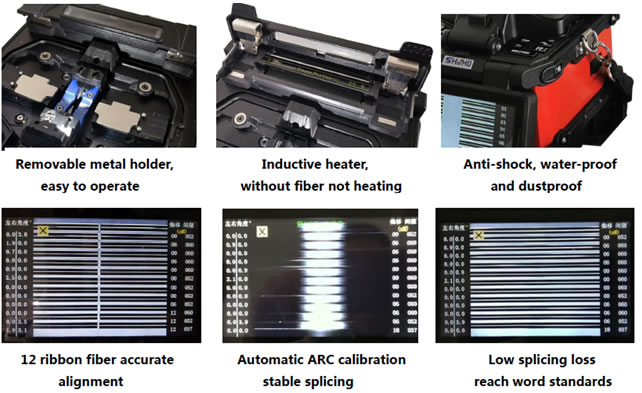

Applicable to 2-12 ribbon fiber splicing
Accurate alignment, world standard fusion loss
20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
Applicable to different types fibers (SM/MM/DS/NZDS)
Ruggedized body, waterproof, anti-dust, anti-shock
Pluggable Li-battery, support separate charging
Easy to maintenance, easy to replace the electrodes
USB port for software upgrading, records exporting
Support 4000/100 groups fusion records/fusion images
Comply with CE/Rohs international standard
Specifications
| Alignment method | Clad to clad |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Fiber cores quantity | Single core，2-12 cores |
| Coating diameter | 250～400μm |
| Typical splice loss | SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 20 seconds |
| Typical heating time | 1-2 cores 26 seconds，4-12 cores 40 seconds |
| Fiber magnification | 25X |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records and 100 group images |
| Loss evaluation | Available |
| Tension test | 1.8～2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 150 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 3000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s |
| Dimension/ Weight | 155mm(L)×144mm (W)×155mm (H) /2.3kg (incuding battery) |

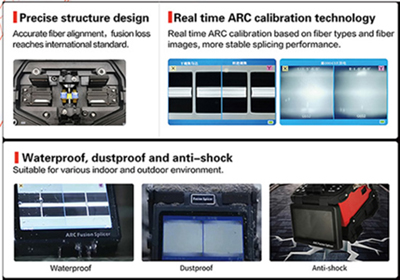

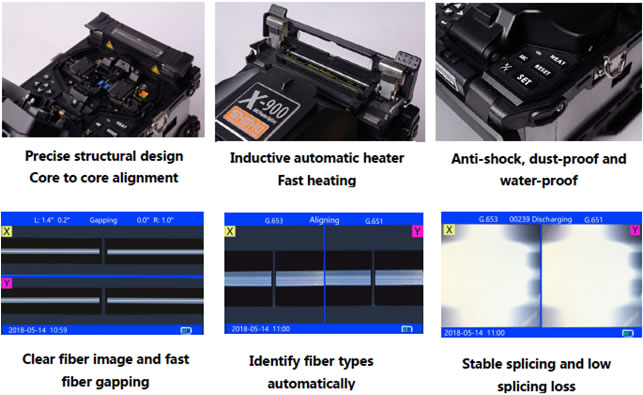

FEATURES

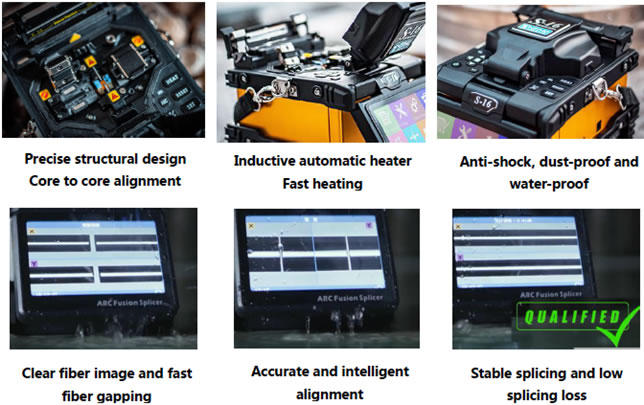

6 motors accurate core to core alignment
Identify fiber types(SM/MM) automatically
6 seconds splicing & 18 seconds heating
Automatic & real-time ARC calibration
Industrial quad-core CPU with 30% power saving
Real-time heating temperature monitoring
Anti-shock, anti vibration, dustproof & waterproof
Apply to 250um/0.9mm/2.0mm/3.0mm fibers
Specifications
| Alignment method | 6 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 300 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |

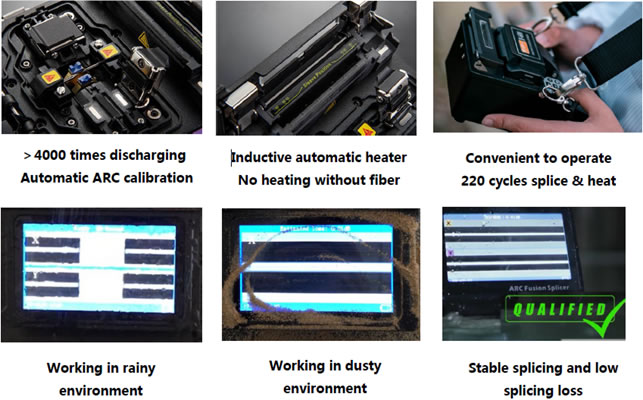

| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/ Weight | 156mm(L)×141mm(W)×156mm (H) /2.45kg (incuding battery) |

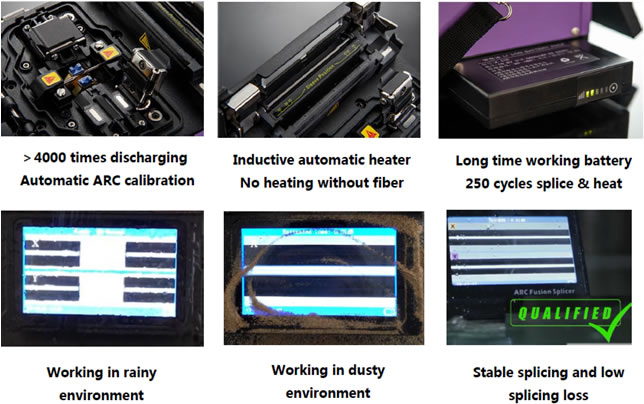

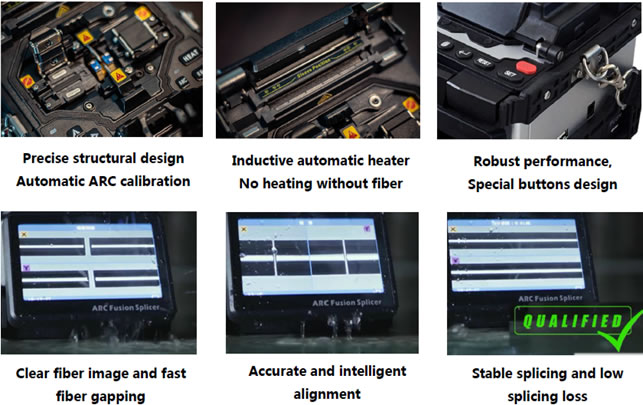

FEATURES
4 motors accurate core to core alignment
6 seconds splicing & 18 seconds heating
Automatic & real-time ARC calibration
Industrial quad-core CPU, faster & more stable
Real-time heating temperature monitoring
Anti-shock, anti vibration, dust-proof & waterproof
Apply to 250um/0.9mm/2.0mm/3.0mm fibers etc.
Suitable for medium backbone, FTTx projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension / Weight | 160mm (L) x 136mm (W) x 140mm (H) / 2.20kg (including battery) |

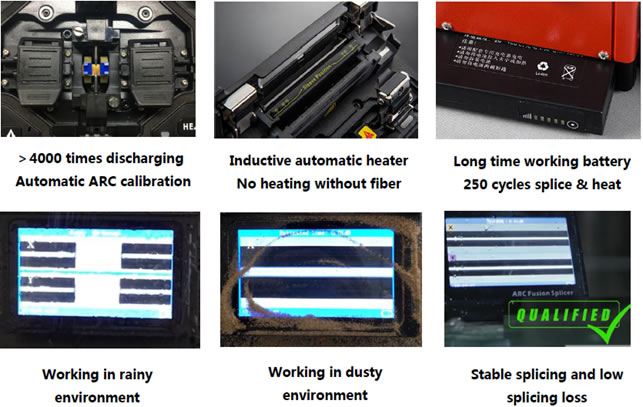

FEATURES
Small and light, easy to carry
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
Specfications:
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimensions / Weight | 149mm (L) x 120mm(W) x 127mm(H) / 1.90kg (including battery) |
FEATURES
4 motors accurate core to core alignment
6 seconds splicing & 20 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Anti-shock, anti vibration, dust-proof & waterproof
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV, MAN projects etc.
Specificaitons
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimensions / Weight | 157mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery) |
FEATURES
Small and light, easy to carry
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 4400mAh Li-battery, 220 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 200mm(L) x 123mm(W) x 95mm(H) /1.60kg (including battery) |
FEATURES
4 motors accurate core to core alignment
6 seconds splicing & 20 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Anti-shock, anti vibration, dust-proof & waterproof
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV, MAN projects etc.
Specificaitons
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 6 seconds |
| Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 160mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery) |
FEATURES
Small and light, easy to carry
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 149mm(L) x 120mm(W) x 127mm(H) / 1.90kg (including battery) |
FEATURES
Small and light, easy to carry
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
Specifications
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
| Cladding diameter | 80 -150μm |
| Coating diameter | 160–1000μm |
| Cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Loss evaluation | Available |
| Tension test | 1.8～2.25N |
| Interface | GUI menu interface, easy for operation |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～+50 ℃ ;Wind:max 15m/s |
| Dimension/Weight | 149mm(L) x 120mm(W) x 127mm(H) /1.90kg (including battery) |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 18 South Liu Fang Yuan Road, Sintec Industrial Park, Optics Valley of China, Wuhan Hubei, 430205 PR China
Tel: +86 27 51858962
Fax: +86 27 51858989
Mobile/Wechat: +86 13871137266
Whatsapp: +65 90013656
E-mail: sales@SintecOptronics.cn
