Articulated Arms for Beam Delivery

Keywords: articulated arm, beam delivery, reflection, focusing,beauty

May 11, 2020 View: 970 Data Sheet

Online submission 1392360513 sales@SintecOptronics.cn

The articulated arm delivery system is used in conjunction with various types of CO2, YAG, and other wavelength laser systems as a means of delivering the laser energy from the laser launch to the process point. A six or seven joint articulated arm for the delivery of laser energy. Attachment to the laser is accomplished with a laser mount plate and various coupling devices, and process end is attached to the hand piece by the use of an adapter at the end of the arm.

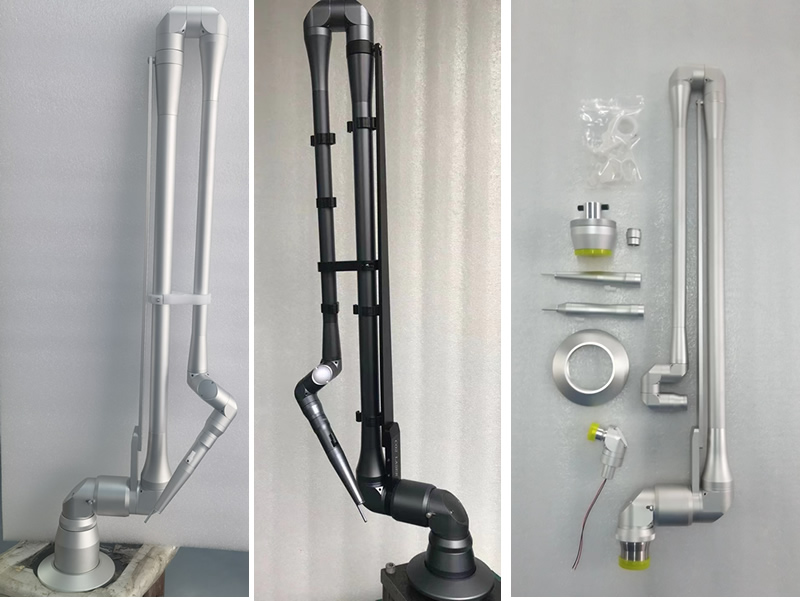

STTL Series Articulated Arms

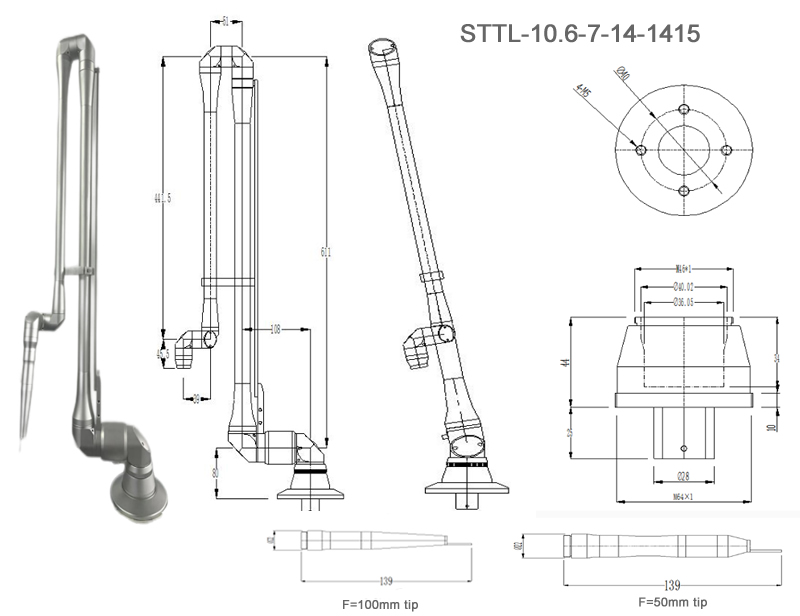

Part number	STTL-10.6-7-14-1415
Laser wavelength (mm)	10.6
Number of joints	7
Max. beam aperture (mm)	Φ14
Extension length (mm)	1415=80+108+611+51+441.5+39+39+45.5
Optical path deviation (mm)	±0.3
Dimension of mirrors (mm)	Φ25.4x3 (4pcs), Φ18x3 (3pcs)
Total reflectivity	≥85%@10.6mm
Mount connection (mm)	M20x1
Colour	Silver; Blue-black
Tip	F=50mm; F=100mm

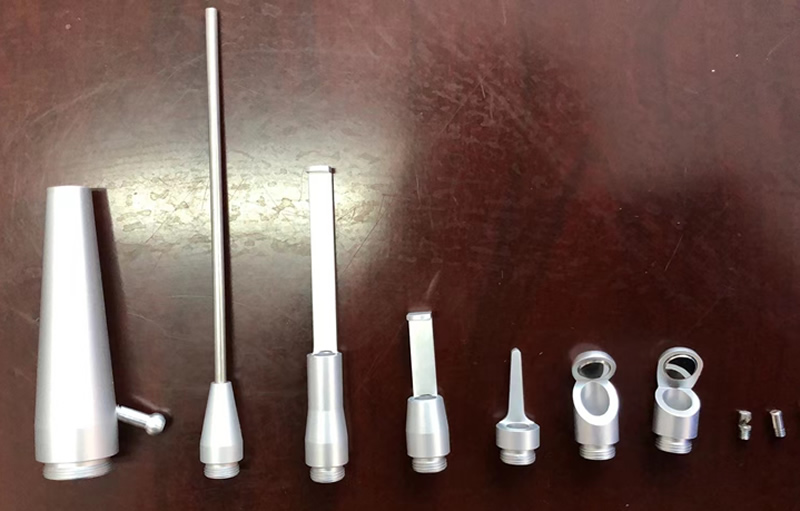

Accessories (options):

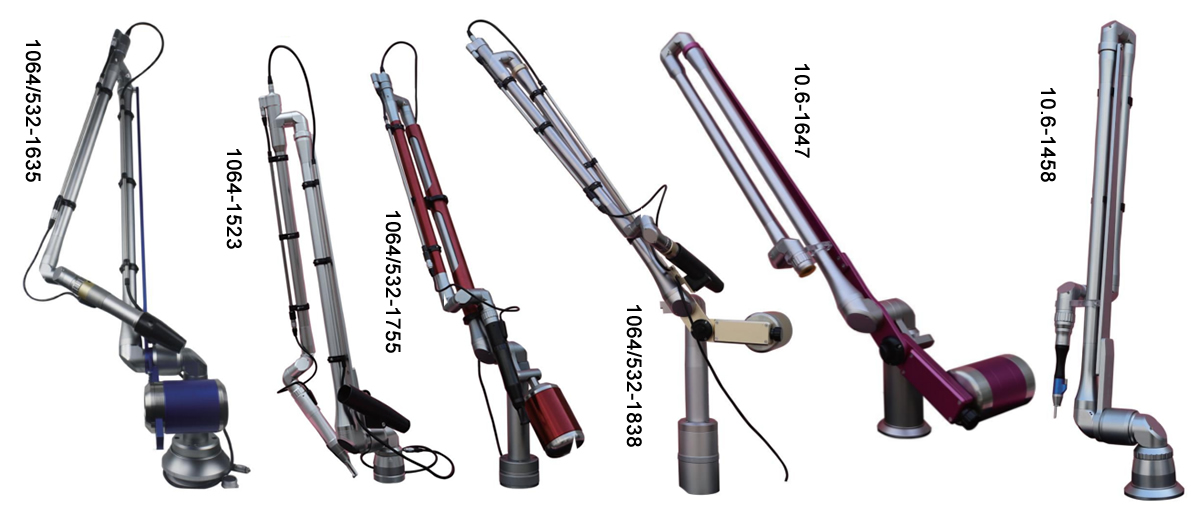

SSZ Series Articulated Arms

1. Articulated Arms for Nd:YAG Laser

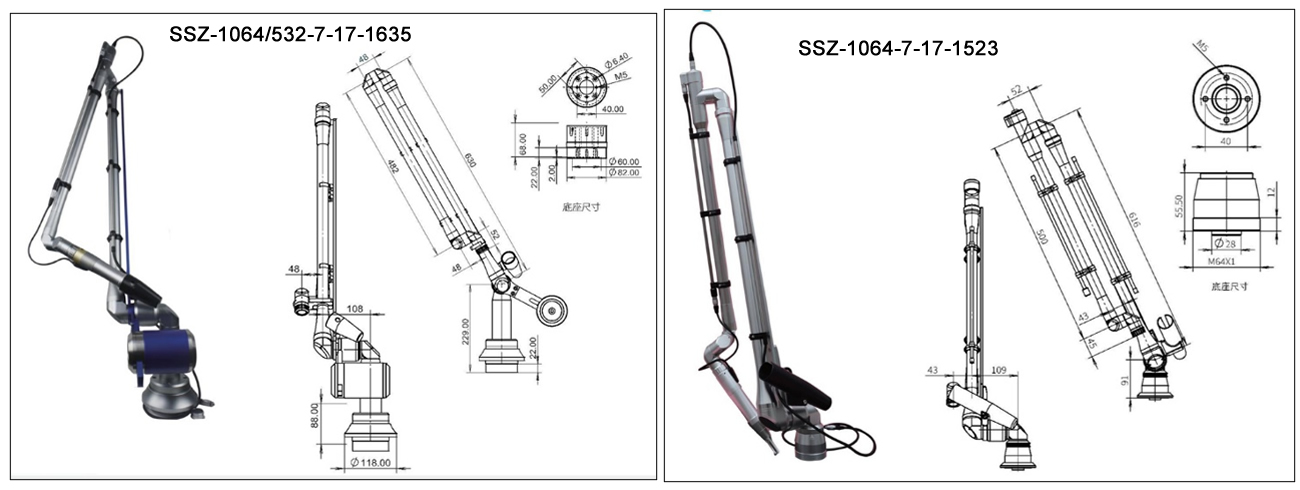

Part number	SSZ-1064/532-7-17-1635	SSZ-1064-7-17-1523
Laser wavelength	1064+532nm	1064nm
Number of joints	7	7
Max. beam aperture	Φ17mm	Φ17mm
Extension length (mm)	1635=219+108+630+48+482+48+48+52	1523=90+109+616+52+500+52+52+52
Optical path deviation	±0.3mm	±0.3mm
Dimension of mirrors	Φ25x3mm	Φ25x3mm
Reflectivity	99.6%@1064nm, 98%@532nm	99.6%@1064nm, 98%@532nm
Mount connection	M22x1.5mm	M22x1.5mm

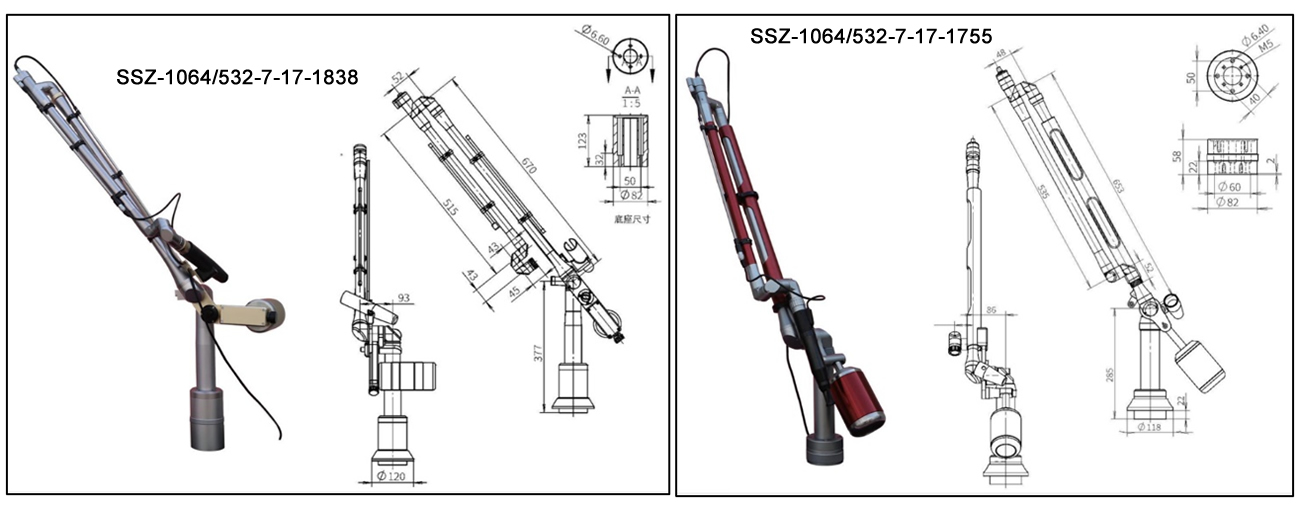

Part number	SSZ-1064/532-7-17-1838	SSZ-1064/532-7-17-1755
Laser wavelength	1064+532nm	1064+532nm
Number of joints	7	7
Max. beam aperture	Φ17mm	Φ17mm
Extension length (mm)	1838=377+93+670+52+515+43+43+45	1755=285+86+653+48+535+48+52
Optical path deviation	±0.3mm	±0.3mm
Dimension of mirrors	Φ25x3mm	Φ25x3mm
Reflectivity	99.6%@1064nm, 98%@532nm	99.6%@1064nm, 98%@532nm
Mount connection	M22x1.5mm	M22x1.5mm

2.Articulated Arms for CO2 Laser

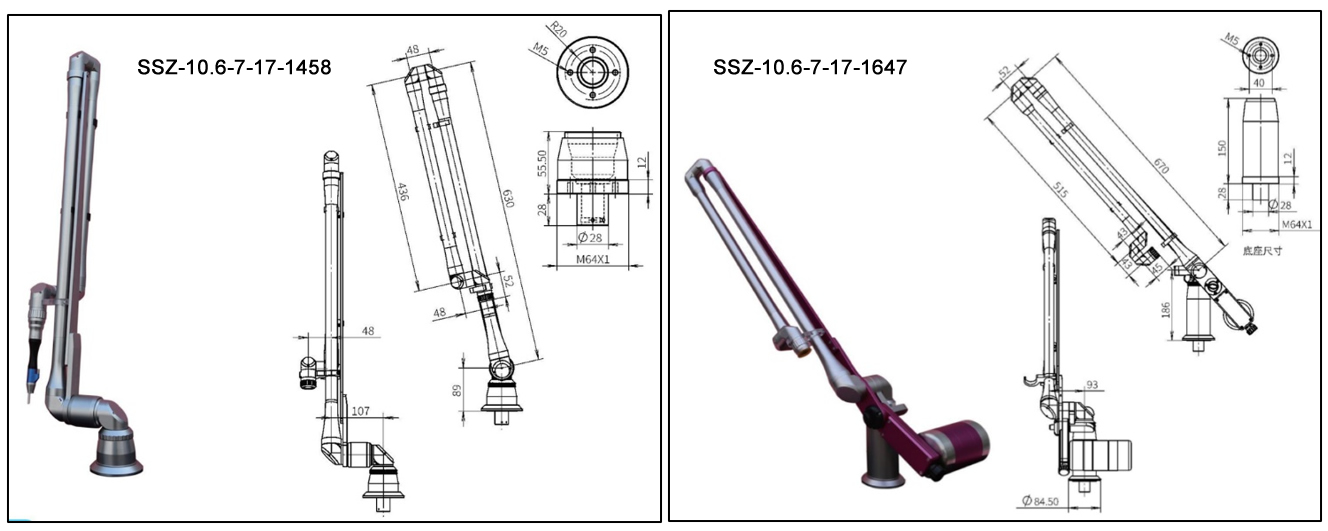

Part number	SSZ-10.6-7-17-1458	SSZ-10.6-7-17-1647
Laser wavelength	10.6um	10.6um
Number of joints	7	7
Max. beam aperture	Φ17mm	Φ17mm
Extension length (mm)	1458=89+107+630+48+436+48+48+52	1647=186+93+670+52+515+43+43+45
Optical path deviation	±0.3mm	±0.3mm
Dimension of mirrors	Φ25x3mm	Φ25x3mm
Reflectivity	98%@10.6um	98%@10.6um
Mount connection	M20x1mm	M20x1mm
