200W Pulsed 4-in-1 Laser Processing Machine

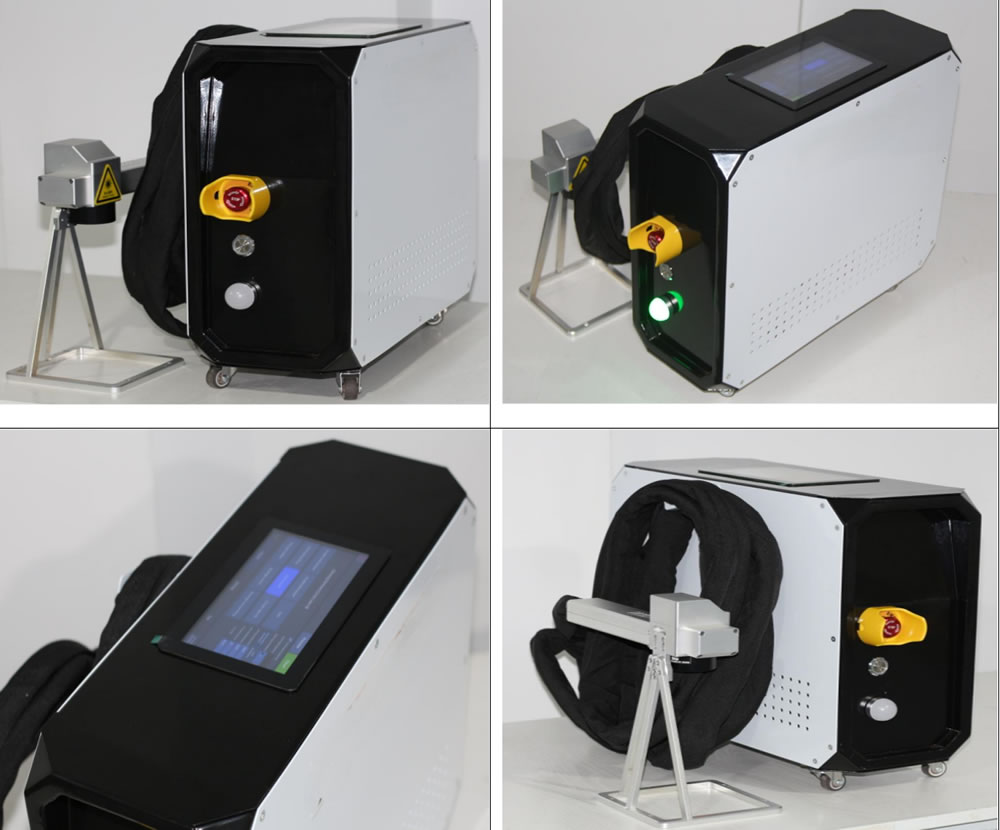

The pulse laser cleaning machine mainly consists of MOPA cleaning laser, control board, control system, pulse cleaning dual swing cleaning head, cleaning f-theta lens, power supply, housing, etc.

Features:

The machine casing is made of metal sheet, laser cut, welded and polished, suitable for various harsh working environments with a beautiful and durable appearance.

l  Full body metallic paint, smooth and bright surface, bright color, high temperature resistance, corrosion resistance, impact resistance, friction resistance, waterproof and oil resistant.

l  Metal start switch and metal power interface have a long service life, sensitive response, good contact conductivity, and can be used in harsh working environments.

l  The fiber optic protective cover adopts high-density fibers, which are fireproof, waterproof, and corrosion-resistant, and can effectively protect the fiber optic from long-term use in various harsh environments.

l  This laser is produced by the well-known company, which has a uniform optical mode and stable laser output energy. Flat top light design, energy density of 5mJ, low power consumption for air cooling.

l  The control system adopts a high-sensitivity capacitive touch screen with fast response speed. There are 9 cleaning methods including straight line, circle, petal, solid circle filling, horizontal and vertical scanning, and 20 global languages. The interface operation is simple and easy to set, and can adjust laser power, frequency, pulse width, graphic size, cleaning speed, and reaction time.

l  The cleaning head weighs 500g, with a dual swing X/Y copper wire motor. The lens is made of high-temperature quartz material with silicon chips, which does not heat or deform. The fixed bracket is distributed for easier cleaning operation.

Specifications:

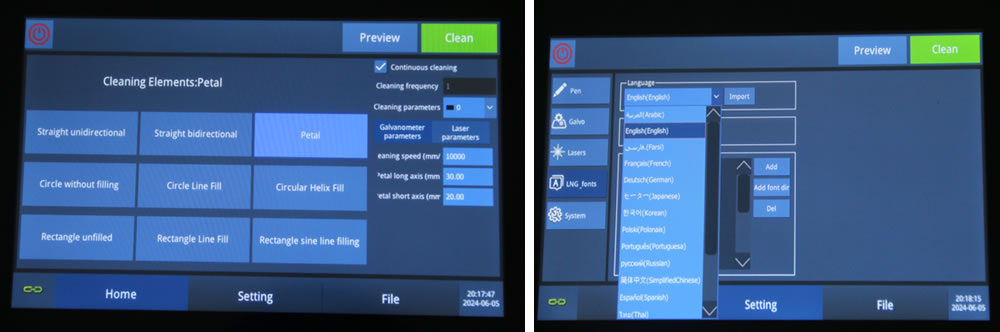

Control system: Adopting a 7-inch capacitive touch screen and microcontroller principle, it can set laser power, laser frequency (pulse repetition rate), pulse width, cleaning width, filling angle and spacing, 9 cleaning modes, and 20 languages. It is compatible with marking systems.

Handheld cleaning head (compatible with marking function): All metal 6061 aluminum alloy design and manufacturing, electroplated frosted silver, comfortable grip, wear-resistant and drop resistant, gun body weight of 750 grams, long-term holding without fatigue; The gun body is equipped with metal buttons, with over 500000 clicks. It features a copper high-speed motor with dual mirrors, a heavy load accuracy of less than 5urad, a positioning speed of 20m/s, and is suitable for temperatures ranging from -20 ° C to 60 ° C with high speed drive 20000Hz/s, fast response speed, small error, and no noise. High-quality quartz lens is durable and long-lasting. Equipped with a special positioning device bracket for precise focusing, it is easier to operate during cleaning, and can also be disassembled by oneself. It can switch the handheld marking function with one click, perfectly integrating handheld cleaning, marking, thin-metal cutting, and deep engraving.
