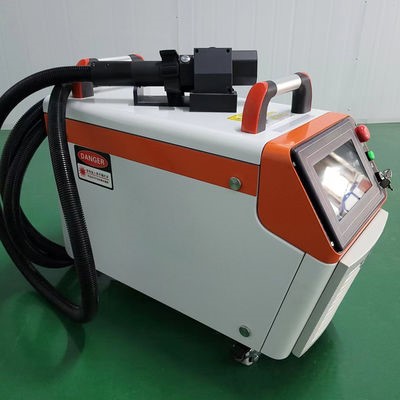

100W Pulse Fiber Laser Cleaning Machine Rust Remover Portable Laser Cleaner

100W Pulse Fiber Laser Cleaning Machine Rust Remover Portable Laser Cleaner

Keywords: laser cleaning, laser welding, laser cutting
Sep 23, 2024 View: 5 Data Sheet

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate clean

 Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning , 'green' environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas. The laser cleaning equipment produced by our company is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.


Features:

l  Non-contact cleaning without damaging the matrix of the parts;

l  Accurate cleaning, can achieve precise position, accurate size selective cleaning;

l  Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;

l  Simple operation, hand-held or with the manipulator to achieve automatic cleaning;

l  Ergonomics design, operating labor intensity greatly reduced;

l  Trolley design, with its own moving wheel, easy to move;

l  High cleaning efficiency, save time;

l  Laser cleaning system is stable with little maintenance;



Technical Specifications:

Supply voltage

Single phase 220V±10%, 50/60Hz AC

Power consumption

≤800W

Working environment temperature

5℃40℃

Working environment humidity

≤80%

Average laser power

100W

Power instability

5%

Laser Working Mode

Pulse

Maximum monopulse energy

1.5mJ

Power regulation range

0-100% (Gradient Adjustable)

Repeat frequency

1-3000kHz (Gradient Adjustable)

Fiber length

5m

Cooling mode

Air cooling

San range

Uniaxial: 0mm-100mm, continuously adjustable;

Biaxial: supporting 8 scanning modes

Scanning frequency

The maximum is not less than 300Hz

Field mirror focal length

160mm(Optional 10mm/254mm/330mm/420mm)

Depth of focus

About 5 mm

Mode of operation

Handheld/automated





Application industry:

l  Marine automotive parts

l  Rubber mold

l  High-end machine tool

l  Tire mold

l  Track environmental industry

l  Other

l  Printing Shops,

l  Manufacturing Plant,

l  Food & Beverage Factory,

l  Farms

l  Hotels,

l  Home Use,

l  Garment Shops,

l  Construction works ,

l  Machinery Repair Shops,

l  Advertising Company,

l  Energy & Mining,

l  Building Material Shops

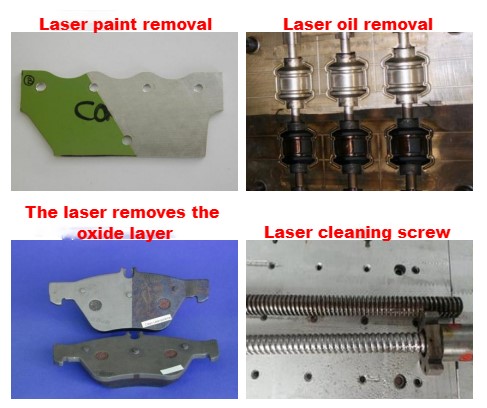

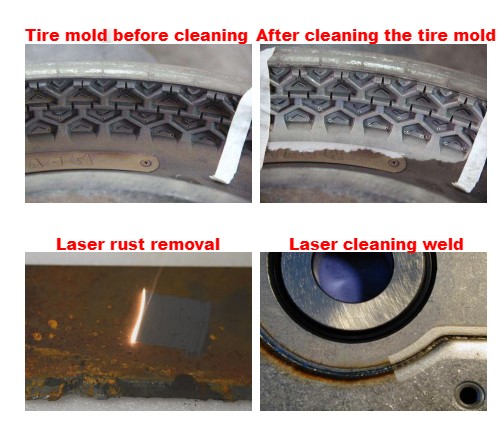

Applied range samples:
