780/1555/1560nm FS Fiber Laser

Keywords: 1550nm, fs, femto-second, GHz, ultrafast, fiber laser, 780nm, 1560nm

Feb 15, 2021 View: 1250 Data Sheet

Our femtosecond laser sources are based on robust and well-engineered designs, offering an excellent reliability with the low-noise performance from soliton mode-locking. Robust 24/7 operation, user-friendly and self-starting, our lasers have been mad

Online submission 1392360513 sales@SintecOptronics.cn

SMR Series Femtosecond Pulse Fiber Lasers

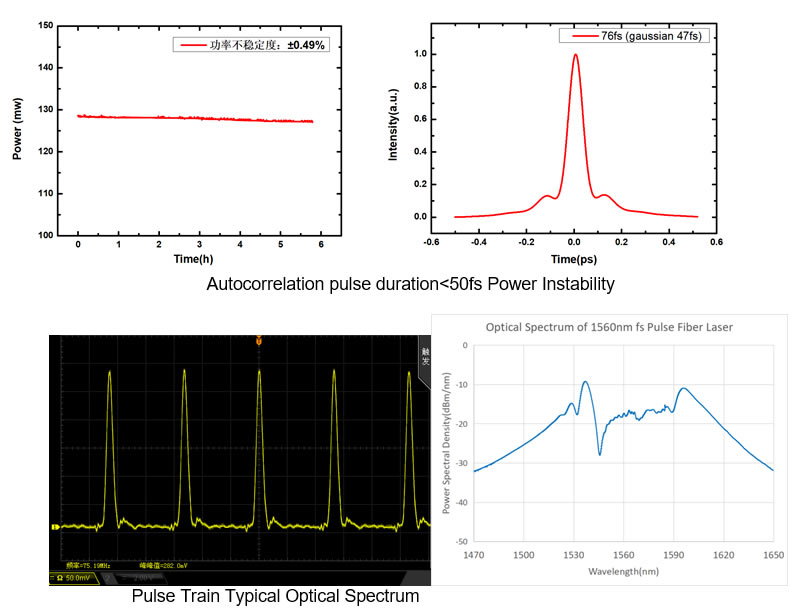

1.1560nm Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The output laser pulse has the characteristics of extremely narrow duration and high pulse peak power. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

Pulse duration<50fs
1560 nm wavelength
Turn-Key Product
All PM fiber Laser cavity

Applications

Optical Frequency Comb
Supercontinuum
THz
Ultra Fast Laser Research

Parameters	Unit	Typical Value		Remarks
Center Wavelength	nm	1560±10
Spectrum Width	nm	20	60
Pulse Duration	fs	100/200/500		Customizable
Average Power	mW	1~120		Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	80
Repetition Rate Instability	Hz	< 100
Pulse Energy	nJ	>1
Polarization	-	Linear		Aligned to Slow Axis
Fiber Type	-	PM Fiber 0.5m	PM Fiber 2m
Fiber connector	-	FC/APC
Worm Up time	min	< 1

General Parameters	Benchtop	Module
Control function	Push Button in Front Panel	RS232 Serial Port
Synchronous electrical signal port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)	200(W)×121(D)×65(H)
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Product Code
SMR-FSPL	WL(nm)	Pulse Duration(fs)	Power(mW)	Freq (MHz)	Fiber	Packaging
	1560	100/200/500	10/50/100	80/100	SM PM	B=Benchtop M=Module

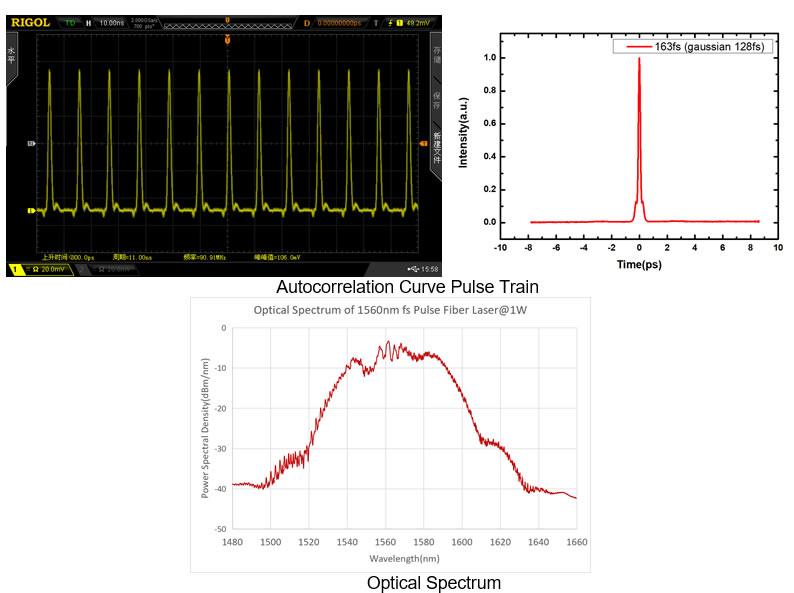

2.1560nm High-Power Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The average power can be 1 Watt. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

Pulse duration < 120fs
Average Power 1W
Turn-Key Product
ALL PM fiber Laser cavity

Applications

Optical Frequency Comb
Supercontinuum Light
THz Generation
Ultra Fast Laser Research

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	1560±10
Pulse Duration	fs	≤120	Customizable
Average Power	W	1	Customizable
Power Instability	-	< ±1%	24h@25°C
Repetition Rate	MHz	80~100	Customizable
Pulse Energy	nJ	>10
Polarization	-	Line	Vertical
DOP	dB	>20dB
Output	-	Free Space
M2	-	<1.2	TEM00
Beam Diameter	mm	≤1.6	* 1/e2 Waist Diameter
Divergence Angle	mrad	<1.5
Worm Up time	min	< 1

General Parameters	Unit	Value	Remarks
Synchronous signal Port	-	SMA
Operation temperature	°C	5 ～ 45
Power Supply	-	AC 110~240VAC	Power <40W
Dimension	mm	330(W)×398(D)×112(H)	Benchtop
Weight	kg	≤5

Ordering Information/Product Code
SMR-FSPL	WL(nm)	Pulse Duration(fs)	Power(mW)	Freq (MHz)	Fiber	Packaging
	1560	120	1000	80/100	FS=Free Space	B=Benchtop

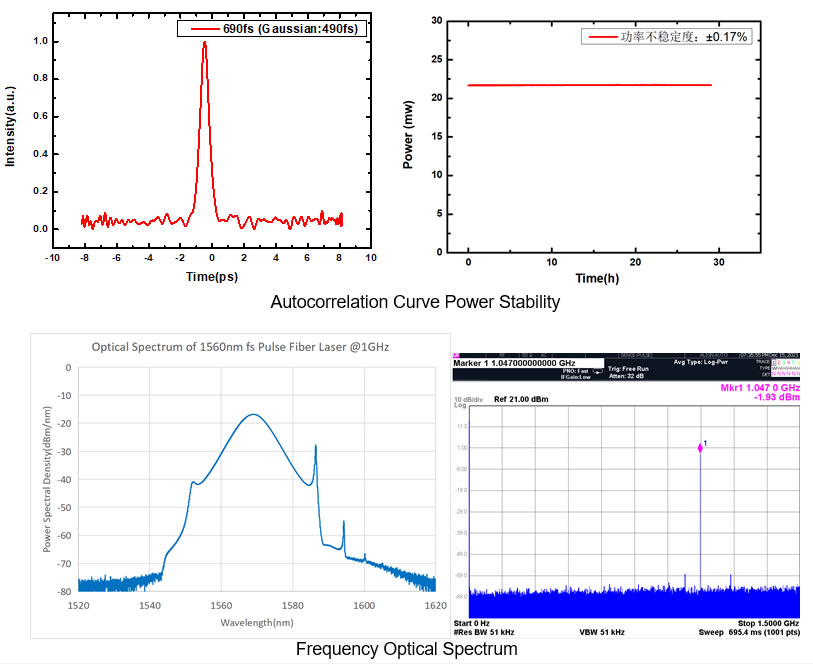

3.1560nm High Frequency Femtosecond Pulse Fiber Laser

E-fiber series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The laser has high repetition rate. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

Pulse duration 50~500 fs
Repetition Rate 200MHz~1GHz Customizable
Turn-Key Product
ALL PM fiber Laser cavity

Applications

Optical Frequency Comb
Supercontinuum Light
THz Generation
Ultra fast Laser Research

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	1560±10
Spectrum Width	nm	20
Pulse Duration	fs	50 ~ 500	Customizable
Average Power	mW	1 ~ 200	Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	≥ 200	200MHz~1GHz
Repetition Rate Instability	Hz	< 200
Pulse Energy	nJ	> 1
Polarization	-	Linear	Aligned to Slow Axis
Fiber Type	-	PM fiber, 1m
Fiber connector	-	FC/APC
Worm Up time	min	< 1

General Parameters	Benchtop	Module
Control function	Push Button in Front Panel	RS232 Serial Port
Synchronous electrical signal port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)	200(W)×121(D)×65(H)
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Product Code
SMR-FSPL	WL(nm)	Pulse Duration(fs)	Power(mW)	Freq (MHz)	Fiber	Packaging
	1560	50/100/200/500	10/50/100	200/600/1000	SM PM	B=Benchtop M=Module

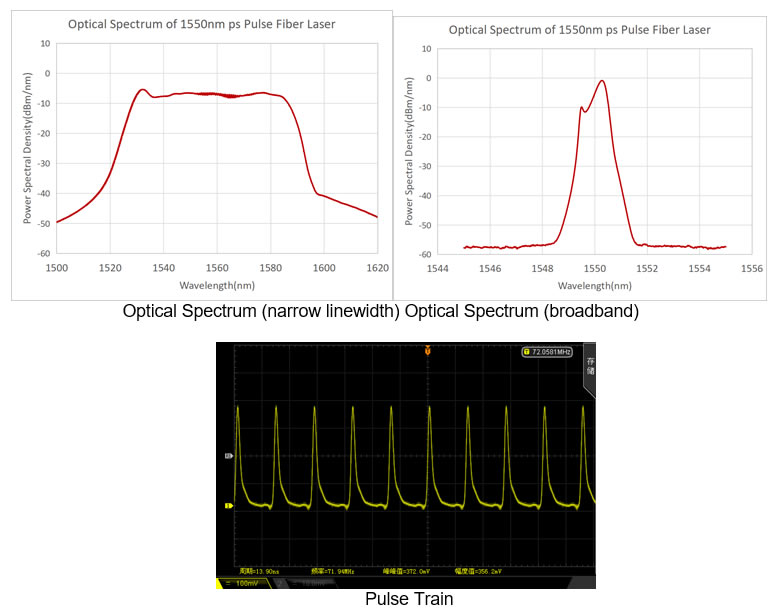

4.1560nm Picosecond Pulse Fiber Laser

Specific combination of pulse duration, repetition rate and average power is customizable.

Features

Pulse Duration 1~100ps
Center Wavelength 1530~1560 nm
Turn-Key Product
ALL PM fiber Laser cavity

Applications

Optical Frequency Comb
Supercontinuum Light
THz Generation
Ultra fast Laser Research

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	1530~1560	Customizable
Spectrum Width	nm	0.5~50
Pulse Duration	ps	1/10/50/100	Customizable
Average Power	mW	1~120	Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	80	Customizable
Repetition Rate Instability	Hz	< 100
Pulse Energy	nJ	>1
Polarization	-	Linear	Aligned to Slow Axis
Fiber Type	-	PM Fiber
Fiber connector	-	FC/APC
Worm Up time	min	< 1

General Parameters	Benchtop	Module
Control function	Push Button in Front Panel	Push Button in Front Panel
Synchronous electrical signal port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)	200(W)×121(D)×65(H)mm
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Product Code
SMR-PSPL	WL(nm)	Pulse Duration(fs)	Power(mW)	Freq (MHz)	Fiber	Packaging
	1560	50/100/200/ 500	10/50/100	80/100	SM PM	B= benchtop M=Module

5.780nm Femtosecond Pulse Fiber Laser

The 780nm is generated by second-harmonic of 1560nm. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on. Specific combination of pulse duration, repetition rate and average power is customizable.

Features

100fs
Turn-Key Product
All PM fiber Laser cavity

Applications

multiphoton
two-photonabsorption
UltrafastOptics

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	780±10
Spectrum Width	nm	20
Pulse Duration	fs	<100	Customizable
Average Power	mW	>30	Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	80	Customizable
Repetition Rate Instability	Hz	< 100
Pulse Energy	nJ	> 0.4
Polarization	-	Linear
Fiber Type	-	Free Space
Fiber connector	min	< 1

General Parameters	Benchtop	Module
Control function	Push Button in Front Panel	Push Button in Front Panel
Synchronous electrical signal port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)mm	200(W)×121(D)×65(H)mm
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Product Code
SMR-FSPL	WL (nm)	Pulse Duration(fs)	Power (mW)	Freq (MHz)	Fiber	Packaging
	780	50/100/200/500	1/10/50/ 100	80/100	FS=Free Space	B= benchtop M=Module
