532nm DPSS Lasers

Keywords: DPSS Laser,Diode end-pumped laser, 1064nm, 532nm, 355nm

Sep 11, 2020 View: 2101 Data Sheet

Thanks to the integrated design, the product has compact structure, small size, light weight, low power consumption, stable operation over time and good beam quality. The laser’s driver has a simple design and a user-friendly operation interface.

Online submission 1392360513 sales@SintecOptronics.cn

STL Series DPSS 532nm Green Lasers

Laser head and power supply are individual and the laser head is compact
The laser is controlled via built-in panel and RS232
Widely used in 3C electronic applications and laser marking of metals and non-metals, glass cutting, 3D printing, surface film removing etc.

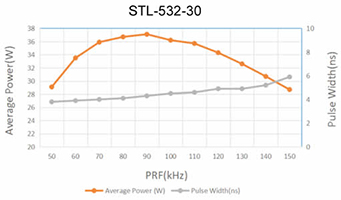

Part number	STL-532-20/40	STL-532-30
Wavelength	532nm	532nm
Output laser power	>20W@50kHz/>40W@80kHz	>30W@100kHz
Beam divergence	<2mrad	<2mrad
Pulse repetition rate	20kHz-200kHz	50kHz-200kHz
Pulse duration	<20ns@50kHz	<10ns@50kHz
Pulse to pulse stability	<3%	<3%
Average power stability	<3%	<3%
Beam spatial mode	TEM00 (M2<1.2)	TEM00 (M2<1.2)
Polarization ratio	>100:1 horizontal	>100:1 horizontal
Beam diameter	<2mm	<2.5mm
Beam circularity	>90%	>85%
Cooling	Water cooling	Water cooling
Warm-up time	<15min	<15min
Operation temperature	18-35oC	18-35oC
Dimension (laser head)	420x180x105mm	642x210x111mm
Dimension (power supply)	482x392x88mm	430x383x176mm

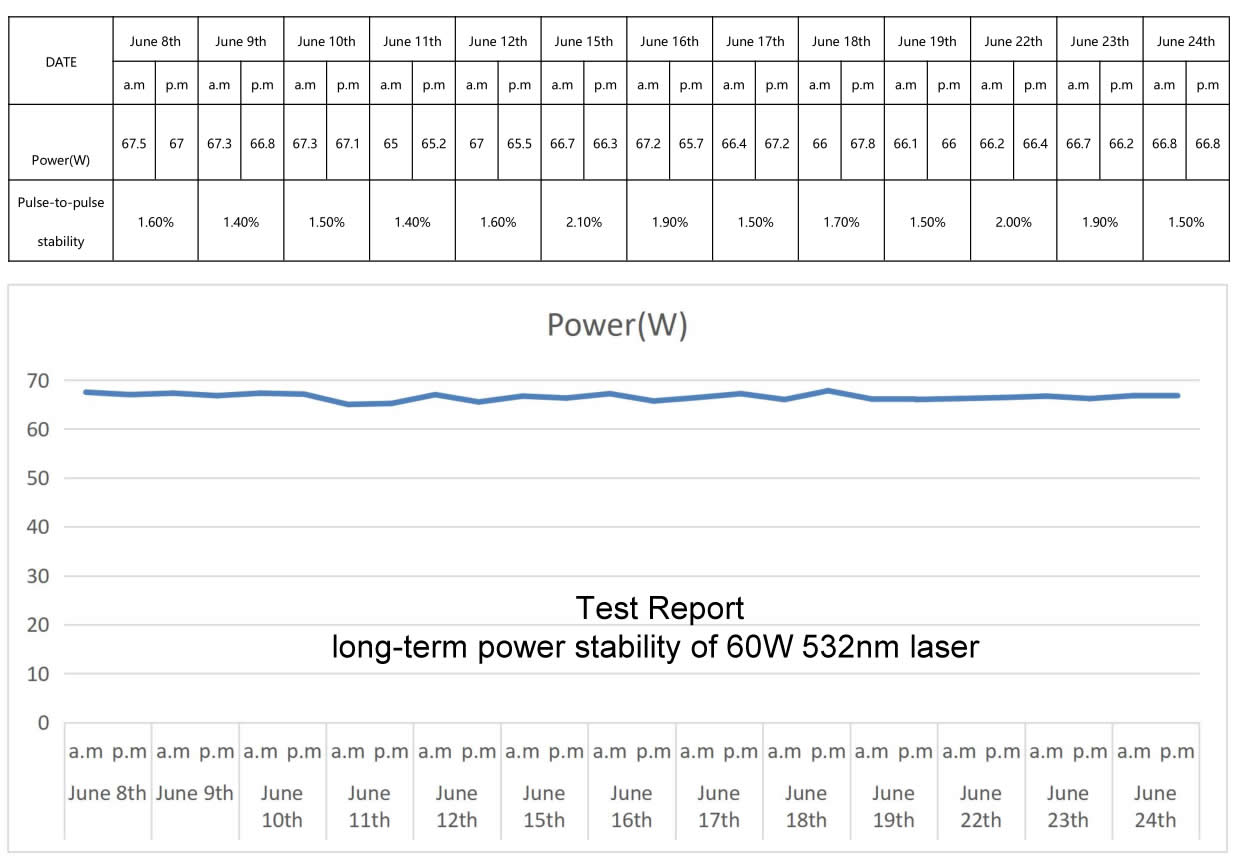

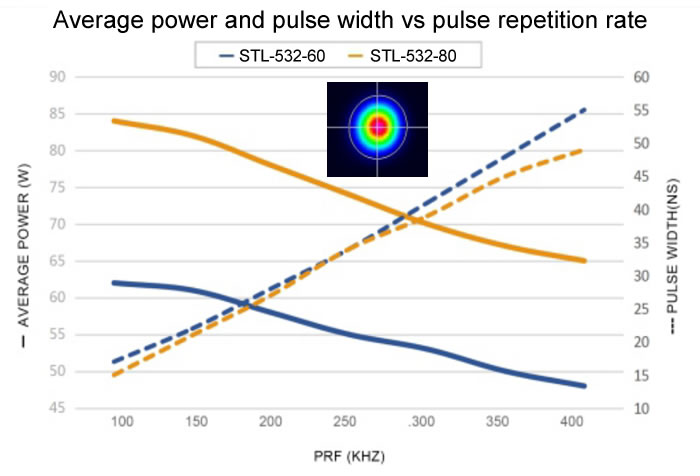

Part number	STL-532-60	STL-532-80
Wavelength	532nm	532nm
Output laser power	>60W@100kHz	>80W@100kHz
Beam divergence	<2mrad	<2mrad
Pulse energy	0.6mJ@100kHz	0.8mJ@100kHz
Pulse repetition rate	100kHz-500kHz	100kHz-500kHz
Pulse duration	<20ns@100kHz	<20ns@100kHz
Pulse to pulse stability	<3%	<3%
Average power stability	<3%	<3%
Beam spatial mode	TEM00 (M2<1.1)	TEM00 (M2<1.1)
Polarization ratio	>100:1 horizontal	>100:1 horizontal
Beam diameter	0.8-1.2mm	0.8-1.2mm
Beam circularity	>90%	>90%
Cooling	Water cooling	Water cooling
Warm-up time	<15min	<15min
Operation temperature	18-35oC	18-35oC
Power supply	220VAC/110VAC	220VAC/110VAC
Power consumption	1300W	1300W
Dimension (laser head)	552x202x138mm	552x202x138mm
Dimension (power supply)	306x188x64mm	306x188x64mm

STJ Lark-Series Lasers

STJ Lark-Series Lasers Includes UV and green light, it adopts a thermal method combining conduction heat dissipation and air convection heat dissipation. The pulse width is narrower, the repetition frequency is higher, the beam quality is high, and the spot roundness is high. In terms of structural design, it is smaller in size, lighter in weight and more beautiful in appearance. In the electronic control design, strong anti-electromagnetic interference capability, high thermal management efficiency, user-friendly GUI interface.

Technical specifications:

Model	STJ-Lark-532-7	STJ-Lark-532-10
Wavelength	532nm
Average Power	>7W@40kHz	>10W@40kHz
Pulse Width	<15ns@40kHz
Pulse Repetition Rate	20kHz-200kHz
Spatial Mode	TEM ₀₀
Beam Quality M²	M² ≤ 1.2
Beam Roundness	>90%
Beam Divergence	≤2mard
Beam Diameter	Non-expanding 0.7±0.1mm
Polarization Ratio	> 100:1
Polarization Dircetion	Horizontal
Average Power Stability	RMS ≤ 3% @ 24hs
Pulse Stability	RMS ≤ 3% @ 40hs
Operating Temp & RH	10-35℃;<80%
Storage Temp & RH	-15~50℃;<90%
Cooling	Air
Supply Voltage	DC 12V
Average Power Consumption	< 300W
Size	236 × 118 × 110
weight	Laser Head：4kg
	Power Control ：7kg

STJ Seal-Series Lasers

The STJ Seal-Series Lasers includes both UV and green lasers with excellent beam quality and perfect spot characteristics. The whole machine adopts integrated structure design, and the optical path and external drive circuit are integrated, which makes the product have strong anti-interference ability. Optimize and upgrade the fully sealed structure to prevent external dust. At the same time, the isolation of external water molecules make the machine have strong resistance of humidity, making the SEAL series adaptable to harsher industrial environments. In addition, a self-cleaning system in the cavity allows longer lifetime of the machine.

Technical specifications:

Model	STJ-Seal-532-20S	STJ-Seal-532-30S
Wavelength	532nm
Average Power	>20W@80kHz	>30W@80kHz
Pulse Width	<12ns@80kHz	<12ns@80kHz
Pulse Repetition Rate	40kHz-300kHz
Spatial Mode	TEM ₀₀
Beam Quality M²	M² ≤ 1.2
Beam Roundness	>90%
Beam Divergence	≤2mard
Beam Diameter	Non-expanding: 0.8±0.1mm
Polarization Ratio	> 100:1
Polarization Direction	Vertical
Average Power Stability	RMS ≤ 3% @ 24hs
Pulse Stability	RMS ≤ 3% @ 80kHz
Operating Temp & RH	10~40℃;<80%
Storage Temp & RH	-15~50℃;<90%
Cooling	Water
Supply Voltage	DC 12V
Average Power Consumption	350W	400W
Size	337 × 180 × 114mm
Weight	14kg

STC Series 532 nm Green Solid State Lasers

We offer the diverse of 532nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20W available. For Q-switched operating mode lasers, the high power laser series is up to 200W available, and high energy laser series is up to 450mJ available.

(1) High Stability Laser	Perfect beam quality; Long-term stability<1%
(2) Low Noise Laser	RMS noise<1.0% ( <0.5% optional); Linewidth <0.003nm optional
(3) Single Frequency Lasers (Single Longitudinal Mode)	Ultra low noise<0.5%; Line width <0.00001nm
(4) Q-switched Laser	ns laser (pulse width 1-100ns)
(5) Mode-locked & ps Laser	Mode-locked laser (pulse width down to 10ps)
(6) Fiber Laser	Modulation up to 80MHz; Pulse width down to 10ps
(7) Line Generated Laser	Line uniformity<20%; Line straightness ±0.1%
(8) OEM Laser Module	Ultra compact; Industrial integration

1. 532nm High Stability Laser Series

High stability 532 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Confocal microscopy
Laser medical treatment
Scientific experiment
Laser lighting show
Optical instrument

Model	Operating mode	Output power	Power stability	M² factor
STC-MGL-DS-532	CW	1~150mW	<1%	<1.2 ( <1.1 optional)
STC-MXL-SM-532	CW	1~200mW	<1%	/
STC-MGL-III-532	CW	1~300mW	<1%	<1.2 ( <1.1 optional)
STC-MGL-S-532	CW	1~300mW	<1%	<1.2 ( <1.1 optional)
STC-STC-MGL-FN-532	CW	400~1500mW	<1%	<1.2 ( <1.1 optional)
STC-STC-MGL-F-532	CW	1500~2500mW	<1%	<1.1
STC-MGL-N-532	CW	3~5W	<1%	<1.3
STC-MGL-R-532	CW	1~5W	<1%	<1.3
STC-OEM-N-532-Water	CW	1~5W	<1%	<1.3
STC-MGL-W-532-HQ	CW	1~10W	<1%	<1.2
STC-MGL-V-532	CW	5~15W	<1%	<1.2
STC-MGL-W-532	CW	5~20W	<1%	<1.5
STC-MGL-D-532	CW	20~30W	<1%	/
STC-HPL-532-CW	CW	1~80W	<3%	/
STC-HPL-532-Q	QCW	20~40W	<3%	/
STC-HPL-532-QM	QCW	40~100W	<3%	/
STC-HPL-532-QL	QCW	100-200W	<3%	/
STC-MGL-III-532-AOM	High modulation up to 1 MHz	1~150mW	<1%	1.5
STC-MGL-FN-532-AOM	High modulation up to 1 MHz	150~400mW	<1%	<1.5

2. 532 nm Low Noise Laser Series

High performance CW, ultra low noise 532 nm lasers, narrow spectrum linewidth<0.003 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Fluorescence microscopy
DNA sequency, flow cytometry
Particle measurements
Spectrum analysis
Chip inspection

Model	Output power (mW)	Noise of amplitude (rms, 20Hz-20MHz)	M² factor	Spectral line width (nm)
STC-MLL-III-532	1~300	<0.5%	<1.2 ( <1.1 optional)	<0.1
STC-MLL-S-532	1~300	<0.5%	<1.2 ( <1.1 optional)	<0.1
STC-MLL-U-532	1~400	<0.5%	<1.2	<0.003
STC-MLL-FN-532	1~1000	<0.5%	<1.2 ( <1.1 optional)	<0.2 ( <0.003 optional)
STC-MLL-F-532	1500~2500	<1%	<1.1	<0.1 ( <0.003@1.5W)
STC-MGL-R-532	1~5 W	<1%	<1.3	<0.003
STC-MLL-N-532	3~5 W	<1%	<1.3	<0.1 ( <0.01@3W)
STC-MLL-W-532	5~20 W	<1%	<3.0	<0.1 ( <0.01@5W)
STC-OEM-V-532-LN	5~30 W	<1%	<1.2	<0.1

3. 532nm Single Longitudinal Mode Laser Series

High performance CW, single longitudinal mode, ultra low noise 532 nm lasers, narrow spectrum linewidth<0.00001nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Confocal microscopy
RAMAN spectroscopy
Particle measurements
DNA sequency, Flow cytometry
Digital imaging, Analytical chemistry

Model	Operating mode	Output power (mW)	Fiber coupling options	AOM option
STC-MSL-III-532	CW	1~100	SM/ PM/ MM	yes
STC-MSL-S-532	CW	1~100	SM/ PM/ MM	yes
STC-MSL-DS-532	CW	1~100	SM/ PM/ MM	yes
STC-MSL-U-532	CW	1~200	SM/ PM/ MM	yes
STC-MSL-FN-532	CW	200~400	SM/ PM/ MM	yes
STC-MSL-FN-532-S	CW	200~400	SM/ PM/ MM	yes
STC-MSL-F-532	CW	400~700	SM/ PM/ MM	yes
STC-MSL-RA-532	CW	700~2000	MM	/
STC-MSL-R-532	CW	2000~10000	MM	/
STC-MSL-III-532-AOM	High modulation up to 1MHz	1~30	SM/ PM/ MM	/
STC-MSL-FN-532-AOM	High modulation up to 1MHz	30~200	SM/ PM/ MM	/
STC-MSL-AO-532	Q- switched	1~100uJ@1Hz~1kHz, 20ns	MM	/

4. 532nm Q-switched Laser Series

We offer diverse of Q-switched 532 nm lasers in passively and actively modes. With pulse width in short nanosecond, and single pulse energy up to 450mJ. Are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, and medical device manufacturing.

Applications:

Scientific Research
Life Science & Medical
Materials Processing
Microelectronics
OEM Integration

Model	Single pulse energy	Repetition rate	Pulse width (ns)	Operating mode (Q-switched)
STC-MPL-III-532	1-5 μJ	1-20 kHz	~5 (1.3 optional)	Passively
STC-MPL-T-532	1-10 μJ	0.1-15 kHz	~0.5	Passively
STC-MPL-SU-532	5-40 μJ	1-15 kHz	~1.3/ ~4	Passively
STC-MPL-H-532	5-50 μJ	1-30 kHz	~5 (1.3 optional)	Passively
STC-MPL-U-532	20-60 μJ	4-12 kHz	~4 (1.3 optional)	Passively
STC-MPL-N-532	50-125 μJ	1 k-15 kHz	~5	Passively
STC-AO-N-532	1-60 μJ	1-50 kHz	~10<10 kHz	Acousto-optic
STC-AO-S-532	1-100 μJ	0.1-50 kHz	5-10 @<10 kHz	Acousto-optic
STC-AO-W-532	1-300 μJ	1-50 kHz	~10 @<10 kHz	Acousto-optic
STC-AO-V-532	1-300 μJ	1-200 kHz	<15 @25 kHz	Acousto-optic
STC-AO-L-532	1-600 μJ	0.001-200 kHz	~6 @5 kHz	Acousto-optic
STC-AO-X-532	1-670 μJ	30-100 kHz	~15 @30 kHz	Acousto-optic
STC-AO-U-532	500 μJ-1 mJ	1-3 KHz	<15 @3 kHz	Acousto-optic
STC-EO-XS-532	1-125 μJ	1-100 kHz	~3.5 @40 kHz	Electro-optic
STC-EO-S-532	1-70 μJ	1-1000 Hz	~6	Electro-optic
STC-EO-532-G	0.2-0.5 mJ	1 Hz-25 kHz	<8 @5 kHz	Electro-optic
STC-EO-532-H	0.5-1 mJ	1-10 kHz (fixed)	<6 @5 kHz	Electro-optic
STC-EO-532-N	0.5-2 mJ	1 Hz-25 kHz	<6 @ <7 kHz	Electro-optic
STC-DPS-532-Pico	2-10 W	0.1-10 MHz	<50 ps	Electro-optic
STC-DPS-532-H	1-10 mJ	1-1000 Hz	<4	Electro-optic
STC-DPS-532-E	1.5-4 mJ	1-50 Hz	<4	Electro-optic
STC-DPS-532-A	1-5 mJ	1-10 Hz	<10	Electro-optic / Passively
STC-DPS-532-B	5-15 mJ	1-10 Hz	<10	Electro-optic
STC-DPS-532-BS-D	15-50 mJ	1-20 Hz	<10	Electro-optic
STC-DPS-532-Q	2-20 mJ @1-1000 Hz	1-1000 Hz	~10	Electro-optic
STC-DPS-532-J	1-20 mJ	1-20 Hz	~10	Electro-optic
STC-HPL-532-QT	1-13W	5-10 kHz	~150 @10 kHz	Acousto-optic
STC-HPL-532-Q	2-4mJ @10kHz	10-20 kHz	~100 @10 kHz	Acousto-optic
STC-HPL-532-QM	1-6mJ @15kHz	15 kHz	~100 @15 kHz	Acousto-optic
STC-HPL-532-QL	7-13mJ@15kHz	15 kHz	~100 @15 kHz	Acousto-optic
STC-HPL-532-QS	1-4.5mJ@10kHz	10 kHz	~5	Acousto-optic
STC-LPS-532-A	30-100 mJ	1-10 Hz	~10	Electro-optic
STC-LPS-532-S	30-150 mJ	1-20 Hz	~10	Electro-optic
STC-LPS-532-L	200-450 mJ	1-10 Hz	~10	Electro-optic

5. 532nm Mode-locked & Picosecond Laser Series

Superior beam quality, best reliability, mode-locked & picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.

Applications:

Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument

Mode-locked Type:

	Wavelength (nm)	Output power (mW)	Pulse duration (ps)	Rep. rate (MHz)	Operating mode	Transverse mode
STC-PS-R-532	532	1-3000	<20	48±1	Mode-locked	TEM00
STC-PS-HR-532	532	1-2 W	~15@500kHz&2 W	100-1000kHz	Mode-locked	TEM00

Fiber Laser Type:

	Wavelength (nm)	Output power (mW)	Pulse duration (ps)	Rep. rate (MHz)	Operating mode	Transverse mode
STC-FL-532-PS	532	1-150	<10	20-80 (Fixed)	Mode-locked	TEM00
STC-FL-532-Pico	532	1-1000	100-900	0.1-80 (variable)	Pulsed	TEM00

Diode Pumped Laser Type:

	Wavelength (nm)	Output power (mW)	Pulse duration (ps)	Rep. rate (MHz)	Operating mode	Transverse mode
STC-DPS-532-Pico	532	2-10 W	<50 ps	0.1-10 MHz	Pulsed	TEM00

6. 532nm Fiber Lasers

We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.

Model	Wavelength (nm)	Output power (mW)	Pulse width	Modulation rate	Longitudinal mode	Polarization
STC-FL-532-PS	532	1-150	<10 ps	20-60 MHz	Multi-	>15dB
STC-FL-532-Pico	532	1-1000	100-900 ps	0.1-20 MHz	Multi-	>15dB
STC-FL-532-Nano	532	1-1000	0.5-50 ns	0.1-1 MHz	Multi-	>15dB
STC-FL-532-AO	532	10-100 nJ	0.5-50 ns	1-1000 Hz	Multi-	Random/ >15dB

7. 532nm OEM Laser Modules

Green laser module at 532 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.

High Power OEM Laser		STC-OEM-S-532/ 1~300mW STC-OEM-U-532/ 300~1500mW STC-OEM-N-532/ 2000~5000mW STC-OEM-N-532-Water/ 1~5W Water cooled STC-OEM-W-532/ 5~18W STC-OEM-W-532-Water/ 5~10W Water cooled STC-OEM-I-532/ 5W Ultra compact STC-OEM-SW-532/ 10W Low heat STC-OEM-V-532/ 5~15W Water cooled STC-OEM-D-532/ 20-30W STC-OEM-D-532-Water/ 20-30W Water cooled
Compact Laser Module		STC-PGL-I-R-532/ 1~50mW STC-S-GDL-532/ 1~80mW STC-PGL-VI-532/ 1~80mW STC-PGL-H-532/ 1~500mW STC-PGL-H1-532/1~800mW Beam divergence < 1.5 mrad
Compact Laser Module		STC-PGL-XII-E-532/ 1~50mW STC-PGL-FS-532/ 1~50mW STC-PGL-V-H-532/ 1~300mW
Fiber Coupled Laser Module		STC-PGL-FC-532/ 1~50mW
