Pulsed Fiber Lasers

Pulsed Fiber Lasers

Keywords: fiber laser,pulsed,marking,cutting, film cutting
Jun 16, 2021 View: 1399 Data Sheet

The pulsed fiber laser have many industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

We are promoting 3D Six Axis Robot Laser Cutting Machine, please click here for more info!
Online submission 1392360513 sales@SintecOptronics.cn

1. STR Series 10-100W Q-Switched Pulse Fiber Laser

The STR Series 10-100W Q-Switched Pulse Fiber Laser is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser. All components of the 10-100W Q-switched pulse fiber laser are developed by us independently, with high product reliability. And its good compatibility has well recognized by the market and its quality has reached the international advanced level.

fiber laser

Features:

  • Highly stable laser output

  • High single-pulse energy

  • High marking efficiency

  • Short pulse setup time

  • High reliability

  • Maintenance-free operation

Technical specifications:

Model STR-P10QE STR-P20QE STR-P30Q STR-P50Q STR-P50QB STR-P100Q
Average output power (W) 10 20 30 50 50 100
Central wavelength 1064
Pulse repetition rate (kHz) 20-60 30-60 50-100 20-200
Output power stability <3% <5%
Output beam diameter (mm) 7±1 6.5±1
Polarization Random
Pulse width (ns) 80-100 90-130 90-150 50-130
Maximum pulse energy (mJ) 0.5 1
Delivery cable length (m) 2
Power supply (VDC) 24
Power range (%) 10-100
Power consumption (W) 120 170 240 340 340 450
Size (mm) 391x260x120 396x360x123 391x260x120 396x360x123
Cooling Air
Operation temperature (°C) 0-40

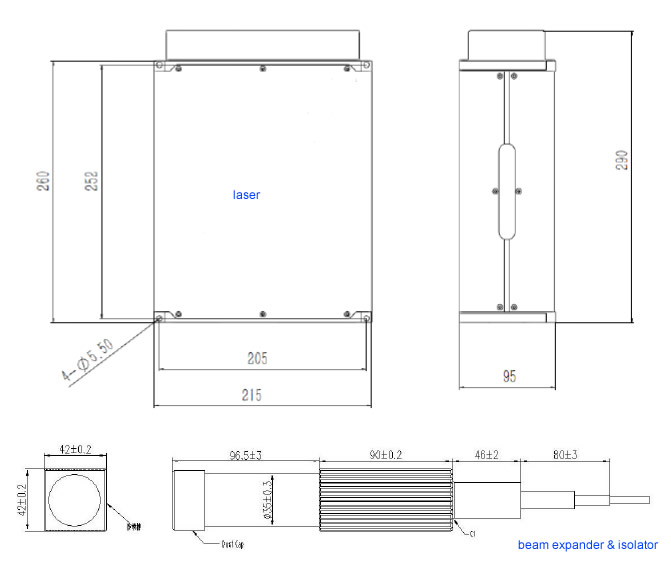

Pulsed fiber laser STR-P20QB STR-P30QB
Wavelength(nm) 1060~1085 1060~1085
Polarization Random Random
Optical isolator Yes Yes
Nominal average output power (W) ≥20 ≥30
Single pulse energy (mJ) 1@20kHz 1@30kHz
Beam quality(M2) <1.5 <1.5
Beam Diameter(mm) 7±1 7±1
Pulse duration(ns) <120@20kHz <120@30kHz
Pulse repetition rate(kHz) 20 - 60 30 - 60
Output Power Tunability(%) 10-100 10-100
Output Fiber Cable length(m) 2.0 2.0
Working voltage(VDC) 24±1 24±1
Power consumption(W) 200@20℃ 300@20℃
Cooling Forced Air Cooled Forced Air Cooled
Dimension W×D×H(mm) 215×286×95 215×286×95
Operating temperature(℃) 0～40
Store temperature(℃) -20～60
Operating Humidity(%) ≤80%
Model STR-P20QS STR-P30QS
Average output power (W) ≥20 ≥30
Central wavelength 1064 1064
Pulse repetition rate (kHz) 30 - 60 40 - 60
Output power stability <3% <3%
Output beam diameter (mm) 6-8 6-8
Polarization Random Random
Pulse width (ns) 110-140 @30kHz 130-150 @40kHz
Maximum pulse energy (mJ) 0.67 0.75
Beam quality (M2) <1.5 <1.6
Power supply (VDC) 24±1 24±1
Power range (%) 10-100 10-100
Power consumption (W) 200@20℃ 300@20℃
Size (mm) 290*215*95 290*215*95
Cooling Air Air
Operation temperature (°C) 0～40 0～40

Remarks: STR-PQE, -P20QS and –P30QS are economic versions. Others are high-quality versions.

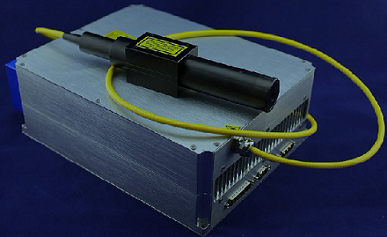

2. STR Series Short-pulse High-power Fiber Lasers

The brand-new short pulse fiber laser Series has a variety of pulse width options, including high average power (10-2000W), high-peak power (≤15kW) and 2-350ns, adjustable repetition frequencies of 10-1000kHz, short pulse setup time (≤100µs), online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

pulse fiber laser

Features:

  • Common control interface

  • Extremely wide operating frequency range

  • A variety of pulse width options

  • Online modifiablepulse width

  • Short pulse setup time

  • High light beam quality

  • Aircoolingdesign

Technical specifications:

Model STR-P200 STR-P300 STR-P500
Central Emission wavelength (nm) 1064 1064 1064
Nominal average output power (W) 200@20-50kHz 300@30-50kHz 500@20-50kHz
Nominal average output power (W) 100@10kHz 250@20kHz 200@10kHz
Pulse repetition rate (kHz) 10-50 20-50 10-50
Laser power stability (8hrs) <5% <5% <5%
Polarisation Random Random Random
Pulse width (ns) 90-130 120-140 80-160
Maximum Pulse energy (mJ) 10@20kHz 12.5@20kHz 25@20kHz
Fiber core dia. (um) 100 100 200
Fiber length (m) 5.0 5.0 10.0
Output power tunability (%) 10-100 10-100 10-100
Operating voltage 220VAC 220VAC 220VAC
Cooling Air Water Water
Operating temperature (oC) 0-40 0-40 0-40
Dimension WxDxH (mm) 485x237x764 485x237x764 502x254x755

3. MOPA Pulsed Fiber Lasers

3.1 STR Series MOPA Pulsed Fiber Lasers

The MOPA pulsed fiber lasers have the features such as high average power (20-200W), high peak power (15kW), tunable pulse widths from 2ns to 500ns and as high pulse repetition rate as 2000kHz. These lasers are ideal for applications such as solar , film cutting, thin material cutting, high resolution marking etc.

Technical specifications:

Model STR-P20MB STR-P60M STR-P100M
Central Emission wavelength (nm) 1064 1064 1064
Polarization Random Random Random
Nominal average output power (W) 20 60 100
Maximum Pulse energy (mJ) 0.5 1.0 1.0
Pulse repetition rate (kHz) 10-1000 20-1000 20-1000
Pulse width (ns) 2-350 10-350 10-350
Typical beam quality (M2) <1.3 <1.6 <1.6
Collimated beam diameter (mm) 6-8 6-8 5.5-7.5
Output power tunability (%) 10-100 10-100 10-100
Long term power stability (8hrs) <3% <3% <5%
Length of beam delivery fiber (m) 2.0 2.0 2.0
Operating voltage 24VDC 24VDC 220VAC
Typical power consumption (W) 150 350 450
Cooling Air Air Air
Operating temperature (oC) 0-40 0-40 0-40
Dimension WxDxH (mm) 286x215x95 340x260x120 396x360x123

3.2 STJ-LP-Series MOPA Fiber Lasers

STJ-LP-Series Fiber Lasers adopts MOPA (Master Oscillator Power Amplifier) structure, diode laser as seed light, and fiber based power amplification. This laser integrates independence adjustment of pulse width and frequency, to make sure a constant pulse energy output, which provides a good combining solution to the requirements of high power laser source and high marking speed.

The extremely flexible pulse width and frequency adjustment, which plays a significant impact on colour formation, enables colour or silver shining marking on stainless steel.

Features:

  • Flexible & independent control of pulse width & frequency

  • Selectable pulse shape

  • High repetition frequency

  • No laser leakage

Applications:

  • Marking / Colour marking

  • Ablation

  • Cutting

  • Drilling

  • Scribing

  • Soldering

  • Trimming

  • Engraving

Technical specifications:

Model STJ-LP-20 STJ-LP-30 STJ-LP-60 STJ-LP-100
M2 <1.3 <1.8
Output cable length (m) 2 3
Average output power (W) >20 > 30 >60 >100
Maximum pulse energy (mJ) 0.8 1.2
Pulse repetition rate at Maximum power (kHz) 25~400 37 ~400 50~400 83~400
Pulse repetition rate (kHz) 1~400
Pulse width (ns) 200 250
Output power stability (%) <5
Cooling Air
Power supply (V) 24
Current (A) <8 < 10 <15 <20
Maximum power consumption (W) 120 140 300 450
Central wavelength (nm) 1064
Pulse width @3dB (ns) <15
Polarization Random
Resist of high reflection Yes
Beam diameter (mm) 7±0.5 6±0.5
Power range (%) 0~100
Operation temperature (°C) 0~40
Storage temperature (°C) -10~60
Weight (kg) 8 10 13.4
Size (mm) laser:315×220×103, isolator: 42.5x42.4x262.5 315×275×99 337×278×120

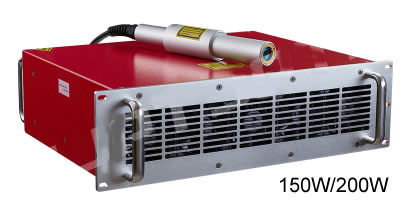

3.3 STJ-M7 Series MOPA Fiber Lasers

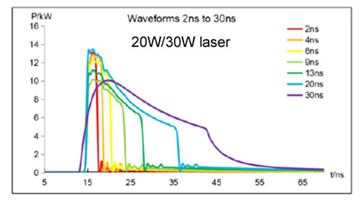

STJ-M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. These lasers are suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.

Application Advantages

  • Scribing, drilling

  • Surface treatment

  • Sheet metal cutting, welding

  • Marking on fly

  • Metal surface processing, peeling coating

MOPA fiber laser

Product number STJ-M7-20-SR STJ-M7-30-SR
M2 <1.3 <1.3
Delivery Cable Length m 2 2
Nominal Average Output Power W >20 >30
Maximum Pulse Energy mJ 0.8 0.8
Pulse Repetition Rate Range kHz 1~4000 1 ~ 4000
Pulse Duration ns 2~350 2 ~ 350
Output Power Stability % <5 <5
Cooling Method Air Air
Supply DC Voltage (VDC) V 24 0.8
Current Consumption A <5 <6
Environmental Supply Current A >5 >6
Power@20℃ W <120 <144
Central Emission Wavelength nm 1064 1064
Emission Bandwidth@3dB nm <15 <15
Polarization Random Random
Output Beam Diameter mm 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0 ~ 100
Operation Temperature ℃ 0 ~40 0 ~ 40
Storage Temperature ℃ -10~60 -10 ~ 60
Weight kg 4.4 4.5
Size(L×W×H) mm 245×200×65 245 × 200 × 65

MOPA fiber lasersMOPA fiber laser

MOPA fiber laser

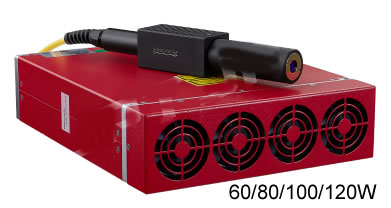

Product Number STJ-M7-60-L1-R STJ-M7-80-L1-R STJ-M7-100-L1-R STJ-M7-120-L1-R
M2 <1.8 <1.8 <1.8 <1.8
Delivery Cable Length m 3 3 3 3
Nominal Average Output Power W >60 >80 >100 >120
Maximum Pulse Energy mJ 1.5 2.0 1.5 1.5
Pulse Repetition Rate Range kHz 1 ~ 4000 1 ~ 4000 1 ~ 4000 1 ~ 4000
Pulse Duration ns 2~500 2~500 2~500 2~500
Output Power Stability % <5 <5 <5 <5
Cooling Method Air Cooled Air Cooled Air Cooled Air Cooled
Supply DC Voltage (VDC) V 48 48 48 48
Current Consumption A <6 <7 <8 <9
Environmental Supply Current A >6 >7 >8 >9
Power@20℃ W <260 <300 <400 <450
Central Emission Wavelength nm 1064 1064 1064 1064
Emission Bandwidth@3dB nm <15 <15 <15 <15
Polarization Random Random Random Random
Output Beam Diameter mm 7±0.5 7±0.5 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0~100 0~100 0~100
Operation Temperature ℃ 0 ~40 0 ~40 0 ~40 0 ~40
Storage Temperature ℃ -10~60 -10~60 -10~60 -10~60
N.W KG 8.5 8.5 13.2 13.2
Size(L×W×H) mm 325 × 260 × 75 325 × 260 × 75 350 × 280 × 112 350 × 280 × 112

MOPA fiber laser

Product Number STJ-M7-150-L1-R STJ-M7-200-L1-R
M2 <1.8 <1.8
Delivery Cable Length m 5 5
Nominal Average Output Power W >150 >200
Maximum Pulse Energy mJ 1.5 1.5
Pulse Repetition Rate Range kHz 1~4000 1~4000
Pulse Duration ns 4 ~ 500 8 ~ 500
Output Power Stability %　 <5 <5
Cooling Method Air Cooled Air Cooled
Supply DC Voltage (VDC) V 48 48
Current Consumption A <12 <16
Environmental Supply Current A >12 >16
Power@20℃ W <600 <800
Central Emission Wavelength nm 1064 1064
Emission Bandwidth@3dB nm <20 <20
Polarization Random Random
Output Beam Diameter mm 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0~100
Operation Temperature ℃ 0 ~ 40 0 ~ 40
Storage Temperature ℃ -10~60 -10~60
N.W KG 24.8 24.8
Size(L×W×H) mm 430×351×133 430×351×133

4. STC Series Compact Fiber Lasers

fiber laser

We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The 1550 nm and 1064nm fiber laser are in single longitudinal and polarized mode. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.

Model Wavelength (nm) Output power(mW) Pulse width Modulation rate Longitudinal mode Polarization
STC-FL-266-PS 266 1-10 <10 ps 20-60 MHz Multi- >15dB
STC-FL-343-PS 343 1-50 <10 ps 20-50 MHz Multi- >15dB
STC-FL-355-PS 355 1-50 <10 ps 20-60 MHz Multi- >15dB
STC-FL-515-PS 515 1-200 <10 ps 20-50 MHz Multi- >15dB
STC-FL-532-PS 532 1-150 <10 ps 20-60 MHz Multi- >15dB
STC-FL-1030-PS 1030 1-2000 <10 ps 20-50 MHz Multi- Random/ >15dB
STC-FL-1030-PS-Seed 1030 0.5-1 <10 ps 20-50 MHz Multi- Random/ >15dB
STC-FL-1064-PS 1064 1-2000 <10 ps 20-60 MHz Multi- Random/ >15dB
STC-FL-1064-PS-Seed 1064 0.5-1 <10 ps 20-60 MHz Multi- Random/ >15dB

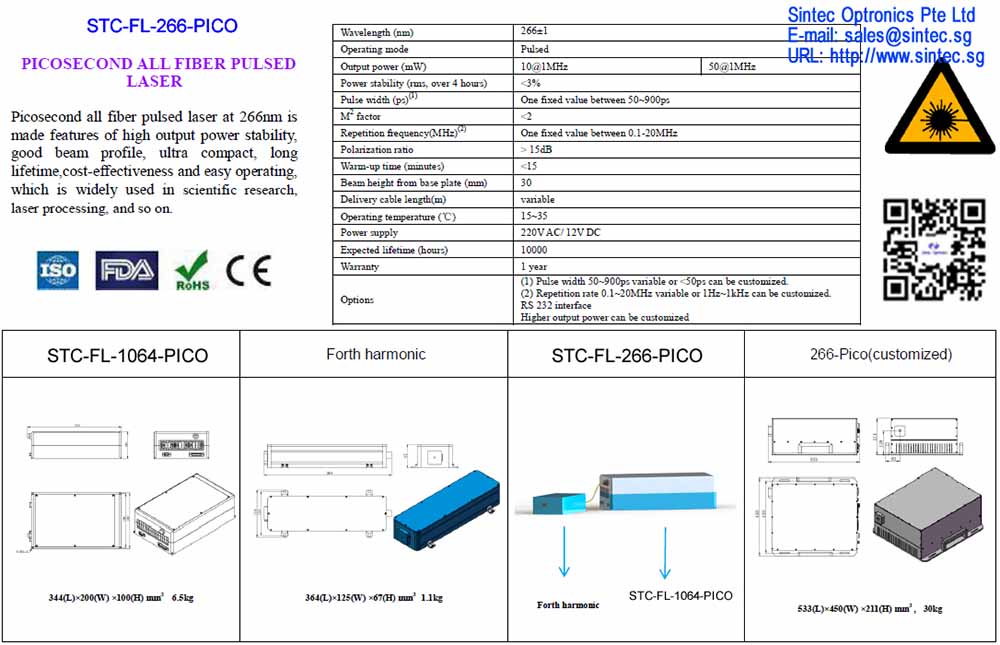

STC-FL-266-Pico 266 1-50 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-343-Pico 343 1-50 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-355-Pico 355 1-50 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-515-Pico 515 1-1000 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-532-Pico 532 1-1000 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-535-Pico 535 1-1000 100-900 ps 0.1-20 MHz Multi- >15dB
STC-FL-1030-Pico 1030 10-5000 100-900 ps 0.1-20 MHz Multi- Random/ >15dB
STC-FL-1064-Pico 1064 10-5000 100-900 ps 0.1-20 MHz Multi- Random/ >15dB
STC-FL-1070-Pico 1070 10-5000 100-900 ps 0.1-20 MHz Multi- Random/ >15dB
STC-FL-1030-S 1030 1 uW-200 mW
Peak power 		5-100 ns
(Adjustable) 		1 Hz-10 MHz Multi- Random/ >15dB

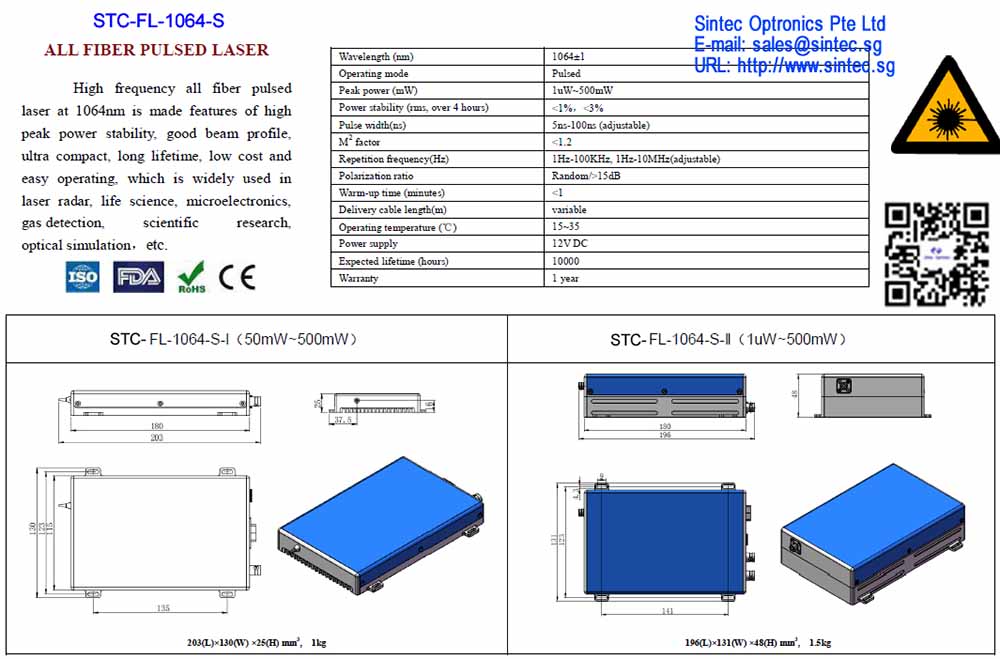

STC-FL-1064-S 1064 1 uW-500 mW
Peak power 		5-100 ns
(Adjustable) 		1 Hz-10 MHz Multi- Random/ >15dB
STC-FL-1550-S 1550 1uW-10 mW
Peak power 		5-100 ns
(Adjustable) 		1 Hz-10 MHz Multi- Random/ >15dB

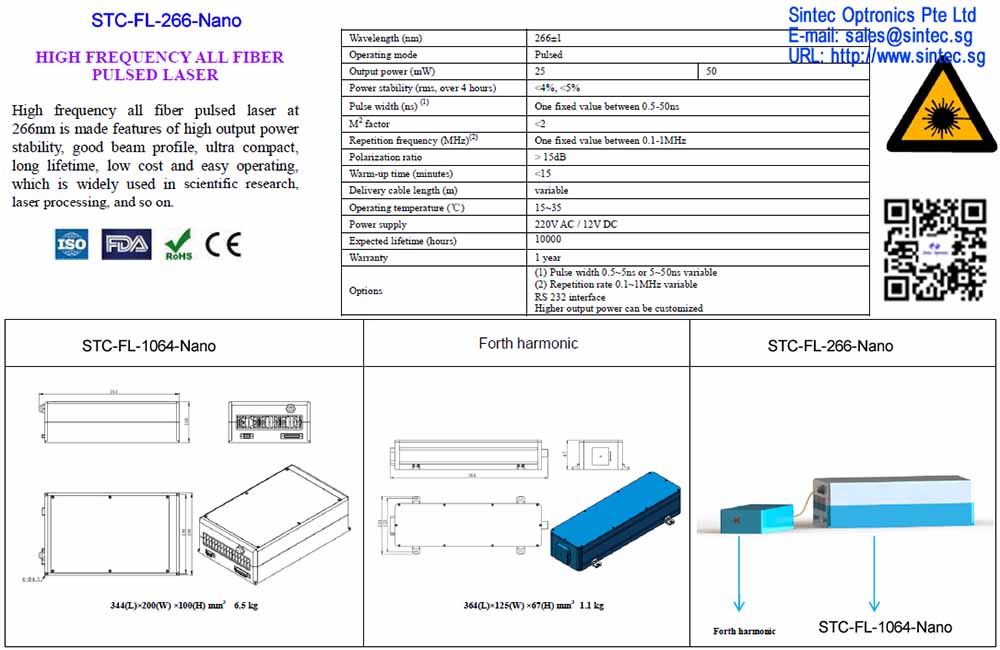

STC-FL-266-Nano 266 1-50 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-343-Nano 343 10-300 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-355-Nano 355 1-300 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-515-Nano 515 1-1000 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-532-Nano 532 1-1000 0.5-50 ns 0.1-1 MHz Multi- >15dB
STC-FL-535-Nano 535 1-1000 0.5-50 ns 0.1-1 MHz Multi- >15dB

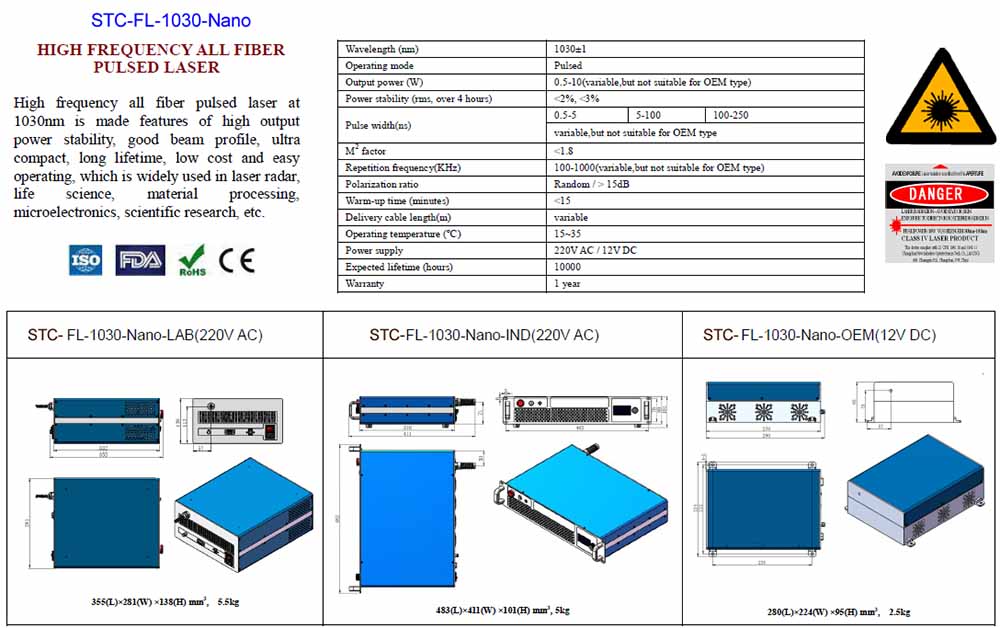

STC-FL-1030-Nano 1030 0.5-10 W 0.5-250 ns
(Variable) 		0.1-1 MHz Multi- Random/ >15dB
STC-FL-1064-Nano 1064 1000-5000 0.5-250 ns
(Variable) 		0.1-1 MHz Multi- Random/ >15dB
STC-FL-1070-Nano 1070 0.5-10 W 0.5-250 ns
(Variable) 		0.1-1 MHz Multi- Random/ >15dB
STC-FL-1550-Nano 1550 50-1000 0.5-50 ns
(Variable) 		50-1000 kHz Multi- Random/ >15dB

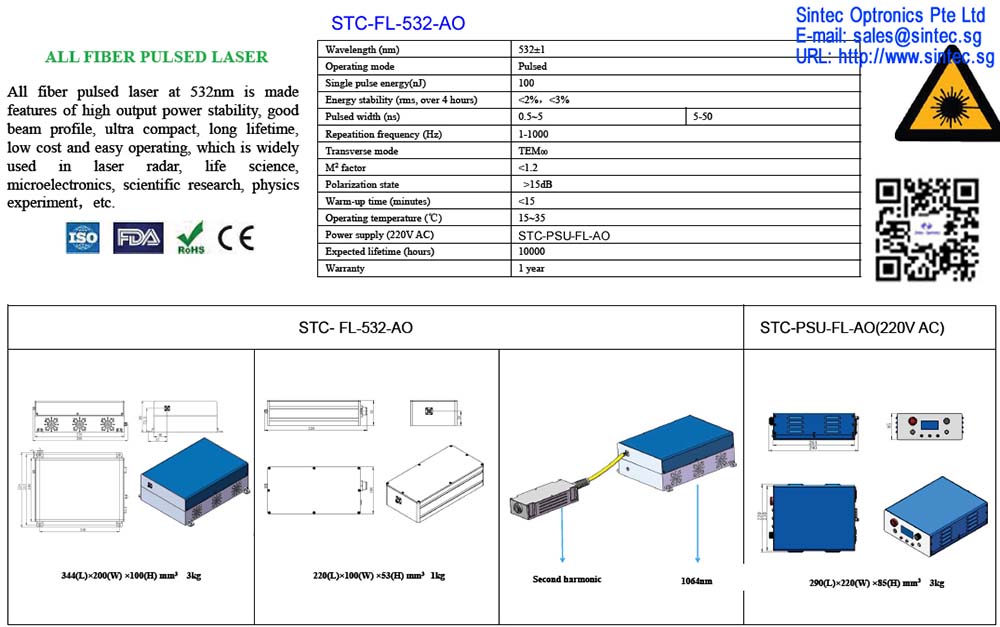

STC-FL-532-AO 532 10-100 nJ 0.5-50 ns 1-1000 Hz Multi- Random/ >15dB
STC-FL-1064-AO 1064 1-20 uJ 0.5-50 ns 1-1000 Hz Multi- Random/ >15dB
STC-FL-1550-AO 1550 1-20 uJ 0.5-50 ns 1-200 Hz Multi- Random/ >15dB

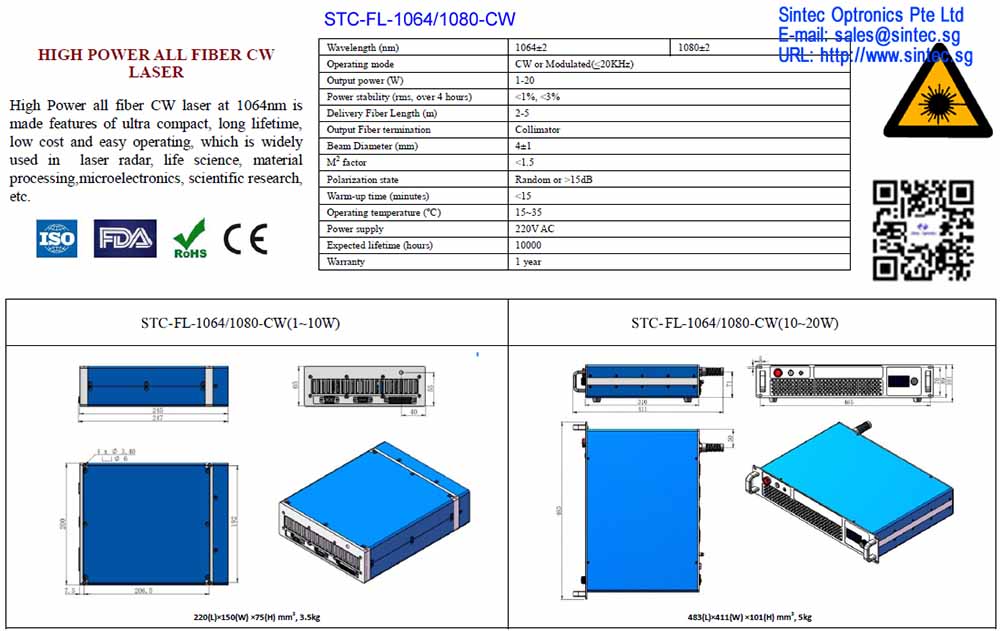

STC-FL-1064-CW 1064 1-20 W N/A CW/ modulated Multi- Random/ >15dB
STC-FL-1080-CW 1080 1-20 W N/A CW/ modulated Multi- Random/ >15dB
STC-FL-1550-CW 1550 1-20 W N/A CW/ modulated Multi- Random/ >15dB

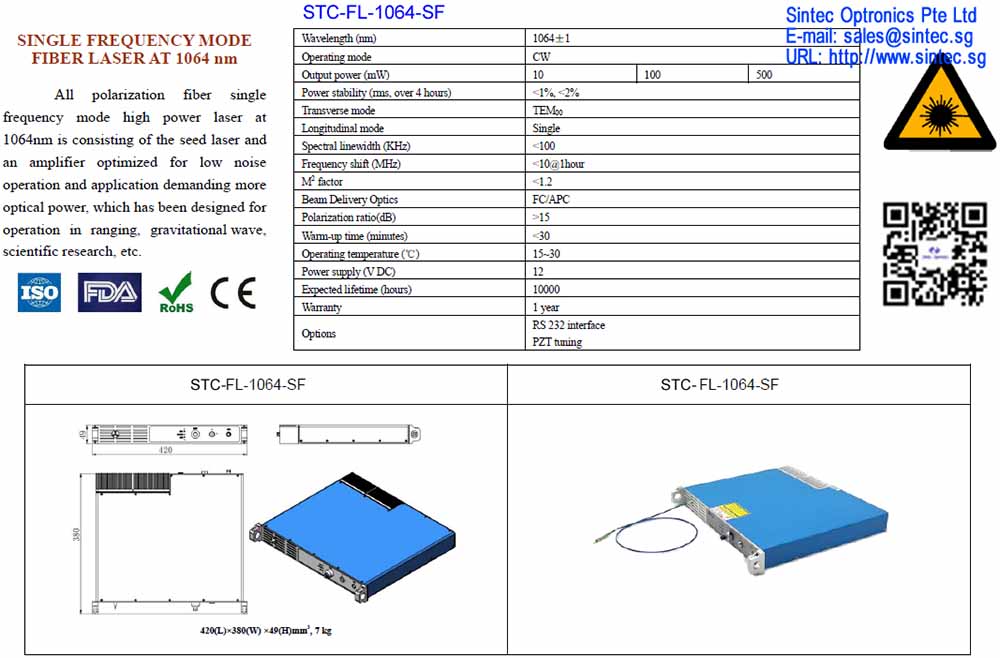

STC-FL-1064-SF 1064 1-500 N/A CW Single >15dB
STC-FL-1550-SF 1550 1-1000 N/A CW Single >15dB
Data Sheet
  • Online submission
  • PrevQCW Fiber Lasers
  • NextMicrochip Lasers

    • Related products

    Hand-held Laser Marker
    Hand-held Laser Marker
    Microchip Lasers
    Microchip Lasers
    CW Fiber Lasers
    CW Fiber Lasers
    Laser Cutting Head
    Laser Cutting Head
    Marking Head (Scanner)
    Marking Head (Scanner)
    3D Six Axis Robot Laser Cutting Machine
    3D Six Axis Robot Laser Cutting Machine
    Precision laser cutting machine for hardware fittings
    Precision laser cutting machine for hardware fittings
    High precision fiber laser cutting machine
    High precision fiber laser cutting machine
    Small flat fiber laser cutting machine
    Small flat fiber laser cutting machine
    Fiber laser material pulling and pipe cutting machine
    Fiber laser material pulling and pipe cutting machine
    3D Six Axis Robot Laser Welding Machine
    3D Six Axis Robot Laser Welding Machine
    Air-cooled handheld laser welding machine
    Air-cooled handheld laser welding machine
    100W Pulse Fiber Laser Cleaning Machine Rust Remover Portable Laser Cleaner
    100W Pulse Fiber Laser Cleaning Machine Rust Remover Portable Laser Cleaner

    Contact Us

    A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.

    Products

    News & Download

    Subscription

    Please enter your e-mail address to subscribe our newsletter and latest product information.

    Copyright © 2024 Wuhan Sintec Optronics Co Ltd

    Send us a message

    CLOSE
