![[New Product] Microchip Lasers](/static/upload/image/Stxl30.jpg)
![[New Product] Single Frequency Lasers](https://www.sintec.sg/static/upload/image/1634777782300297.jpg)
CW DPSS series: CW DPSS lasers cover from 261nm to 1645nm, including the single longitudinal mode lasers, low noise lasers and multimode lasers with stabilized output power and good beam profile.
Direct diode series: The most reliable technology, cover the wavelength from 375nm to 2200nm. The new OEM version integrates the control electronics in the laser head with ultra-compact size.
Q-switched series: Stable single pulse energy, and narrow pulse width in passive and active operating mode. Maximum Single pulse energy is up to 20 J and output power is up to 500 W available.
Tunable series: The output wavelengths can be changed continuously within a certain range. Tunable lasers come with good beam quality, high stability and long life time, they are widely used in spectroscopy, photochemistry, medicine, biology, integrated optics, laser processing
Fiber laser series: Widely used in communication, radar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc.
Mode-locked Picosecond Laser Series: Superior beam quality, best reliability, pulsed duration could be less than 20ps.
High power fiber coupled laser system: Fiber Coupling Laser System have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Available laser wavelengths are 213nm, 223nm, 244nm, 257nm, 261nm, 266nm, 303nm, 320nm, 349nm, 351nm, 355nm, 360nm, 375nm, 395nm, 397nm, 400nm, 405nm, 410nm, 415nm, 420nm, 425nm, 430nm, 440nm, 442nm, 445nm, 447nm, 450nm, 454nm, 457nm, 460nm, 462nm, 465nm, 470nm, 473nm, 480nm, 488nm, 491nm, 501nm, 505nm, 510nm, 514nm, 515nm, 520nm, 522nm, 523nm, 526nm, 530nm, 532nm, 540nm, 543nm, 550nm, 552nm, 555nm, 556nm, 561nm, 577nm, 588nm, 589nm, 594nm, 604nm, 607nm, 612nm, 622nm, 627nm, 633nm, 635nm, 637nm, 639nm, 640nm, 642nm, 650nm, 655nm, 656nm, 660nm, 665nm, 666nm, 671nm, 680nm, 685nm, 689nm, 690nm, 698nm, 705nm, 721nm, 730nm, 750nm, 760nm, 785nm, 786nm, 793nm, 800nm, 808nm, 825nm, 830nm, 845nm, 852nm, 860nm, 879nm, 880nm, 885nm, 905nm, 914nm, 915nm, 940nm, 946nm, 965nm, 975nm, 980nm, 1030nm, 1040nm, 1047nm, 1053nm, 1060nm, 1064nm, 1080nm, 1085nm, 1105nm, 1112nm, 1120nm, 1122nm, 1177nm, 1208nm, 1268nm, 1275nm, 1310nm, 1313nm, 1319nm, 1320nm, 1342nm, 1380nm, 1392nm, 1413nm, 1444nm, 1450nm, 1470nm, 1490nm, 1532nm, 1540nm, 1550nm, 1560nm, 1573nm, 1590nm, 1600nm, 1610nm, 1645nm, 1710nm, 1850nm, 1870nm, 1900nm, 1910nm, 1940nm, 1990nm, 2096nm, 2200nm, 2796nm, 2940nm, 3000nm, 3200nm, 3400nm, 3600nm, 3800nm, 4000nm, 4200nm, 4400nm, 4500nm, 4600nm, 4800nm, 4900nm.
We specialize in designing and manufacturing custom-made and OEM lasers to suit our clients' particular needs. If you don't find a specific product or accessory from above listed products, please contact us for custom-design and fabrication.We can re-design the optical, mechanical, and/or electrical components of the lasers to provide the perfect solution for you.We have the RD, engineering, and production expertise to manufacture the lasers that are able to maintain integrity in various extreme settings and conditions.
| (1) CW UV Laser at 266nm | on request. |

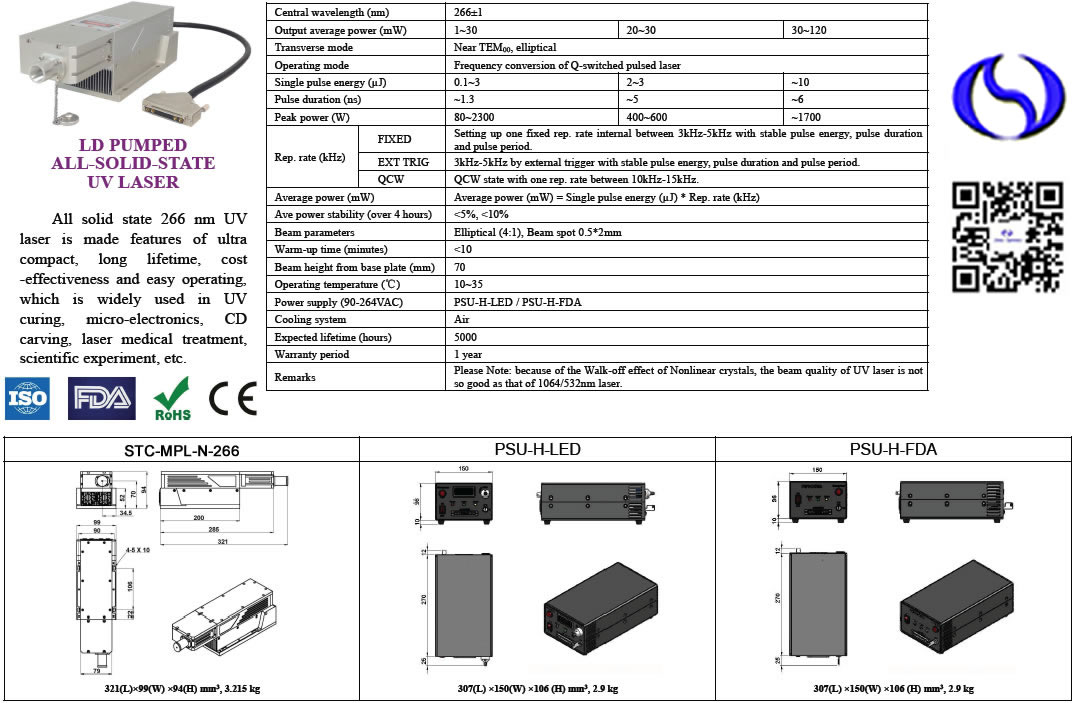

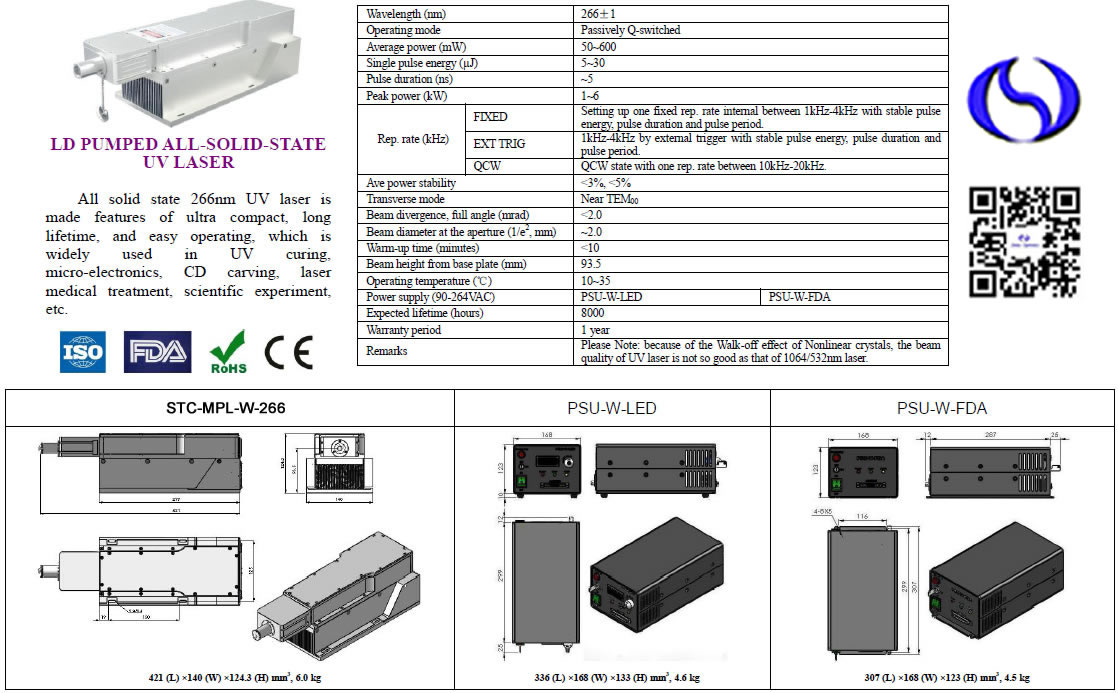

| (2) Passively Q-switched UV Laser at 266nm |
|

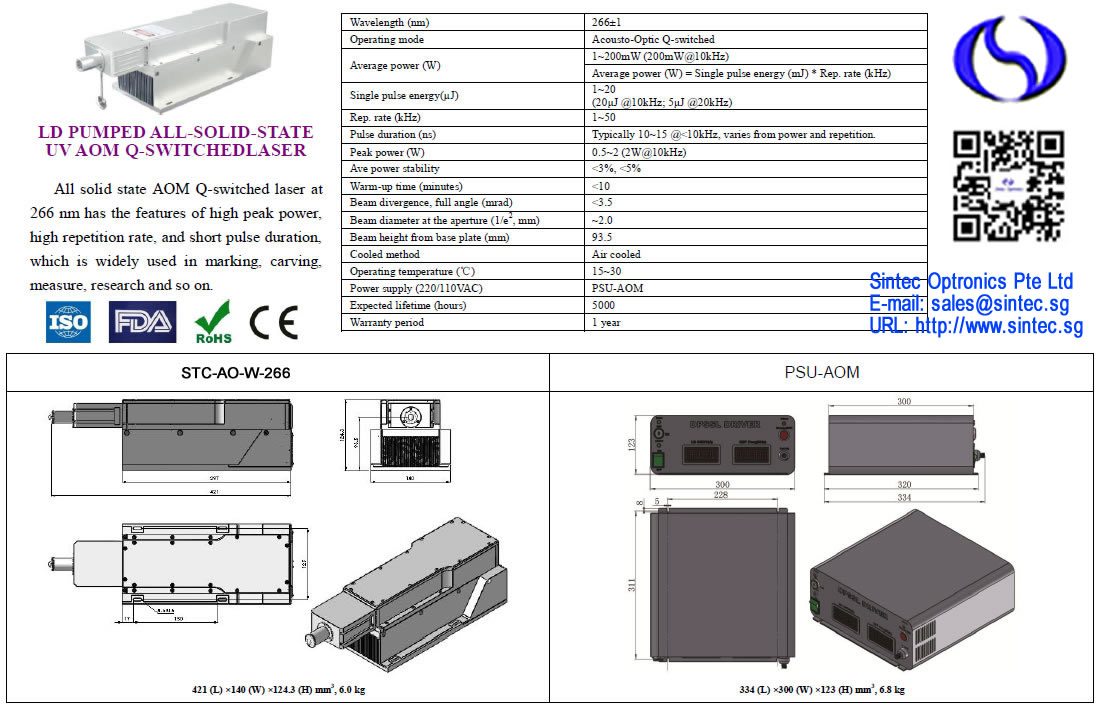

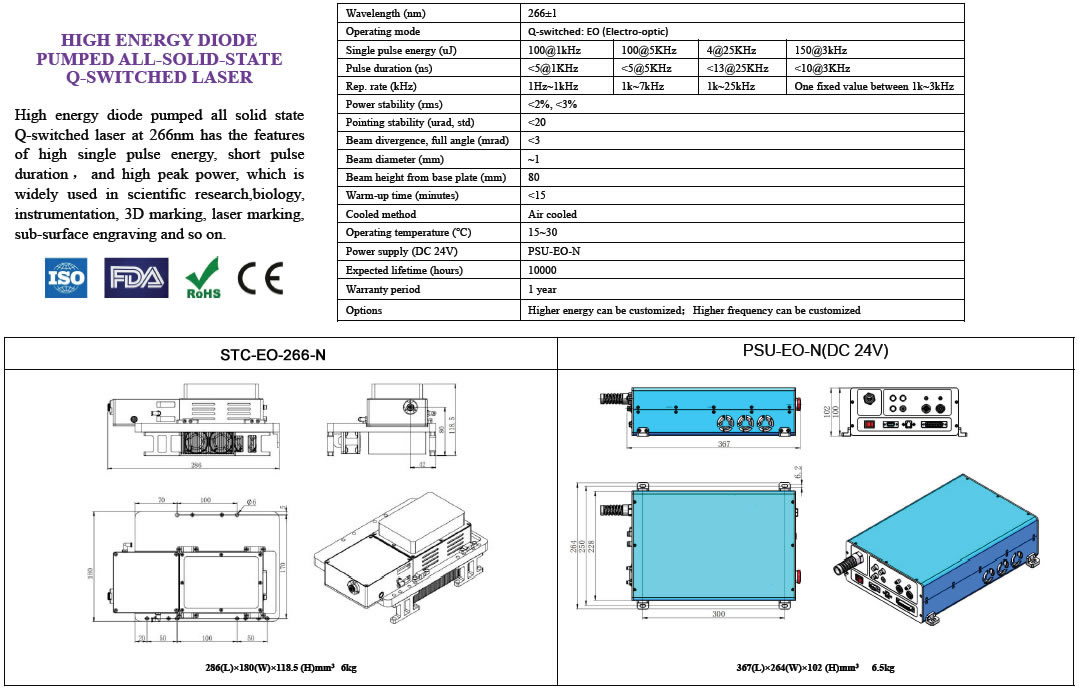

| (3) Actively Q-switched UV Laser at 266nm |
|

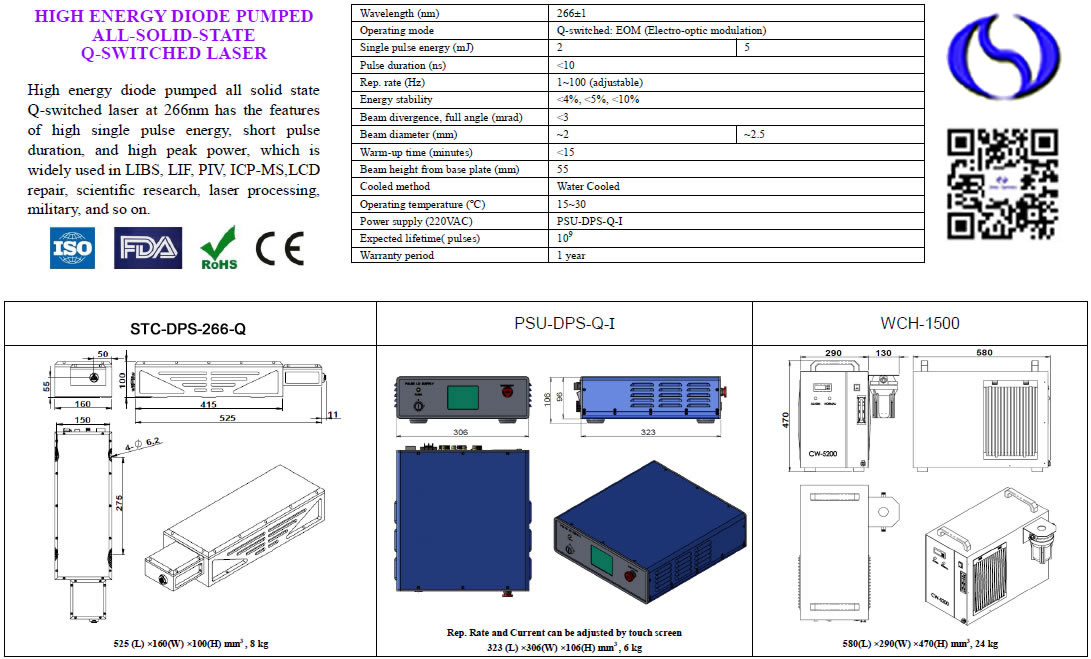

| (4) Picosecond Pulsed UV Laser at 266nm |
|
| (5) Fiber Laser at 266nm |
|
| (1) High Stability UV Laser at 355nm |
|
| (2) Passively Q-switched UV Laser at 355nm |
|
| (3) Actively Q-switched UV Laser at 355nm |
|
| (4) Picosecond Pulsed UV Laser at 355nm |
|
| (5) Lamp Pumped Q-switched Laser at 355nm |
|
| (6) Fiber Laser at 355nm |
|
| (7) Fiber Coupled Laser System at 355nm | STC-MPL-355 (FC)/ 1~1500mW. All STC series lasers can be fiber coupled with different core diameter MM fiber or SM fiber. Please refer to the detailed specs of each laser (such as power, stability, noise, size, etc) to decide which one is suitable for your application. The fiber connectors are FC/SMA905. We will do the coupling job according to your specific requirements. |
We offer the diverse of 532nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20W available. For Q-switched operating mode lasers, the high power laser series is up to 200W available, and high energy laser series is up to 450mJ available.
| (1) High Stability Laser | Perfect beam quality; Long-term stability <1% |
| (2) Low Noise Laser | RMS noise <1.0% (<0.5% optional); Linewidth <0.003nm optional |
| (3) Single Frequency Lasers (Single Longitudinal Mode) | Ultra low noise <0.5%; Line width <0.00001nm |
| (4) Q-switched Laser | ns laser (pulse width 1-100ns) |
| (5) Mode-locked ps Laser | Mode-locked laser (pulse width down to 10ps) |
| (6) Fiber Laser | Modulation up to 80MHz; Pulse width down to 10ps |
| (7) Line Generated Laser | Line uniformity <20%; Line straightness ±0.1% |
| (8) OEM Laser Module | Ultra compact; Industrial integration |
High stability 532 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Confocal microscopy
Laser medical treatment
Scientific experiment
Laser lighting show
Optical instrument
| Model | Operatingmode | Output power | Power stability | M² factor |
| STC-MGL-DS-532 | CW | 1~150mW | <1% | <1.2 (<1.1 optional) |
| STC-MXL-SM-532 | CW | 1~200mW | <1% | / |
| STC-MGL-III-532 | CW | 1~300mW | <1% | <1.2 (<1.1 optional) |
| STC-MGL-S-532 | CW | 1~300mW | <1% | <1.2 (<1.1 optional) |
| STC-STC-MGL-FN-532 | CW | 400~1500mW | <1% | <1.2 (<1.1 optional) |
| STC-STC-MGL-F-532 | CW | 1500~2500mW | <1% | <1.1 |
| STC-MGL-N-532 | CW | 3~5W | <1% | <1.3 |
| STC-MGL-R-532 | CW | 1~5W | <1% | <1.3 |
| STC-OEM-N-532-Water | CW | 1~5W | <1% | <1.3 |
| STC-MGL-V-532-HQ | CW | 5~15W | <1, 2, 3% | <1.2 (10W) <3 (15W) |
| STC-MGL-V-532 | CW | 5~15W | <1, 2, 3% | <1.2 (10W) <3 (15W) |
| STC-MGL-W-532 | CW | 5~20W | <1% | <1.5 |
| STC-MGL-D-532 | CW | 20~30W | <1% | / |
| STC-HPL-532-CW | CW | 1~80W | <3% | / |
| STC-HPL-532-Q | QCW | 20~40W | <3% | / |
| STC-HPL-532-QM | QCW | 40~100W | <3% | / |
| STC-HPL-532-QL | QCW | 100-200W | <3% | / |
| STC-MGL-III-532-AOM | High modulation up to 1 MHz | 1~150mW | <1% | 1.5 |
| STC-MGL-FN-532-AOM | High modulation up to 1 MHz | 150~400mW | <1% | <1.5 |
High performance CW, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.003 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Fluorescence microscopy
DNA sequency, flow cytometry
Particle measurements
Spectrum analysis
Chip inspection
| Model | Output power (mW) | Noise of amplitude (rms, 20Hz-20MHz) | M² factor | Spectral line width (nm) |

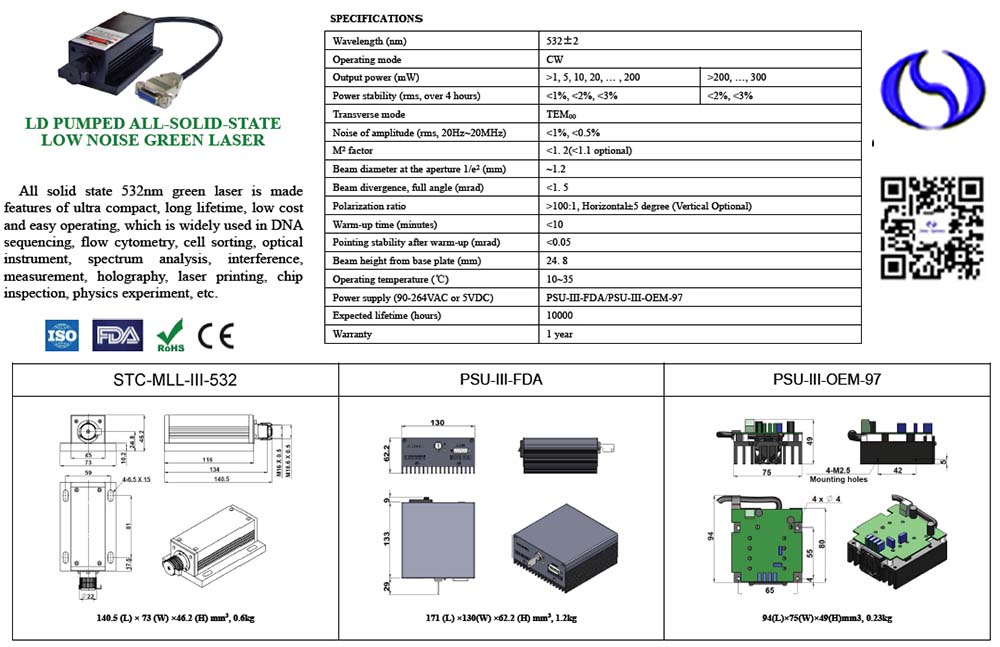

| STC-MLL-III-532 | 1~300 | <0.5% | <1.2 (<1.1 optional) | <0.1 |
| STC-MLL-S-532 | 1~300 | <0.5% | <1.2 (<1.1 optional) | <0.1 |
| STC-MLL-U-532 | 1~400 | <0.5% | <1.2 | <0.003 |
| STC-MLL-FN-532 | 1~1000 | <0.5% | <1.2 (<1.1 optional) | <0.2 (<0.003 optional) |
| STC-MLL-F-532 | 1500~2500 | <1% | <1.1 | <0.1 (<0.003@1.5W) |
| STC-MGL-R-532 | 1~5 W | <1% | <1.3 | <0.003 |
| STC-MLL-N-532 | 3~5 W | <1% | <1.3 | <0.1 (<0.01@3W) |
| STC-MLL-W-532 | 5~20 W | <1% | <3.0 | <0.1 (<0.01@5W) |
| STC-OEM-V-532-LN | 5~30 W | <1% | <1.2 | <0.1 |
High performance CW, single longitudinal mode, ultra low noise 532 nm lasers, narrow spectrum linewidth <0.00001nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Confocal microscopy
RAMAN spectroscopy
Particle measurements
DNA sequency, Flow cytometry
Digital imaging, Analytical chemistry
| Model | Operatingmode | Output power (mW) | Fiber coupling options | AOM option |
| STC-MSL-III-532 | CW | 1~100 | SM/ PM/ MM | yes |
| STC-MSL-S-532 | CW | 1~100 | SM/ PM/ MM | yes |
| STC-MSL-DS-532 | CW | 1~100 | SM/ PM/ MM | yes |
| STC-MSL-U-532 | CW | 1~200 | SM/ PM/ MM | yes |
| STC-MSL-FN-532 | CW | 200~400 | SM/ PM/ MM | yes |
| STC-MSL-FN-532-S | CW | 200~400 | SM/ PM/ MM | yes |
| STC-MSL-F-532 | CW | 400~700 | SM/ PM/ MM | yes |
| STC-MSL-RA-532 | CW | 700~2000 | MM | / |
| STC-MSL-R-532 | CW | 2000~10000 | MM | / |
| STC-MSL-III-532-AOM | High modulation up to 1MHz | 1~30 | SM/ PM/ MM | / |
| STC-MSL-FN-532-AOM | High modulation up to 1MHz | 30~200 | SM/ PM/ MM | / |
| STC-MSL-AO-532 | Q- switched | 1~100uJ@1Hz~1kHz, 20ns | MM | / |
We offer diverse of Q-switched 532 nm lasers in passively and actively modes. With pulse width in short nanosecond, and single pulse energy up to 450mJ. Are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, and medical device manufacturing.
Applications:
Scientific Research
Life Science Medical
Materials Processing
Microelectronics
OEM Integration
| Model | Single pulse energy | Repetition rate | Pulse width (ns) | Operating mode (Q-switched) |
| STC-MPL-III-532 | 1-5 μJ | 1-20 kHz | ~5 (1.3 optional) | Passively |
| STC-MPL-T-532 | 1-10 μJ | 0.1-15 kHz | ~0.5 | Passively |
| STC-MPL-SU-532 | 5-40 μJ | 1-15 kHz | ~1.3/ ~4 | Passively |
| STC-MPL-H-532 | 5-50 μJ | 1-30 kHz | ~5 (1.3 optional) | Passively |
| STC-MPL-U-532 | 20-60 μJ | 4-12 kHz | ~4 (1.3 optional) | Passively |
| STC-MPL-N-532 | 50-125 μJ | 1 k-15 kHz | ~5 | Passively |
| STC-AO-N-532 | 1-60 μJ | 1-50 kHz | ~10<10 kHz | Acousto-optic |
| STC-AO-S-532 | 1-100 μJ | 0.1-50 kHz | 5-10 @<10 kHz | Acousto-optic |
| STC-AO-W-532 | 1-300 μJ | 1-50kHz | ~10 @<10 kHz | Acousto-optic |
| STC-AO-V-532 | 1-300 μJ | 1-200 kHz | <15 @25 kHz | Acousto-optic |
| STC-AO-L-532 | 1-600 μJ | 0.001-200kHz | ~6 @5 kHz | Acousto-optic |
| STC-AO-X-532 | 1-670μJ | 30-100kHz | ~15 @30 kHz | Acousto-optic |
| STC-AO-U-532 | 500μJ-1 mJ | 1-3 KHz | <15 @3 kHz | Acousto-optic |
| STC-EO-XS-532 | 1-125 μJ | 1-100 kHz | ~3.5 @40 kHz | Electro-optic |
| STC-EO-S-532 | 1-70 μJ | 1-1000Hz | ~6 | Electro-optic |
| STC-EO-532-G | 0.2-0.5 mJ | 1 Hz-25 kHz | <8 @5 kHz | Electro-optic |
| STC-EO-532-H | 0.5-1mJ | 1-10 kHz(fixed) | <6 @5 kHz | Electro-optic |
| STC-EO-532-N | 0.5-2 mJ | 1 Hz-25 kHz | <6 @<7 kHz | Electro-optic |
| STC-DPS-532-Pico | 2-10 W | 0.1-10 MHz | <50 ps | Electro-optic |
| STC-DPS-532-H | 1-10 mJ | 1-1000 Hz | <4 | Electro-optic |
| STC-DPS-532-E | 1.5-4 mJ | 1-50 Hz | <4 | Electro-optic |
| STC-DPS-532-A | 1-5 mJ | 1-10 Hz | <10 | Electro-optic / Passively |
| STC-DPS-532-B | 5-15 mJ | 1-10 Hz | <10 | Electro-optic |
| STC-DPS-532-BS-D | 15-50 mJ | 1-20 Hz | <10 | Electro-optic |
| STC-DPS-532-Q | 2-20 mJ @1-1000 Hz | 1-1000 Hz | ~10 | Electro-optic |
| STC-DPS-532-J | 1-20 mJ | 1-20 Hz | ~10 | Electro-optic |
| STC-HPL-532-QT | 1-13W | 5-10kHz | ~150 @10 kHz | Acousto-optic |
| STC-HPL-532-Q | 2-4mJ @10kHz | 10-20kHz | ~100 @10 kHz | Acousto-optic |
| STC-HPL-532-QM | 1-6mJ @15kHz | 15kHz | ~100 @15 kHz | Acousto-optic |
| STC-HPL-532-QL | 7-13mJ@15kHz | 15kHz | ~100 @15 kHz | Acousto-optic |
| STC-HPL-532-QS | 1-4.5mJ@10kHz | 10kHz | ~5 | Acousto-optic |
| STC-LPS-532-A | 30-100 mJ | 1-10 Hz | ~10 | Electro-optic |
| STC-LPS-532-S | 30-150 mJ | 1-20 Hz | ~10 | Electro-optic |
| STC-LPS-532-L | 200-450 mJ | 1-10 Hz | ~10 | Electro-optic |
Superior beam quality, best reliability, mode-locked picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument
Mode-locked Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-PS-R-532 | 532 | 1-3000 | <20 | 48±1 | Mode-locked | TEM00 |
| STC-PS-HR-532 | 532 | 1-2 W | ~15@500kHz2 W | 100-1000kHz | Mode-locked | TEM00 |
Fiber Laser Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-FL-532-PS | 532 | 1-150 | <10 | 20-80 (Fixed) | Mode-locked | TEM00 |
| STC-FL-532-Pico | 532 | 1-1000 | 100-900 | 0.1-80 (variable) | Pulsed | TEM00 |
Diode Pumped Laser Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-DPS-532-Pico | 532 | 2-10 W | <50 ps | 0.1-10 MHz | Pulsed | TEM00 |
We offer fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used in communication, lidar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump source, measurement, physics experiment, etc. The pulsed mode up to 1MHz modulation and pulse duration variation are also available.
| Model | Wavelength (nm) | Output power(mW) | Pulse width | Modulation rate | Longitudinal mode | Polarization |
| STC-FL-532-PS | 532 | 1-150 | <10 ps | 20-60 MHz | Multi- | >15dB |
| STC-FL-532-Pico | 532 | 1-1000 | 100-900 ps | 0.1-20 MHz | Multi- | >15dB |
| STC-FL-532-Nano | 532 | 1-1000 | 0.5-50 ns | 0.1-1 MHz | Multi- | >15dB |
| STC-FL-532-AO | 532 | 10-100 nJ | 0.5-50 ns | 1-1000 Hz | Multi- | Random/ >15dB |
Green laser module at 532 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.
| High Power OEM Laser |  |
|
| Compact Laser Module |  |
|
 |
| |
| Fiber Coupled Laser Module |  | STC-PGL-FC-532/ 1~50mW |
We offer the diverse of laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 500W available. Q-switched high power laser series is 300W maximum. The high energy laser series is up to 20J available.
| (1) High Stability Laser | Perfect beam quality; Long-term stability <1% |
| (2) Low Noise Laser | RMS noise <1.0% (<0.5% optional); Line width <0.2nm |
| (3) Single Frequency Lasers (Single Longitudinal Mode) | Ultra low noise <0.5%; Linewidth <0.00001nm |
| (4) Q-switched Laser | Ns laser (pulse width 1-100ns) |
| (5) Mode-locked ps Laser | Mode-locked laser (pulse width down to 10ps) |
| (6) Fiber Laser | Modulation up to 80MHz; Pulse width down to 10ps |
| (7) OEM Laser Module | Ultra compact; Industrial integration |
| (8) Fiber Pigtailed Laser | MM, SM, PM fiber optional; SMA, FC connector optional |
High stability 1064 nm laser, housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Confocal microscopy
Laser printing
Chip inspection
Particle measurements
Spectrum analysis
DNA sequencing
| Model | Operatingmode | Output power | Min. power stability | M²factor |
| STC-MXL-SM-1064 | CW | 1~500 mW | <2% | / |
| STC-MIL-III-1064 | CW | 1~1500 mW | <1% | <1.5 (<1.2 optional) |
| STC-MIL-S-1064 | CW | 1~1500 mW | <1% | <1.2 |
| STC-MIL-H-1064 | CW | 2~3 W | <1% | <2.0 |
| STC-MIL-N-1064 | CW | 4~5 W | <1% | <3.0 |
| STC-MIL-W-1064 | CW | 6~20 W | <1% | <2.0 |
| STC-MIL-V-1064 | CW | 6~20 W | <1% | <2.0 |
| STC-HPL-1064-Q | QCW | 50~100 W | <3% | / |
| STC-HPL-1064-QM | QCW | 100~300 W | <3% | / |
| STC-HPL-1064-CW | CW | 50~100 W | <3% | / |
| STC-HPL-1064-CW | CW | 100~500 W | <3% | / |
High performance CW, ultra low noise 1064 nm lasers, noise less than 1% and power up to 20W. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Fluorescence microscopy
DNA sequency, flow cytometry
Optical instrument
Chip inspection
Physics experiment
| Model | Output power (mW) | Noise of amplitude (rms,20Hz-20MHz) | M² factor | Spectral line width (nm) |
| STC-MLL-III-1064 | 1~1500 | <1% | <1.5 (<1.2 optional) | <0.2 |
| STC-MLL-S-1064 | 1~1500 | <1% | <1.2 | <0.2 |
| STC-MLL-H-1064 | 2000~3000 | <1% | <2.0 | <0.2 |
| STC-MLL-N-1064 | 4000~5000 | <1% | <2.0 | <0.2 |
| STC-MLL-V-1064 | 6000~20000 | <1% | <2.0 | <0.2 |
| STC-MLL-W-1064 | 6000~20000 | <1% | <3.0 ( typically) | <0.2 |
High performance CW, single longitudinal mode, ultra low noise 1064 nm Lasers, narrow spectrum linewidth <0.00001 nm. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Confocal microscopy
RAMAN spectroscopy
Holography
Particle measurements
DNA sequency, flow cytometry
Digital imaging, Analytical chemistry
| Model | Operatingmode | Output power (mW) | Fiber coupling options | AOM options |
| STC-MSL-S-1064 | CW | 1~200 | SM/ PM/ MM | yes |
| STC-MSL-S-1064-S | CW | 1~200 | SM/ PM/ MM | yes |
| STC-MSL-III-1064 | CW | 1~1000 | SM/ PM/ MM | yes |
| STC-MSL-III-1064-S | CW | 1~1000 | SM/ PM/ MM | yes |
| STC-MSL-R-1064 | CW | 1000 ~10000 | MM | / |
| STC-MSL-AO-1064 | Q- switched | 1~200uJ@1Hz~1kHz, 25ns | MM | / |
We offer diverse of Q switched 1064 nm lasers in passively and actively modes. With pulse width from 1.3ns to 150ns, and single pulse energy from 1uJ to 20J. These lasers are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, solar and medical device manufacturing.
Applications:
Life Science Medical
Materials Processing
Microelectronics
OEM Integration
| Model | Single pulse energy/ Power | Repetition rate | Pulse width (ns) | Operating mode (Q-switched) |
| STC-MPL-III-1064 | 10-20 μJ | 1-20 kHz | ~3-25 (1.3 optional) | Passively |
| STC-OEM-P-1064 | 1-20 μJ | 1-20 kHz | ~1-5 | Passively |
| STC-MPL-T-1064 | 1-35 μJ | 0.1-20 kHz | ~0.5 | Passively |
| STC-MPL-H-1064 | 20-100 μJ | 1-30kHz | ~10 (1.5 optional) | Passively |
| STC-MPL-SU-1064 | 20-200 μJ | 1-15kHz | ~1.5/ ~1.8/ ~5 | Passively |
| STC-MPL-FL-1064-A | 15-130μJ | 1-70kHz | ~5 (1.3 optional) | Passively |
| STC-MPL-N-1064 | 150-200 μJ | 1-15 kHz | ~3-5 (<2 optional) | Passively |
| STC-MPL-FL-1064-B | 150-300 μJ | 1 kHz | ~2 (1.0 optional) | Passively |
| STC-AO-S-1064 | 1-350μJ | 0.1-100kHz | 7-11 @<10 kHz | Acousto-optic |
| STC-AO-I-1064 | 500μJ | 1-100 kHz | ~10 @20 kHz | Acousto-optic |
| STC-AO-N-1064 | 1-600 μJ | 1-100 kHz | ~7 @10 kHz | Acousto-optic |
| STC-AO-W-1064 | 1-600μJ | 1-100kHz | ~10 @<10 kHz | Acousto-optic |
| STC-AO-V-1064 | 1-600 μJ | 1-200 kHz | ~25 @30 kHz | Acousto-optic |
| STC-AO-L-1064 | 1-1500 μJ | 0.001-200 kHz | ~10 @10 kHz | Acousto-optic |
| STC-AO-M-1064 | 1-1000 μJ | 1-20 kHz | ~13 @20 kHz | Acousto-optic |
| STC-AO-H-1064 | 1-1000 μJ | 10-100kHz | ~20 @30 kHz | Acousto-optic |
| STC-AO-X-1064 | 1-670 μJ | 10-100 kHz | ~20 @30 kHz | Acousto-optic |
| STC-EO-XS-1064 | 1~180μJ | 1-100 kHz | ~4 @50 kHz | Electro-optic |
| STC-EO-HS-1064 | 1-320 μJ | 1-100 kHz | ~4 @50 kHz | Electro-optic |
| STC-EO-S-1064 | 1-300 μJ | 1-1000 Hz | ~8 | Electro-optic |
| STC-EO-1064-G | 0.5-1 mJ | 1Hz-25 kHz | ~8 @5 kHz | Electro-optic |
| STC-EO-1064-H | 1-2 mJ | 1-10 kHz | ~7 @5 kHz | Electro-optic |
| STC-EO-1064-N | 1-3.5 mJ | 1Hz-25 kHz | ~7 @<7 kHz | Electro-optic |
| STC-DPS-1064-Pico | 5-30 W | 0.1-10MHz | <50ps, 50-1000 (adjustable) | Elecro-optic |
| STC-DPS-1064-H | 1~30 mJ | 1~1000 Hz | <5 | Elecro-optic |
| STC-DPS-1064-D | 0.5-2 mJ | 1-100 Hz | <10 | Electro-optic |
| STC-DPS-1064-E | 3-8 mJ | 1-50 Hz | <4 | Electro-optic |
| STC-DPS-1064-E-30mJ | 30mJ | 3Hz | 4±1 | Electro-optic |
| STC-DPS-1064-P-Min | 6 mJ | 10/ 20 EXT(adjustable) | 3±1 | Passively |
| STC-DPS-1064-A | 1-10 mJ | 1-10 Hz | ~10 | Electro-optic / Passively |
| STC-DPS-1064-B | 10-30 mJ | 1-10 Hz | <10 | Electro-optic |
| STC-DPS-1064-BS-D | 30-100 mJ | 1-20 Hz | <10 | Electro-optic |
| STC-DPS-1064-Q | 5-40mJ@1-1000Hz | 1-1000 Hz | ~10 | Electro-optic |
| STC-DPS-1064-J | 1-40mJ | 1-20 Hz | ~10 | Electro-optic |
| STC-HPL-1064-Q | 5-10 mJ@10kHz | 10-20kHz | ~100 @10 kHz | Acousto-optic |
| STC-HPL-1064-QM | 10-30mJ@10kHz | 10-20kHz | ~150 @10 kHz | Acousto-optic |
| STC-HPL-1064-QS | 1-15 mJ @10kHz | 10kHz | ~7 | Acousto-optic |
| STC-HPL-1064-QT | 1-20 W | 5-10 kHz | ~70 @5 kHz | Acousto-optic |
| STC-LPS-1064-A | 50-200 mJ | 1-10 Hz | ~10 | Electro-optic |
| STC-LPS-1064-S | 50-300 mJ | 1-10 Hz | ~10 | Electro-optic |
| STC-LPS-1064-L | 350-1000 mJ | 1-10 Hz | ~10 | Electro-optic |
| STC-LPS-1064-M | 1-10 J | 1-20 Hz | ~0.1-20 ms | Pulsed |
Superior beam quality, best reliability, mode-locked picosecond pulsed laser, pulsed duration could be less than 20ps. Housed in compact packages, are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development.
Applications:
Raman spectroscopy; Marking, Carving; Material processing; Astronomy; Scientific research; Optical instrument
Mode-locked Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-PS-RL-1064 | 1064 | 1-1000 | ~15 @10 kHz1 W | 1-10kHz | Mode-locked | TEM00 |
| STC-PS-HR-1064 | 1064 | 1-10 W | ~15@500kHz10W | 100-1000kHz | Mode-locked | TEM00 |
| STC-PS-R-1064 | 1064 | 1-10 W | <20 | 48±1 | Mode-locked | TEM00 |
| STC-PS-Seed-1064 | 1064 | 1-300 | <20 | 80±1 | Mode-locked | TEM00 |
| STC-Macro/ Micro-1064-P | 1064 | 10 W | Macro 160 μs | Micro~100MHz | Mode-locked | TEM00 |
Fiber Laser Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-FL-1064-PS | 1064 | 1-2000 | <10 | 20-80 (Fixed) | Mode-locked | TEM00 |
| STC-FL-1064-Pico | 1064 | 10-5000 | 100-900 | 0.1-20 (variable) | Pulsed | TEM00 |
Diode Pumped Laser Type:
| Wavelength (nm) | Output power (mW) | Pulse duration (ps) | Rep. rate (MHz) | Operating mode | Transverse mode | |
| STC-DPS-1064-Pico | 1064 | 5-30 W | <50 ps | 0.1-10 MHz | Pulsed | TEM00 |
Infrared laser modules at 1064 nm are made features of ultra compact, low cost and easy operating, which are the perfect choice for design in and integration into OEM instrumentation and systems, and also for end user applications in scientific research, medical treatment and industrial development.
| High Power OEM Laser | |
|
| Compact Laser Module |
|
|
|
|
Wavelength (nm) Output power (mW)
| Wavelength | 261 | 303 | 320 | 335 | 349 | 355 | 360 | 425 | 430 | 457 | 473 | 480 | 484 |
| SLM(single frequency) | 50 | 2W | 100 | ||||||||||
| Low noise | 50 | 10W | 500 | ||||||||||
| Basic version | 5 | 5 | 20 | 20 | 30 | 10 | 200 | 10 | 100 | 10W | 5W | 30 | 20 |
| Wavelength (nm) | 491 | 501 | 515 | 522 | 523.5 | 526.5 | 532 | 540 | 543 | 550 | 552 | 555 |
| SLM(single frequency) | 20 | 100 | 100 | 10W | 100 | |||||||
| Low noise | 100 | 100 | 400 | 400 | 30W | 100 | ||||||
| Basic version | 400 | 200 | 500 | 100 | 800 | 1W | 200W | 500 | 1500 | 200 | 200 | 100 |
| Wavelength (nm) | 556 | 561 | 577 | 588 | 589 | 593.5 | 604 | 607 | 612 | 639 | 656.5 | 660 | 666 |
| SLM(single frequency) | 100 | 80 | 300 | 200 | 200 | 100 | 300 | 50 | 20 | ||||
| Low noise | 200 | 200 | 300 | 200 | 500 | 30 | 1W | 400 | |||||
| Basic version | 2.5W | 2W | 3.5W | 4.5W | 4.5W | 800 | 100 | 400 | 100 | 1W | 1.2W | 2W | 200 |
| Wavelength (nm) | 671 | 689 | 698 | 721 | 914 | 946 | 1030 | 1040 | 1047 | 1053 | 1064 | 1105 |
| SLM(single frequency) | 2.5W | 200 | 100 | 100 | 50 | 20 | 800 | 200 | 10W | |||
| Low noise | 5W | 1W | 100 | 800 | 800 | 600 | 100 | 1W | 1.5W | 20W | ||
| Basic version | 5W | 200 | 1W | 500 | 800 | 5W | 600 | 100 | 8W | 8W | 500W | 500 |
| Wavelength (nm) | 1122 | 1177 | 1313 | 1319 | 1342 | 1400-1800 | 1413 | 1444 | 1645 | 1910 | 1940 | 1990 |
| SLM(single frequency) | 80 | 500 | 50 | 5W | ||||||||
| Low noise | 300 | 1W | 1.5W | 6W | 400 | |||||||
| Basic version | 1W | 400 | 1W | 150W | 6W | 2W | 300 | 400 | 1W | 13W | 11W | 11W |
| Wavelength (nm) | 2096 | 2124 | 2600-4450 | 2796 | 2600 | 2800 | 3000 | 3200 | 3400 | 3600 | 4000 | 4200 | 4400 |
| Basic version | 20W | 2.5W | 1W | 300 | 1W | 1W | 1W | 1W | 1W | 1W | 800 | 800 | 800 |
Notes: power can be any value between 0- maximum powers.
SLM: single longitudinal mode laser, spectral line width<0.00001 nm.
Low noise: Noise of amplitude (rms, 20Hz~20MHz) <1%. Multi-mode: multiple longitudinal mode.
| Wavelength(nm) | 261, 303, 320, 335, 349, 355, 360 | ||
| Laser version | SLM | Low noise | Basic version |
| 261,303nm output power(mW) | / | / | 5 |
| 320nm output power(mW) | / | / | 20 |
| 335nm output power(mW) | / | / | 10 |
| 349nm output power(mW) | / | / | 30 |
| 355nm output power(mW) | / | / | 10 |
| 360nm output power(mW) | 50 | 50 | 200 |
| Power stability, rms (8 h) | <3%, <5% | <1%, <2%, <3% | <1%, <2%, <3%, 10% |
| Output noise, rms (8 h) | <0.5%, <1%, | <0.5%, <1% | >10% |
| Transverse mode (Optional) | TEM00, M2<1.5 | TEM00, M2<2 | TEM00, M2<2 |
| Linewidth | <10-5nm | <0.2nm | <0.2nm |
| Coherent length | >50m | ~10cm | ~10cm |
| Polarization | >50:1, >100:1, optional Horizontal±5 degree (Vertical Optional) | >50:1, >100:1, optional Horizontal ±5 degree (Vertical Optional) | >50:1 Horizontal±5 degree (Vertical Optional) |
| Pointing stability | <0.05mrad | <0.05mrad | <0.1mrd |
| Beam diameter(1/e2) | <1.5mm | ~1.5mm | ~1.0mm |
| Beam divergence | <1.2mrad | <1.0mrad | <1.0mrad |
| Wavelength(nm) | 457, 473 | ||
| Laser version | SLM | Low noise | Basic version |
| 457nm output power (mW) | 5,10,50,100,…,2000 | 5, 10, 50, 100, … ,10000 | 5,10,50,100,…,10000 |
| 473nm output power (mW) | 5, 10, 20, … , 100 | 5, 10, 50, … , 500 | 5, 10, 50, … , 5000 |
| Transverse mode(Optional) | TEM00 or Near TEM00, M2 <1.2 | ||
| Power stability, rms (8 h) | Up to 1% | ||
| Output noise, rms (8 h) | <0.5% (1Hz-20 MHz) | <1% (20Hz-20MHz) | <3% (1Hz-20MHz) |
| Longitudinal mode | Single | Multi | Multi |
| Linewidth | <10-5nm | <0.2nm (<0.003nm for less than 400mW) | <0.3nm |
| Coherent length | >50 m | ~10cm | ~10cm |
| Polarization | Linear; Ratio >100:1; Horizontal optional for SLM laser | ||
| Pointing stability | <0.05mrad for 473nm less than 500mW, and 457nm less than 1000mW | ||
| Beam diameter(1/e2, mm) | 0.7, 2.0, 3.0, 4.0 optional | ||
| Beam divergence (mrad) | 1.2, 1.5, 2.0 depends on beam diameter | ||
| Wavelength(nm) | 425 | 430 | 480 | 484 | 491 | |
| Output power (mW) | 10 | 100 | 30 | 20 | 2 | 400 |
| Transverse mode | Near TEM00 | |||||
| Beam diameter(1/e2)mm | ~4 | ~5 | ~3 | ~4 | ~3 | ~4 |
| Beam divergence (mrad) | < 3 | < 2 | < 1.5 | < 3 | < 1.5 | < 3 |
| Power stability, rms (8 h) | < 10%, <5%, (<3% available for individual wavelengths) | |||||
| Polarization | Linear; Ratio >100:1 | |||||
| Wavelength(nm) | 532 | ||||
| Laser version | SLM | Low noise | Basic version | ||
| Output power(mW) | 30,200,400,700,2W,10W | 300,400,1W,2.5W,5W, 20W, 30W | 300, 1.5W, 2.5W, 5W, 1W, 20W, 30W, 80W | ||
| Transverse mode (Optional) | TEM00 or Near TEM00, M2 <1.1 | ||||
| Power stability, rms (8 h) | <1% | ||||
| Output noise, rms (8 h) | <0.5%(20Hz-20MHz) for low noise version | ||||
| Longitudinal mode | Single | Multi | Multi | ||
| Linewidth | <10-5nm | 0.2nm | |||
| Coherent length | >50m | ~10cm | |||
| Polarization | Linear; Ratio>50:1, >100:1Horizontal±5 degree (Vertical Optional) | ||||
| Pointing stability | <0.05mrad for less than 400mW | ||||
| Beam diameter(1/e2)mm | 0.7, 1.2, 1.5, 2 optional | ||||
| Beam divergence(mrad) | 1.2, 1.5, 2 depends on beam diameter | ||||
| Wavelength (nm) | 501 | 515 | 522 | 523.5 | 526.5 | 540 | 543 | 550 | 552 | 555 |
| SLM version (mW) | 100 | 100 | 100 | |||||||
| Low noise Version (mW) | 100 | 100 | 400 | 400 | 100 | |||||
| Basic version (mW) | 200 | 500 | 100 | 800 | 1W | 500 | 1.5W | 200 | 200 | 100 |
| Transverse mode (Optional) | TEM00 or Near TEM00, M2 <1.2 | |||||||||
| Power stability, rms (8 h) | Up to 1% | |||||||||
| Output noise, rms (8 h) | <0.5%(1Hz-20MHz) for low noise version | |||||||||
| Linewidth | <10-5nm for SLM version, <0.2nm for basic version | |||||||||
| Coherent length | >50m for SLM version, >10cm for low noise version | |||||||||
| Polarization | Linear; Ratio>100:1Horizontal±5 degree (Vertical Optional) | |||||||||
| Pointing stability | <0.05mrad for less than 400mW | |||||||||
| Beam diameter(1/e2) (mm) | 0.7, 1.2, 1.5, 3 optional | |||||||||
| Beam divergence (mrad) | 1, 1.5, 2 depends on beam diameter | |||||||||
| Wavelength | 556nm | 561nm | 577nm | 588nm | 589nm | 593.5nm |
| SLM version（mW） | 100 | 80 | 300 | 200 | 200 | |
| Low Noise version (mW) | 200 | 200 | 300 | 200 | 500 | 30 |
| Basic version(mW) | 2.5W | 2W | 3.5W | 4.5W | 4.5W | 800 |
| Transverse mode (Optional) | TEM00 or Near TEM00, M2 <1.2 | |||||
| Power stability, rms (8 h) | Up to 1% | |||||
| Output noise, rms (8 h) | <0.5%(1Hz-20MHz) for low noise version | |||||
| Linewidth | <10-5nm for SLM version, <0.2nm for basic version | |||||
| Coherent length | >50m for SLM version, >10cm for low noise version | |||||
| Polarization | Linear; >100:1, Vertical±5 degree (Horizontal Optional) | |||||
| Pointing stability | <0.05mrad for less than 400mW | |||||
| Beam diameter(1/e2)mm | 0.7; 1.0; 1.5; 2.5 optional | |||||
| Beam divergence(mrad) | 1.2; 1.5; 2 depends on beam diameter | |||||
| Wavelength(nm) | 604, 607, 612, 639, 656.5, 660, 666, 671, 689, 698, 721 | ||
| Laser version | SLM | Low noise | Basic version |
| 604nm output power(mW) | 100 | ||
| 607nm output power(mW) | 100 | / | 400 |
| 612nm output power(mW) | 100 | ||
| 639nm output power(mW) | 300 | 1W | 1W |
| 656.5nm output power(mW) | 50 | / | 1.2W |
| 660nm output power(mW) | 20 | 400 | 2W |
| 666nm output power(mW) | / | / | 200 |
| 671nm output power(mW) | 2.5W | 5W | 5W |
| 689nm output power(mW) | / | / | 200 |
| 698nm output power(mW) | 200 | 1W | 1W |
| 721nm output power(mW) | 100 | 100 | 500 |
| Power stability, rms(8h) | <3%, <5%,<10%(721nm) | <3%, <5%, <10%(721nm) | <3%,<5%, <10% |
| Output noise, rms(8h) | <1%, <0.5% | <1% | < 1% |
| Longitudinal mode | Single | Multi | Multi |
| Linewidth | <0.00001nm, <0.0003nm(639nm) | <0.004nm | <0.2nm |
| Coherent length | >50m for SLM version, >10cm for low noise version | ||
| Polarization | >50:1,>100:1,optional Horizontal±5degree(Vertical Optional ) | >50:1,>100:1,optionalHorizontal±5degree(Vertical Optional ) | > 50:1, > 100:1 optional Horizontal±5 degree (Vertical optional ) |
| Pointing stability | <0.05mrad | <0.05mrad | <0.1mrad |
| Beam diameter(1/e2)(mm) | 1.0; 1.5; 2.0 optional | ||
| Beam divergence(mrad) | 1.0, 1.2; 1.5; 2 depends on beam diameter | ||
| Wavelength(nm) | 914 | 946 | 1030 | 1040 | 1047 | 1053 | 1064 | 1085 | 1105 | 1112 | 1122 | 1177 |
| SLM Version(mW) | 100 | 50 | 20 | 800 | 200 | 10W | 20 | 80 | ||||
| Low noise Version(mW) | 800 | 800 | 600 | 100 | 1W | 1500 | 20W | 1W | 100 | 300 | ||
| Basic Version (mW) | 800 | 5W | 600 | 100 | 8W | 8W | 500W | 1W | 500 | 500 | 1W | 400 |
| Transverse mode (Optional) | TEM00 or Near TEM00, M2 <1.2 | |||||||||||
| Power stability, rms (8 h) | Up to 1% | |||||||||||
| Output noise, rms (8 h) | <0.5%(20Hz-20MHz) for low noise version | |||||||||||
| Linewidth | <10-5nm for SLM version, <0.2nm for basic version | |||||||||||
| Coherence length | >50m for SLM version, ~10cm or >1m for low noise version | |||||||||||
| Polarization | Linear; 100:1 | |||||||||||
| Pointing stability | <0.05mrad for less than 100mW | |||||||||||
| Beam diameter(1/e2, mm) | 0.7, 1.2, 1.5, 2 optional | |||||||||||
| Beam divergence(mrad) | 1.2, 1.5, 2 depends on beam diameter | |||||||||||
| Wavelength(nm) | 1313 | 1319 | 1342 | 1413 | 1444 | 1645 | 1910 | 1940 | 1990 | 2096 | 2124 | 2796 |
| SLM Version(mW) | 500 | 50 | 5W | |||||||||
| Low noise Version(mW) | 1W | 1.5W | 6W | 400 | ||||||||
| Basic Version (mW) | 1W | 150W | 6W | 300 | 400 | 1W | 13W | 11W | 11W | 20W | 2.5W | 300 |
| Transverse mode (Optional) | TEM00 or Near TEM00, M2 <1.2 | |||||||||||
| Power stability, rms (8 h) | Up to 1% | |||||||||||
| Output noise, rms (8 h) | <0.5%(20Hz-20MHz) for low noise version | |||||||||||
| Linewidth | <10-5nm for SLM version, <0.2nm for basic version | |||||||||||
| Coherence length | >50m for SLM version, ~10cm or >1m for low noise version | |||||||||||
| Polarization | Linear; 100:1 | |||||||||||
| Pointing stability | <0.05mrad for less than 100mW | |||||||||||
| Beam diameter(1/e2, mm) | 0.7,1.2,1.5,2 optional | |||||||||||
| Beam divergence(mrad) | 1.2, 1.5, 2 depends on beam diameter | |||||||||||
| Wavelength (nm) | 1400-1800 | 2600-4400 | 1400-1800 | 2600-4450 |
| Laser version | Single wavelength output in this range | Wavelength tunable, range up to 350 nm | ||
| Output power (mW) | Up to 2W | Up to 1W | Up to 2W | Up to 1W |
| Transverse mode | Near TEM00 | |||
| Power stability, rms (8 h) | < 5% | |||
| Linewidth | < 2nm | |||
| Beam diameter (1/e2, mm) | <10 | |||
| Beam divergence (mrad) | <8 or <10 | |||
| Wavelength | 375 | 395 | 397 | 400 | 405 | 410 | 415 | 420 | 442 | 445 | 447 |
| Narrow Linewidth | 20 | 50 | 150 | 50 | 50 | 200 | 30 | 30 | |||
| Max power | 800 | 100 | 100 | 300 | 10W | 300 | 350 | 350 | 8W | 20W | 20W |
| Wavelength (nm) | 450 | 454 | 460 | 462 | 465 | 470 | 488 | 505 | 510 | 514.5 | 520 |
| Narrow Linewidth | 30 | 30 | 100 | 70 | 40 | 10 | |||||
| Max power | 150W | 16W | 16W | 16W | 16W | 16W | 200 | 80 | 30 | 50 | 10W |
| Wavelength (nm) | 622 | 627 | 633 | 635 | 637 | 640 | 642 | 650 | 655 | 660 | 665 |
| Narrow Linewidth | 80 | 30 | 80 | 30 | 30 | 30 | 30 | 120 | |||
| Max power | 50 | 100 | 500 | 8W | 4W | 4W | 4W | 4.5W | 4.5W | 4.5W | 2W |
| Wavelength (nm) | 685 | 689 | 690 | 698 | 705 | 730 | 750 | 760 | 785 | 793 | 800 | 808 |
| Narrow Linewidth | 10 | 450 | 450 | 450 | ||||||||
| Max power | 800 | 20 | 1300 | 25 | 1.5W | 5W | 5W | 5W | 2.5W | 4W | 2.5W | 10W |
| Wavelength (nm) | 825 | 830 | 845 | 852 | 860 | 880 | 885 | 905 | 915 | 940 | 975 | 980 |
| Narrow Linewidth | 100 | 450 | 30 | 30 | 450 | 450 | ||||||
| Max power | 2.5W | 2W | 30 | 1.5W | 4W | 1.8W | 1.5W | 400 | 8W | 4.5W | 10W | 10W |
| Wavelength (nm) | 1060 | 1120 | 1310 | 1450 | 1470 | 1532 | 1550 | 1850 | 1870 | 1900 | 2200 |
| Narrow Linewidth | 40 | 15 | |||||||||
| Max power | 2.5w | 5W | 800 | 1W | 3.5W | 3.5W | 3.5W | 1W | 800 | 600 | 400 |
| Wavelengths(nm) | 375 | 395 | 397 | 400 | 405 | 410 | 415 | 420 | 442 | 445 | 447 | 450 | 454 |
| Long Coherent Length (mw) | 50 | 50 | 50 | 50 | 30 | 30 | 30 | 30 | |||||
| Narrow Line width (mw) | 20 | 50 | 150 | 50 | 50 | 30 | 200 | 30 | 30 | 30 | |||
| Low noise（mw) | 400 | 100 | 100 | 300 | 1W | 350 | 350 | 350 | 3.5W | 3.5W | 3.5W | 3.5W | 800 |
| Single mode(mw) | 50 | 30 | 80 | 80 | 80 | 80 | 80 | ||||||
| Max. power (w) | 0.8 | 100 | 100 | 100 | 10W | 350 | 350 | 350 | 8W | 20W | 20W | 150W | 16W |
| Beam divergence, full angle | 0.5 to 2.3mrad depending on output power and wavelength | ||||||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||||||
| Noise of amplitude | 1%, 0.5% (rms, 20Hz~20MHz) | ||||||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||||||
| Coherent length (m) | >1m(for Long Coherent Length laser) | ||||||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||||||
| Wavelengths(nm) | 460 | 462 | 465 | 470 | 488 | 505 | 510 | 514.5 | 520 |
| Long Coherent Length (mw) | 70 | 40 | 10 | ||||||
| Narrow Line width (mw) | 100 | 70 | 40 | 10 | |||||
| Low noise (mw) | 2000 | 2000 | 2000 | 2000 | 150 | 80 | 30 | 50 | 800 |
| Single mode(mw) | 150 | 80 | 30 | 50 | 50 | ||||
| Max. power (w) | 16W | 16W | 16W | 16W | 0.2 | 10W | |||
| Beam divergence, full angle(mrad) | 0.5 to 2.3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude(rms, 20Hz~20MHz) | <0.5%, <1%(for Low Noise laser); <3% | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Coherent length (m) | >1m(for Long Coherent Length laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
| Wavelengths(nm) | 622 | 627 | 633 | 635 | 637 | 640 | 642 | 650 | 655 |
| Long Coherent Length (mw) | 30 | 80 | 30 | 30 | |||||
| Narrow Line width (mw) | 80 | 30 | 80 | 30 | 30 | 30 | 30 | ||
| Low noise (mw) | 500 | 500 | 200 | 200 | 200 | 1W | 1w | ||
| Single mode (mw) | 80 | 200 | 200 | 200 | 200 | 180 | 180 | ||
| Round beam (mw) | 150 | 200 | 200 | ||||||
| Max. power (w) | 50 | 100 | 500 | 8W | 4W | 4W | 4W | 4.5W | 4.5W |
| Beam divergence, full angle (mrad) | 1 to 3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude (rms, 20Hz~20MHz) | <0.5%, <1%(for Low Noise laser); <3%(basic version) | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Coherent length (m) | >1m(for Long Coherent Length laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
| Wavelengths(nm) | 660 | 665 | 680 | 685 | 690 | 705 | 730 | 750 | 760 |
| Narrow Line width (mw) | 120 | 450 | 10 | 450 | |||||
| Low noise (mw) | 1000 | 800 | 20 | 1300 | 25 | 1500 | 2W | 5W | |
| Single mode (mw) | 180 | 20 | 25 | 30 | |||||
| Round beam (mw) | 200 | 200 | 200 | ||||||
| Max. power (w) | 4.5W | 2W | 800 | 1300 | 1500 | 5W | 5W | ||
| Beam divergence, full angle (mrad) | 1 to 3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude (rms, 20Hz~20MHz) | <0.5%; <1%(for Low Noise laser); <3%(basic version) | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Coherent length (m) | >1m(for Long Coherent Length laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
| Wavelengths(nm) | 785 | 793 | 800 | 808 | 825 | 830 | 845 | 852 | 860 |
| Narrow Linewidth (mw) | 450 | 450 | 100 | 450 | |||||
| Low noise (mw) | 2.5w | 2.5w | 2.5w | 2w | 30 | 1.5w | 1w | ||
| Single mode (mw) | 100 | 100 | 120 | 30 | 150 | ||||
| Round Beam（mw） | 300 | 500 | 500 | 500 | 500 | ||||
| Max power (mw) | 2.5w | 4w | 2.5w | 10w | 2.5w | 2w | 1.5w | 4w | |
| Beam divergence, full angle | 1 to 3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00, Round or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude | <0.5%; <1%(for Low Noise laser); <3%(basic version) | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
| Wavelengths(nm) | 880 | 885 | 905 | 915 | 940 | 975 | 980 | 1060 | 1120 |
| Narrow Line width(mw) | 30 | 30 | 450 | 450 | 40 | ||||
| Low noise (mw) | 1.8w | 1.5w | 400 | 1.5w | 250 | 2w | 2w | 1.5w | 1w |
| Single mode (mw) | 70 | 270 | 250 | 200 | 200 | ||||
| Round Beam（mw） | 400 | 400 | 350 | 500 | 500 | ||||
| Max power (mw) | 1.8w | 1.5w | 400 | 8w | 4.5w | 10w | 10w | 2.5w | 5w |
| Beam divergence, full angle | 1 to 3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude | <0.5%; <1%(for Low Noise laser); <3%(basic version) | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
| Wavelengths(nm) | 1310 | 1450 | 1470 | 1532 | 1550 | 1850 | 1870 | 1900 | 2200 |
| Narrow Linewidth (mw) | 15 | ||||||||
| Low noise (mw) | 800 | 1w | 500 | 1w | |||||
| Single mode (mw) | 10 | 20 | 20 | 20 | 30 | ||||
| Round Beam（mw） | 200 | 200 | 200 | ||||||
| Max power (mw) | 800 | 1w | 3.5w | 3.5w | 3.5w | 1w | 800 | 600 | 400 |
| Beam divergence, full angle | 1 to 3mrad depending on output power and wavelength | ||||||||
| Transverse mode | TEM00, Near TEM00 or Multi-mode depending on output power and wavelength | ||||||||
| Power stability, rms( 4 h) | <1%, <2%, <3%, | ||||||||
| Noise of amplitude | <0.5%; <1%(for Low Noise laser); <3%(basic version) | ||||||||
| Spectral linewidth (nm) | <0.06nm,/0.03nm optional (for Narrow Line width laser) | ||||||||
| Polarization ratio | >50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength | ||||||||
Please go to Fiber-coupled Laser Diodes.
| Wavelength (nm) | 244 | 257 | 261 | 266 | 289 | 295 | 335 | 349 | 351 | 355 | 440 | 457 | 473 |
| Passively Q-switched | 4 | 4 | 30 | 10 | 4 | 80 | |||||||
| Acousto-optics Q-switched | 3.75 | 20 | 5 | 4 | 15 | 250 | 200 | 50 | 50 | ||||
| Electro-optics Q-switched | 5mJ | 10 | 200mJ |
| Wavelength (nm) | 488 | 523.5 | 526.5 | 532 | 556 | 589 | 656.5 | 660 | 671 | 786 | 914 | 946 |
| Passively Q-switched | 60 | 60 | 125 | 2 | 5 | 20 | ||||||
| Acousto-optics Q-switched | 70 | 433 | 20 | 13mJ | 5mJ | 12.5mJ | 10mJ | 350 | 100 | 150 | ||
| Electro-optics Q-switched | 450mJ | 50 |
| Wavelength (nm) | 1030 | 1047 | 1053 | 1064 | 1313 | 1319 | 1342 | 1535 | 1573 | 2096 | 2600 |
| Passively Q-switched | 150 | 150 | 50 | 300 | 20 | 15 | 50 | 20 | |||
| Acousto-optics Q-switched | 130 | 2mJ | 250 | 30mJ | 10mJ | 500 | 30 | 1500 | 16.7 | ||
| Electro-optics Q-switched | 1J | 200 | 100 | 8mJ | |||||||
| Pulsed | 10J |
| Wavelength (nm) | 2800 | 2940 | 3000 | 3200 | 3400 | 3600 | 3800 | 4000 | 4200 | 4400 | 4500 | 4600 | 4800 |
| Passively Q-switched | 20 | 200mJ | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Acousto-optics Q-switched | 16.7 | 16.7 | 13 | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 | 16.7 | 900 | 200 | 200 |
Passively Q-switched
| Wavelength(nm) | 257 | 261 | 266 | 349 | 351 | 355 |
| Max average power(mW) | 15 | 10 | 600 | 30 | 10 | 2000 |
| Single pulse energy(µJ) | 4 | 4 | 30 | 10 | 4 | 80 |
| Pulse width(ns) | 10 | 4 | 5 | 4 | 4 | 5 |
| Repetition Rate | 10kHz-15kHz | 0.1Hz-1kHz | 1kHz-4kHz | 0.1Hz-1kHz | 0.1Hz-1kHz | 1kHz-4kHz |
| Transverse mode | Near TEM00 | Near TEM00 | Near TEM00 | Near TEM00 | Near TEM00 | Near TEM00 |
| Power stability, rms (8h) | <10% | <5%, <10% | <5%, <10% | <5%, <10% | <5%, <10% | <5%, <10% |
| Polarization | >100:1 | >50:1 | >100:1 | >50:1 | >50:1 | >100:1 |
| Pointing stability | < 1mrad | < 1mrad | < 1mrad | < 0.05mrad | < 0.05mrad | < 0.05mrad |
| Beam diameter(mm) | 0.5*2 | 2 | 4 | 2 | 2 | 4 |
| Beam divergence(mrad) | < 2.0 | < 2.5 | < 2.0 | < 1.5 | <1.5 | <2 |
Acousto-optics Q-switched
| Wavelength(nm) | 244 | 266 | 289 | 295 | 351 | 355 |
| Max average power(mW) | 15@4kHz | 200@10kHz | 50 | 1-80@20kHz | 15@1kHz | 3W@20kHz |
| Single pulse energy(µJ) | 0.1-3.75 | 20@10kHz | 5 | 0.1-4 | 15@1kHz | 150@20kHz |
| Pulse width(ns) | <30@4kHz15mW | 10-15@<10kHz | 10+/-2 | ~30@20KHz80mW | 6-10@<10kHz | 15@20kHz |
| Repetition Rate | 4kHz | 1-50kHz | 10kHz | 20kHz | 0.1-15kHz | 10-100kHz |
| Transverse mode | Near TEM00 | |||||
| Power stability, rms (4h) | < 5%, < 10% | < 5%, < 10% | < 3%, < 5% | < 5%, < 10% | < 3%, < 5%, < 10% | < 3%, < 5%, < 10% |
| Polarization | >100:1 | |||||
| Beam diameter(mm) | ~2.0 | ~2.0 | 1.5*3 | ~2.0 | ~0.3 | ~1.5 |
| Beam divergence(mrad) | <3 | <3.5 | <1.0 | <3 | <5.0 | <1.0 |
Electro-optics Q-switched
| Wavelength(nm) | 266 | 335 | 355 |
| Single pulse energy(mJ) | 5 | 10 | 10 |
| Pulse width(ns) | <10 | ~4 | <10 |
| Repetition Rate | 1~100Hz (adjustable) | 10kHz | 1~100Hz (adjustable) |
| Energy stability | <4% | <3% | <4% |
| Beam diameter(mm) | ~2.5 | ~2.5 | ~3 |
| Beam divergence(mrad) | <3 | <3 | <3 |
| Wavelength(nm) | 440 | 457 | 473 | 488 |
| Operating Mode | Acousto-Optics Q-switched | |||
| Max average power at typical rep rate(mW) | 2W@10kHz | 500@20kHz | 500@10kHz | 300@4kHz |
| Single pulse energy(µJ) | 200@10kHz | 50@1kHz | 50@1kHz | 75@4kHz |
| Pulse width(ns) | 100@10kHz | 300@10kHz | 200@10kHz | 30@4kHz |
| Repetition Rate | 10kHz | 1-50kHz | 1-200kHz | 4kHz |
| Transverse beam mode | TEM00, M2< 1.5 | |||
| Power stability, rms (8h) | < 3%, < 5% | |||
| Polarization | Linear, 100:1 | |||
| Beam diameter(1/e2)mm | 6 | 1 | 1 | 5 |
| Beam divergence(mrad) | 3.5 | 2.5 | 2.5 | 5 |
| Cooling Method | Water cooled | Air cooled | Air cooled | Water cooled |
| Wavelength(nm) | 523.5 | 526.5 | 523.5 | 526.5 | 556 |
| Operating mode | Passively Q-switched | Acousto-optics Q-switched | |||
| Max average power(mW) | 150 | 1300@3kHz | 50 | 5 @10kHz50W | |
| Max. single pulse energy(µJ) | 60 | 433@3kHz | 20uJ@1kHz | 5 @10kHz50W | |
| Peak power | 2.5W-15W | 43kW@3kHz | 5W | 50kW @10kHz50W | |
| Pulse width | ~4ns | ~10ns | 5~10ns@<10kHz | 200ns @10khz | |
| Repetition Rate | 0.1-3 kHz | 3-10kHz | 0.1-50kHz | 10-20kHz | |
| Transverse mode | TEM00, M2< 1.5 | ||||
| Power stability, rms (8h) | < 3%, < 5% | ||||
| Beam diameter(1/e2) mm | ~1.2, 3.0 depends on single pulse energy | 2 | <1.2,< 0.3 depends on single pulse energy | ≥ 12, ≥ 15 depends on single pulse energy | |
| Beam divergence (mrad) | < 1.5, < 2.0 depends on beam diameter at the aperture | <2 | < 1.5, < 5 depends on beam diameter at the aperture | < 3.5 | |
| Wavelength(nm) | 532 | |||
| Operating mode | Passively Q-switched | Acousto-optics Q-switched | ||
| Max average power | 1500mW | 50mW | 8W@25kHz @300uJ | 200W |
| Max. single pulse energy | 125µJ | 5mJ | 600µJ | 13mJ |
| Peak power(kW) | 10-25 | / | 20 @25kHz @300uJ | 130 @15kHz @13mJ |
| Pulse width | 1.3, 5, 10ns optional | < 10ns | 5-15ns | 100ns (5ns optional) |
| Repetition Rate | 1-30kHz | 1-10Hz | 1Hz–200kHz | 10-20kHz |
| Transverse mode | Near TEM00, M2< 1.5 | / | M2< 1.5for less than 100µJ | / |
| Power stability, rms (8h) | < 3%, < 5% | < 5% | < 1%, < 3%, < 5% | < 3%, < 5% |
| Beam diameter(1/e2) mm | 0.8, 1.0, 1.2 depends on single pulse energy | ~3 | 0.3,1.2 for less than 100µJ; 1.0, 2.0, 2.5 optional | ≥ 6, ≥ 9, ≥ 12, ≥ 15 depends on single pulse energy |
| Beam divergence (mrad) | 1.5,2.0,3.0 depends on beam diameter at the aperture | <1.5, 2.0, 2.5 optional | <3.5 | |
| Wavelength(nm) | 532 | |
| Operating mode | Electro-optics Q-switched | |
| Pumped source | Diode pumped | Lamp pumped |
| Max. single pulse energy | 20mJ | 450mJ |
| Pulse width | 10, 12ns | 8, 10, 12ns depends on single pulse energy |
| Repetition Rate | 1-10/ 20/ 100Hz (1000Hz optional) | 1-10Hz |
| Energy stability, rms (8h) | < 3% | < 4% |
| Beam diameter(1/e2) mm | 1.5, 2, 3, 4 depends on single pulse energy | < 6 ,7, 8, 9 depends on single pulse energy |
| Beam divergence (mrad) | 1.0, 2.0, 3.0 depends on beam diameter at the aperture | 1.0,1.5,3.0 depends on beam diameter at the aperture |
| Wavelength(nm) | 589 | |
| Operating mode | Acousto-optics Q-switched | |
| Average power | 1-5W (Nonadjustable) | 1-50W (Nonadjustable) |
| Single pulse energy | 1mJ @5W | 12.5mJ@4kHz |
| Peak power | 8kW | 80kW@4kHz |
| Pulse width | 100-150@5W | 100-150 |
| Spectral linewidth | 3GHz | / |
| Repetition Rate | 5kHz | 4 or 14kHz optional |
| Power stability, rms (8h) | < 3%, < 5% | |
| Beam diameter(1/e2) mm | ~18 | |
| Beam divergence (mrad) | < 3.0 | |
| Cooling method | Water cooled | |
| Wavelength(nm) | 656.5 | 660 | 786 |
| Operate Mode | Passively Q-switched | ||
| Max average power | 4mW | 10mW | / |
| Single pulse energy | 2uJ | 5uJ | 20uJ |
| Pulse width | 15ns | 15ns | 7ns |
| Repetition Rate | 1Hz-2kHz | 1Hz-2kHz | 10Hz |
| Transverse mode | TEM00 | TEM00 | Near TEM00 |
| Power stability, rms (8h) | < 1%, < 3%, < 5% | < 1%, < 3%, < 5% | < 3%, < 5% |
| Beam diameter(1/e2)mm | 1.2 | 1.2 | 2.5 |
| Beam divergence(mrad) | 1.5 | 1.5 | 2.5 |
| Wavelength(nm) | 660 | 671 | |
| Operate Mode | Acousto-optics Q-switched | Acousto-optics Q-switched | Electro-optic Q-switched |
| Max average power | 100W @10kHz | 4W @20kHz | 500mW (500mW@10kHz) |
| Single pulse energy | 10mJ @10kHz 100W | 350μJ@10kHz | 50(50μJ @10kHz) |
| Pulse width | ~150ns @10kHz 100W | 25 @10kHz | ~4 @10kHz |
| Repetition Rate | 10-20kHz | 1-100kHz | 10kHz |
| Transverse mode | TEM00 | Near TEM00 | Near TEM00 |
| Power stability, rms (8h) | < 3%, < 5% | < 5% | < 3%, < 5% |
| Beam diameter(1/e2)mm | ≥ 15 | ~1.0 | ~1.5 |
| Beam divergence(mrad) | < 3.5 | < 2.5mrad | <3 |
Acousto-optics Q-switched
| Wavelength(nm) | 914 | 946 | 1030 | 1047 | 1053 | 1319 | 1342 | 1573 |
| Max average power(W) | 1.5@30kHz | 1.5@10kHz | 1.3@10kHz | 3@3kHz | 2 | 100 | 4@10kHz | 1@30kHz |
| Single pulse energy(µJ) | 100@1kHz | 150@10kHz | 130@10kHz | 1000@3kHz | 250@1kHz | 10mJ@10kHz | 500@1kHz | 30@30kHz |
| Pulse width(ns) | 80@1kHz | 90@10kGHz | 50@10kHz | 10@3kHz | 11@10kHz | 250@10kHz | 40@10kHz | 10@30kHz |
| Repetition Rate(kHz) | 1-50 | 1-50 | 1-10 | 1-10 | 0.1-80 | 10-20 | 1-50 | 1-50 |
| Power stability, rms (8h) | < 1% | < 1% | <3% | <3% | <3% | <3% | < 1% | <3% |
| Beam diameter(1/e2)mm | 2.5 | 2.5 | 4 | 2 | 0.4 | 15 | 2 | 4 |
| Beam divergence(mrad) | 2 | 2 | 2 | 2 | 5 | 3.5 | 2 | 2 |
Passively Q-Switched
| Wavelength(nm) | 1047 | 1053 | 1064 | 1313 | 1319 | 3800 |
| Max average power(mW) | 3000 | 450 | 3000 | 100 | 150 | 300mW |
| Single pulse energy | 2000uJ | 50uJ | 200uJ | 20uJ | 15uJ | 30uJ |
| Pulse width | ~10ns | ~10ns | <2ns/3-5ns | ~18ns | ~15ns | 5-10ns |
| External trigger repetition Rate | 1-10kHz | 1-5kHz | 1-10kHz | 1Hz-5kHz | 1-4kHz | 5kHz-15kHz |
| Transverse Mode | TEM00 | TEM00 | ||||
| Power stability, rms (8h) | < 3% | <3% | <1% | <1% | <3% | < 5% |
| Beam diameter(mm) | 2 | 3 | 2 | 3 | 2 | 3 |
| Beam divergence(mrad) | < 2 | < 2 | < 1.5 | 2 | < 1. 5 | 1.5 |
Acousto-optics Q-switched
| Wavelength (nm) | 2096 | 3800 | 2600 /2800 /3000/ 3200 /3400 /3600 | 3900-4500 | 4000 /4200 /4400 /4600/ 4800 |
| Max average power | 5W | 9W | 1-500mW | 1-9W | 1-2W |
| Peak power | 750@30kHz500mW | 45kW @10kHz 9W | 10kW @10kHz 2W | ||
| Pulse width | 20-40ns | ~20ns@10kHz9W | ~22ns@30kHz500mW | 20ns@10kHz9W | 20ns |
| Repetition Rate | < 10 kHz | 10kHz | 30kHz | 10kHz | 10kHz |
| Power stability, rms (8h) | < 3% | <5% | <5% | < 5% | < 5% |
| Beam diameter(1/e2) mm | ~3 | <6 | ~11 | < 6 | < 6 |
| Beam divergence (mrad) | < 3 | <12 | <5 | < 12 | < 12 |
Acousto-optics Q-switched and Electro-optics Q-switched
| Wavelength(nm) | 1064 | 1573 | ||||
| Operate Mode (Q-switched) | Acousto-optics | Electro-optics | Acousto-optics | Electro-optics | ||
| Max average power(W) | 20@20kHz | 150@10kHz | / | 1@30kHz | ||
| Max. single pulse energy | 1000uJ@20kHz | 15mJ@10kHz | 100mJ | 1000mJ | 30uJ | 8mJ |
| Peak power | 1-76kW | 2MW | / | 30kW | ||
| Pulse width(ns) | 13 | ~7 | ~10 | <8 | ~10 | <10 |
| Repetition Rate | 1-20kHz | 10kHz | 20Hz | 1-10Hz | 1-200kHz | 1-20Hz |
| Transverse mode | Near TEM00, M2<2 | / | / | / | ||
| Cooling Method | Water | Water | Air | Water | Air | Water |
| Power/Energy stability, rms(8h) | <1% | <3% | <3% | <5% | <5% | |
| Beam diameter(1/e2) mm | 0.4, 1, 1.5, 2 depends on different power level | 6, 12, 19 depends on different power level | 3, 4, 5 depends on different energy levels | 6, 7, 8, 9 depends on different energy levels | ~4 | 3,4 depends on different energy level |
| Beam divergence(mrad) | 2,3,5 depends on beam diameter at the aperture | <3 | 1, 2, 3 depends on different energy | <2 | <8 | |
Remarks: WL means wavelength, operation modes means EOQ (electro-optic Q-switched), AOQ (acousto-optic Q-switched), PQ (passively Q-switched), P (pulsed), CW (continuous wave); Noise means noise of amplitude; cooling means A (air-cooled) and W (water cooled).
| WL | model | operation mode | average power | power stability | pulse energy | pulse rep rate | pulse width | peak power | M2 | Polorization | div | beam dia | Fiber core | Noise | Cooling | Notes |
| nm | mW | % | mJ | Hz | kW | mrad | mm | um | % | |||||||
| 213 | STC-DPS-213-Pico | P | 10, 30 | 1,3 | 5MHz | 50ps | 3 | 2 | A | DPSS | ||||||
| 223 | STC-EO-XS-223 | EOQ | 30 | 3uJ | 10kHz | 4ns | 0.75 | <3 | 1*4 | A | DPSS | |||||
| 244 | STC-AO-DF-244 | AOQ | 1-15 | 5, 10 | 3.75uJ | 4kHz | 30ns | 3-125W | W | DPSS | ||||||
| 257 | STC-MPL-N-257 | PQ | 1-15mW | 10 | 0.1-4uJ | QCW | 10ns | 400W | A | DPSS | ||||||
| 261 | STC-UV-F-261 | CW | 1-5mW | 10 | <2.0 | >50:1 | 2.0 | A | DPSS | |||||||
| 261 | STC-MPL-F-261 | QW | 1-10mW | 5, 10 | 0.1-4uJ | 1kHz | 4ns | 25-1000W | <1.5 | >50:1 | 2.0 | A | DPSS | |||
| 273 | STC-UV-FN-273 | CW | 1-5mW | 10 | <2.0 | >50:1 | 1.0 | 1.5 | A | DPSS | ||||||
| 289 | STC-AO-K-289 | AOQ | 1-50mW | 3, 5 | 1-5uJ | 10kHz | 10ns | 500W | 1 | 5*3 | A | DPSS | ||||
| 295 | STC-AO-K-295 | AOQ | 1-50mW | 3, 5 | 1-5uJ | 10kHz | 10ns | 500W | 1 | 5*3 | A | DPSS | ||||
| 295 | STC-AO-DF-295 | AOQ | 1-80mW | 5, 10 | 0.1-4uJ | 30ns | 3-134W | W | DPSS | |||||||
| 303 | STC-UV-F-303 | CW | 1-5mW | 10 | <2.0 | >50:1 | <2 | 3 | A | DPSS | ||||||
| 320 | STC-UV-C-320 | CW | 1-20mW | 10 | <2.0 | >50:1 | <2.5 | 1.5 | A | DPSS | ||||||
| 320 | STC-UV-F-320 | CW | 1-20mW | 10 | <2.0 | >50:1 | <2.5 | 1.5 | A | DPSS | ||||||
| 320 | STC-AO-XF-320 | AOQ | 1-30mW | 3, 5 | 1-3uJ | 10-20kHz | <30ns | 2kW | <2 | 1.5 | W | DPSS | ||||
| 335 | STC-UV-F-325 | CW | 1-60mW | 10 | <2 | >50:1 | <2.5 | 1.5 | A | DPSS | ||||||
| 335 | STC-EO-XS-335 | EOQ | 1-500mW | 3, 5 | 1-50uJ | 10kHz | 4ns | 1-12.5kW | <3 | 1.5 | A | DPSS | ||||
| 349 | STC-UV-F-349 | CW | 1-100mW | 10 | <2 | >50:1 | <1 | 1.5 | A | DPSS | ||||||
| 349 | STC-MPL-F-349 | PQ | 1-30mW | 5, 10 | 0.1-10uJ | 2-3kHz | 4 | 25-2500W | >50:1 | <1.5 | 2 | A | DPSS | |||
| 349 | STC-AO-S-349 | AOQ | 1-15mW | 3, 5, 10 | 1-8uJ | 0.1-10kHz | 6-10ns | <1.5 | >100:1 | <1.5, <5 | 1.2, 0.3 | A | DPSS | |||
| 349 | STC-AO-V-349 | AOQ | 1-800mW | 3, 5 | 1-267uJ | 3-10kHz | 10ns | 1-26.7kW | <2 | 2 | A | DPSS | ||||
| 351 | STC-MPL-F-351 | PQ | 1-10mW | 5, 10 | 0.1-4uJ | <3kHz | 4ns | 25-1000W | >50:1 | <1.5 | 2 | A | DPSS | |||
| 351 | STC-AO-S-351 | AOQ | 1-30mW | 3, 5, 10 | 1-15uJ | 0.1-15kHz | 6-10ns | <1.5 | >100:1 | <5, <1.5 | 0.3, 1.2 | A | DPSS | |||
| 351 | STC-AO-V-351 | AOQ | 1-500mW | 3, 5 | 1-167uJ | 3-10kHz | 10ns | 1-16.7kW | <2 | 2 | A | DPSS | ||||
| 360 | STC-MSL-F-360 | CW | 1-50mW | 3, 5 | <2.0 | >50:1 | <1 | 1.5 | A | DPSS, single longitudinal | ||||||
| 360 | STC-MSL-FN-360 | CW | 1-50mW | 3, 5 | <1.5 | >100:1 | <1.2 | 1.5 | A | DPSS, single longitudinal | ||||||
| 360 | STC-MSL-FN-360-S | CW | 1-50mW | 3, 5 | <1.5 | >100:1 | <1.2 | 1.5 | A | DPSS, single longitudinal | ||||||
| 360 | STC-MLL-FN-360 | CW | 1-50mW | 10 | <2 | >100:1 | <1 | 1.5 | A | DPSS, low noise | ||||||
| 360 | STC-MLL-F-360 | CW | 1-50mW | 1,2,3,5 | <2 | >100:1 | <1 | 1.5 | A | DPSS, low noise | ||||||
| 360 | STC-UV-FN-360 | CW | 1-50mW | 10 | <2 | >50:1 | <1 | 1.5 | A | DPSS, high stability | ||||||
| 360 | STC-UV-F-360 | CW | 1-100mW | 1,2,3,5 | <2 | >50:1 | <1 | 1.2 | A | DPSS, high stability | ||||||
| 360 | STC-UV-FN-360-PL | CW | 100-200mW | 5, 10 | <2 | <1 | 1.5 | 100 | <1 | A | Spectrum stabilized | |||||
| 375 | STC-FC-D-375 | CW | 1-10mW | 1,2,3 | A | |||||||||||
| 375 | STC-MDL-E-375 | CW | 1-20mmW | 1,2,3 | <1.5 | >50:1 | <0.5 | 3 | A | Narrow linewidth | ||||||
| 375 | STC-MLL-III-375L | CW | 1-50mW | 0.5,1,2,3 | <1.5 | >100:1 | <0.5 | 3 | A | Low noise | ||||||
| 375 | STC-MLL-III-375L | CW | 50-400mW | 0.5,1,2,3 | <100kHz | >100:1 | 2.3x0.2 | 1.5x3.5 | A | Low noise | ||||||
| 375 | STC-MDL-XS-375 | CW | 1-50mW | 1,2,3 | <100kHz | <1.5 | >50:1 | <1 | 1.2 | <1 | A | LD | ||||
| 375 | STC-MDL-III-375L | CW | 1-50mW | 0.5,1,2,3 | <100kHz | <1.5 | >100:1 | <0.5 | 3 | A | LD | |||||
| 375 | STC-MDL-III-375 | CW | 50-4000mW | 0.5,1,2,3 | <100kHz | >100:1 | 2.3x0.2 | 1.5x3.5 | A | LD | ||||||
| 375 | STC-MDL-SD-375 | CW | 400-800mW | 1,2,3 | <30kHz | H+V | 1.5 | 4x4.5 | A | LD | ||||||
| 395 | STC-MLL-III-395 | CW | 1-100mW | 0.5,1,2,3 | <100kHz | <1.2 | >100:1 | <1 | 1.2 | <1 | A | LD, Low noise | ||||
| 395 | STC-MDL-III-395 | CW | 1-100mW | 0.5,1,2,3 | <100kHz | <1.2 | >100:1 | <1 | 1.2 | A | LD | |||||
| 395 | STC-TUN-TiA-393-408 | AOQ | 1-1000mW | 5, 10 | 20uJ | 10-50kHz | 25ns | 0.8kW | <4 | 2 | A | DPSS | ||||
| 397 | STC-MLL-III-397 | CW | 1-100mW | 0.5,1,2,3 | <100kHz | <2x0.5 | 3.5x1 | <1 | A | LD, Low noise | ||||||
| 397 | STC-MDL-III-397 | CW | 1-100mW | 0.5,1,2,3 | <100kHz | <2x0.5 | 3.5x1 | A | LD | |||||||
| 397 | STC-TUN-TiA-393-408 | AOQ | 1-1000mW | 5, 10 | 20uJ | 10-50kHz | 25ns | 0.8kW | <4 | 2 | A | DPSS | ||||
| 400 | STC-MDL-C-400 | CW | 1-50mW | 1,2,3 | >100:1 | <1.5 | 3 | A | LD, long coherent length | |||||||
| 400 | STC-MDL-E-400 | CW | 1-50mW | 1,2,3 | >100:1 | <1.5 | 3 | A | LD, narrow linewidth | |||||||
| 400 | STC-MLL-III-400 | CW | 1-300mW | 0.5,1,2,3 | <1.2 | >100:1 | 0.5 | 1.2 | <1 | A | LD, low noise | |||||
| 400 | STC-MDL-III-400 | CW | 1-300mW | 0.5,1,2,3 | <1.2 | >100:1 | 0.5 | 1.2 | A | LD | ||||||
| 400 | STC-TUN-TiA-393-408 | AOQ | 1-1000mW | 5, 10 | 20uJ | 10-50kHz | 25ns | 0.8kW | <4 | 2 | A | DPSS | ||||
| 405 | STC-FC-D-405 | CW | 1-100mW | 1,2,3 | 100 | <1 | A | LD | ||||||||
| 405 | STC-MSL-III-405 | CW | 1-10mW | 1,2,3 | <1.2 | >100:1 | <1.2 | <2 | A | LD, single longitudial | ||||||
| 405 | STC-MDL-C-405 | CW | 1-50mW | 1,2,3 | >100:1 | <1.3 | 1.3 | A | LD, long coherent length | |||||||
| 405 | STC-MDL-E-405 | CW | 1-150mW | 1,2,3 | >100:1 | <1.5 | 1.3 | A | LD, narrow linewidth | |||||||
| 405 | STC-TUN-403-407 | CW | 1-30mW | 1,2,3 | >100:1 | <1 | 3 | A | LD, wavelength tunable narrow linewidth | |||||||
| 405 | STC-TEM-F-405 | CW | 1-30mW | 1,2,3 | <30kHz | <1.1 | <1.5 | 1 | A | |||||||
| 405 | STC-MDL-PS-405 | Pulsed | 10um-0.5mW | 1,2,3 | <80MHz | 100-1000ps | 1 | 1.2 | A | LD, ps | ||||||
| 405 | STC-MDL-NS-405 | 1-500mW | <80MHz | 10ns010ms | <1.2 | >100:1 | <1 | 1.2 | A | LD | ||||||
| 405 | STC-MLL-III-405 | CW | 1-1000mW | 0.5,1,2,3 | <100kHz | <1.5 | >100:1 | <0.5 | 1.2 | <1 | A | LD, Low noise | ||||
| 405 | STC-MDL-XS-405 | CW | 1-200mW | 1,2,3 | <100kHz | <1.2 | >100:1 | <1 | 1.2 | <0.5 | A | LD | ||||
| 405 | STC-MDL-III-405 | CW | 1-1000mW | 0.5,1,2,3 | <100kHz | <1.2 | >100:1 | <0.5 | 1.2 | A | LD | |||||
| 405 | STC-MDL-D-405 | CW | 1-2W | 1,2,3 | <30kHz | H+V | <0.5X0.3 | 4X3 | A | LD | ||||||
| 405 | STC-MDL-HD-405 | CW | 2-5W | 1,2,3 | <30kHz | H+V | <1X0.6 | 6X7 | A | LD | ||||||
| 405 | STC-MDL-XD-405 | CW | 5-10W | 1,2,3 | <30kHz | H+V | <2X1.2 | 12X7 | A | LD | ||||||
| 405 | STC-TUN-TiA-393-408 | AOQ | 1-1000mW | 5,10 | 20uJ | 10-50kHz | 0.8kW | <4 | 2 | A | DPSS | |||||
| 405 | STC-OEM-I-405 | 1-7W | FC LD | |||||||||||||
| 405 | STC-OEM-D-405 | CW | 1W | 1,2,3 | H+V | <0.5x0.3 | 4x3 | A | LD | |||||||
| 405 | STC-OEM-D-405 | CW | 2W | 1,2,3 | H+V | <0.5x0.3 | 4x8 | A | LD | |||||||
| 405 | STC-OEM-HD-405 | CW | 2-5W | 1,2,3 | H+V | <1X0.6 | 6X7 | A | LD | |||||||
| 405 | STC-OEM-XD-405 | CW | 5-10W | 1,2,3 | H+V | <2x1.2 | 12X7 | A | LD |
Please contact us for more dettailed product information.
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 18 South Liu Fang Yuan Road, Sintec Industrial Park, Optics Valley of China, Wuhan Hubei, 430205 PR China
Tel: +86 27 51858962
Fax: +86 27 51858989
Mobile/Wechat: +86 13871137266
Whatsapp: +65 90013656
E-mail: sales@SintecOptronics.cn
