Protective Windows

Keywords: Protective window, protective glass, protective plate

Apr 19, 2020 View: 793 Data Sheet

This protective window is mainly used to protect the focusing lens. It can prevent trash from splash onto the lens and causing damage to the lens.

Online submission 1392360513 sales@SintecOptronics.cn

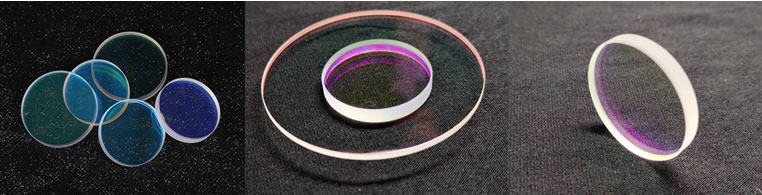

Laser protective windows are also called laser protective glasses/plates, laser dust-proof windows. This product is mainly used to protect the focusing lens. It can prevent trash from splash onto the lens and causing damage to the lens. However, it requires regular replacement of protective lenses to ensure the accuracy of laser processing. If you try to coat the windows with an anti-reflection coating films with a high damage threshold(>15Jcm2), it can effectively increase the transmittance of the windows, reduce the loss of laser energy, and improve the quality of processed products. This product is widely used in various laser processing equipment such as laser cutting machines (500-2000W), laser welding machines, laser marking machines and laser engraving machines.

All the windows we offer are made of high-quality quartz crystal materialsthroughcutting, grinding, polishing, coating. Similarly, we can customize various specifications of protective windows according to customer’s needs (diameter 20-100mm, thickness 1-9mm, diameter and thickness tolerances are ±0.1mm).

Features:

Made of high-quality quartz crystal material, ultra-thin windows, not easy to chip and crack
Double-side coated light-transmitting film (transmittance up to 99.5%)
Strong durability, high temperature resistance, strong anti-laser performance；
Wavelength up to 1064nm for a wide range of applications
45° protective full-angle design, safe and easy to use without hurting your hands
High light transmittance, strong anti-rubbish, long service life

General Product Specifications（1030-1090nm）

Model	Wavelength	Diameter	Thickness	Material	Clear Aperture	Transmittance	Surface Quality	Parallelism
STSA-001	1064nm	20mm	2mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-002	1064nm	20mm	3mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-003	1064nm	22.35mm	4mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-004	1064nm	24.9mm	1.5mm	Quartz				＜1 point
STSA-005	1064nm	25.4mm	3mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-006	1064nm	25.4mm	3mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-007	1064nm	27.9mm	4.1mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-008	1064nm	28mm	4mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-009	1064nm	30mm	1.5mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-010	1064nm	30mm	5mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-011	1064nm	34mm	5mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-012	1064nm	35mm	4mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-013	1064nm	36mm	5mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-014	1064nm	37mm	7mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-015	1064nm	40mm	2mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-016	1064nm	42mm	3mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-017	1064nm	50mm	2mm	Quartz	＜80％	99.5％	40/20	＜1 point
STSA-018	1064nm	55mm	1.5mm	Quartz	＜80％	99.5％	40/20	＜1 point

We can provide AR coating layers of any wavelength according to customer needs. If you have any specific requirement on diameter, thickness and coating, please contact us and we will also try our best to meet your needs.
