532nm F-Theta Lens

Description of STY series f-theta Lenses: STY-xxxx-yyy-zzz-dd-A

STY--- STY series laser f-theta lenses
  xxxx-- laser wavelength, 1064 means 1064nm, 10.6 means 10.6um.
  yyy---- mark field (scan field), yyy x yyy mm
  zzz---- effective focal length in mm
  dd------ entrance pupil (allowed maximum input laser beam diameter) in mm (option)
A------ others

Remark: (1) The f-theta lens consists of 3 lenses and one protective window/glass. The coating is a di-electric layer. The transmission is >99% at 1064nm. Two sides of the protective glass are AR-coated at 1064nm.

(2) In the following tables, the abbreviations are as follows: FL means effective focal length; EP means max. input beam diameter; SAR means scan area, AS means aperture stop; WD means working distance; OD means max. outside diameter; MT means mount thread, fs means fused silica, SA means max. full diagonal scan angle; L2 (a1) means recommended mirror separation; a2 means 2nd mirror to flange, L1 means the distance 2nd mirror and scan lens, SL means scan length, Length means the total length of the scan lens, WC means water cooled.

(1) STY Series 532nm Scan Lenses (F-theta Lenses)

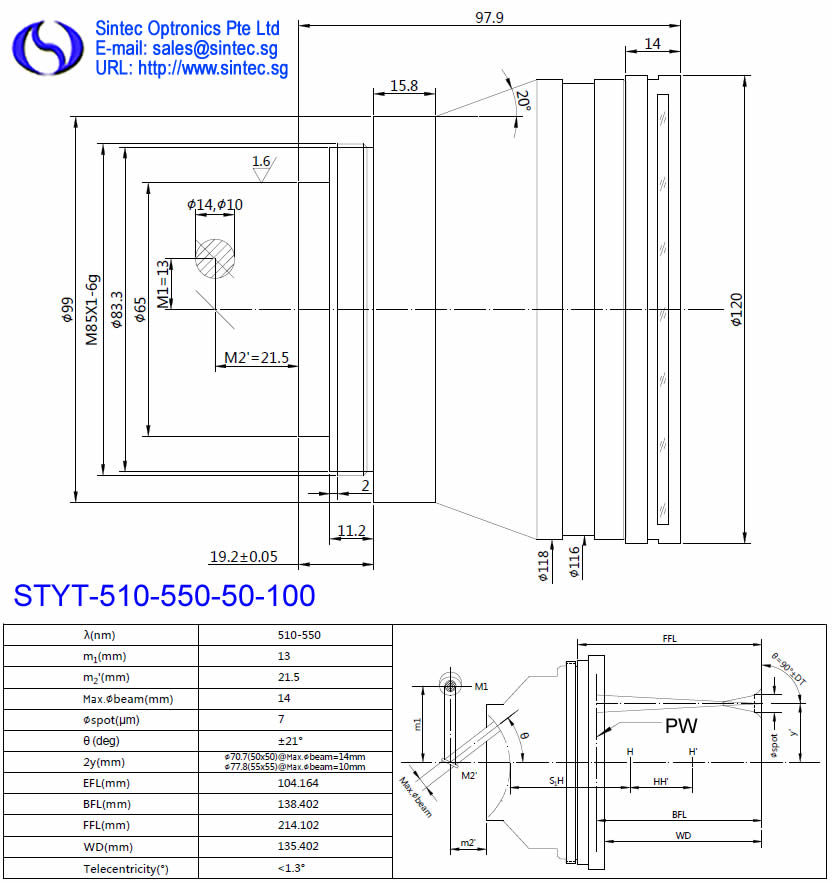

STY Series 515-550nm F-theta Lens (Fused Silica)

STY Series 532nm F-theta Lens (Optical Glass))

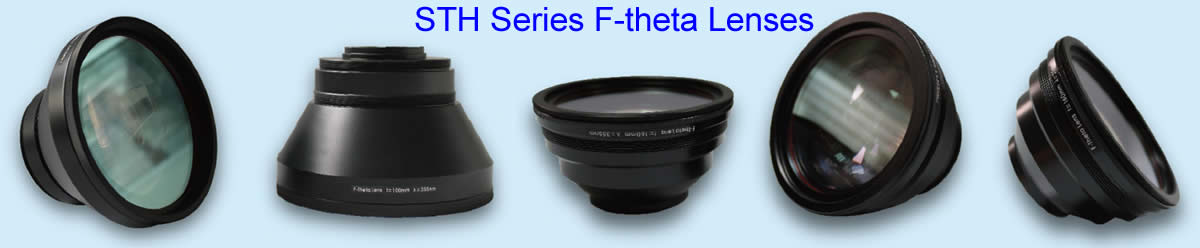

STH Series 532nm F-theta Lens

STW Series 532nm F-theta Lenses

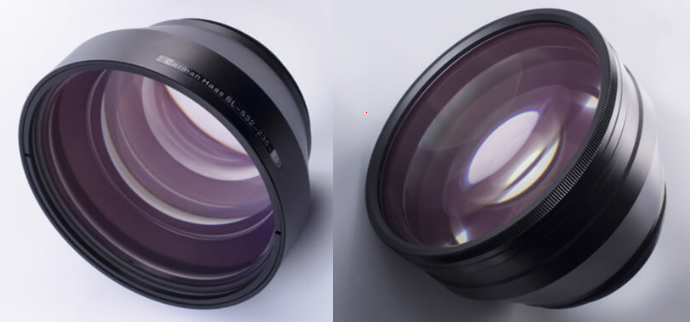

STC Series 532nm F-theta Lenses

STY Series 532nm Telecentric F-theta Lens (Fused Silica)

STY Series 532nm Telecentric F-theta Lens (Optical Glass)

STY-WT Series 532nm Scan Lenses

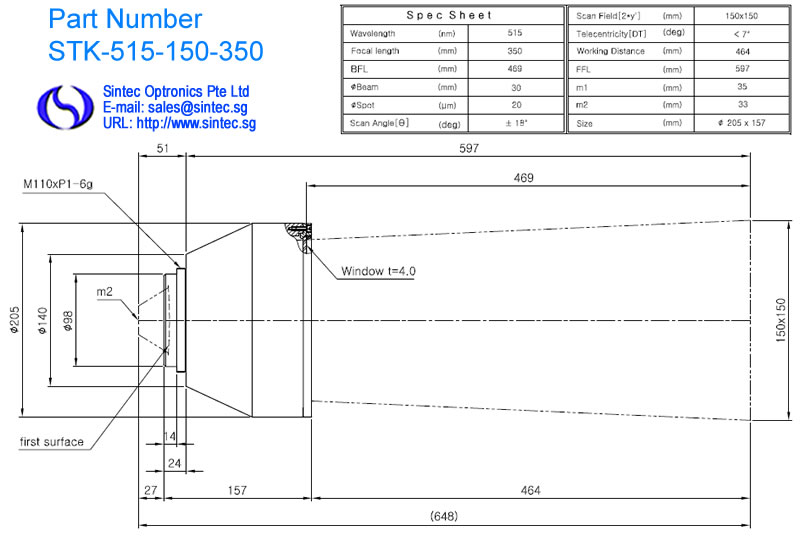

(3) STK Series 515/532nm F-theta / Telecentric F-theta Lenses

If you can not find a suitable f-theta lens, please download the form here and email us your filled form. We can custom-desing and make the lenses according to your specific requirements.
