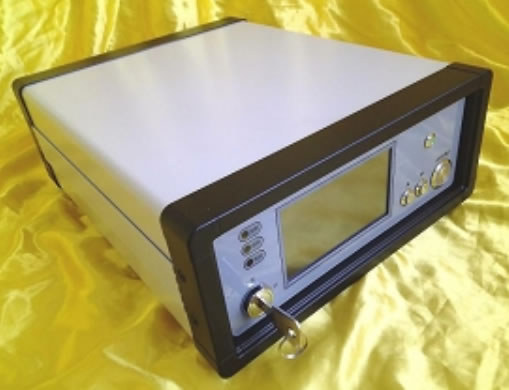

STYA-15V15A-WK temperature controller (hereinafter referred to as: temperature control power supply) is a high precision temperature control power supply with fast response, which is designed based on PWM modulation theory, including complete PID algorithm. The actuator of the temperature control power supply is a semiconductor refrigerator (TEC), and the temperature detection device is a thermistor NTC10K.The temperature control power supply supports two-way cooling and heating control. Temperature control power can be controlled through the front panel of the man-machine interface (local), easy to operate. On the front panel, you can set the temperature parameters of the controlled object, display the real-time temperature detection, start and stop the temperature control power, and display the status information of the temperature control power. And temperature control power can also be remotely controlled by computer through RS232 interface. In remote control mode, you can set temperature parameters of the temperature control power supply, query real-time temperature and various status information at any time, start and standby operations of the temperature control power supply, and receive fault information uploaded by the temperature control power supply. The temperature control power supply has the automatic memory function, which will automatically store the related setting parameters. Temperature control power adopts low noise, portable structure design, touch screen and physical keys shared operation scheme. The main features are as follows:
Digital design, excellent performance
Local control and computer remote control optional
64K true color LCD display, touch screen control
Complete PID feedback algorithm, PWM modulation mode
Two-way temperature control, support heating and cooling
Supports NTC10K temperature sensor
High efficiency, high precision and high reliability
Automatic memory function, store various state parameters at any time
Real-time temperature display and alarm prompt function
Simple and quick man-machine interface
Low noise structure design
| input power | AC220V±20% 50±3Hz |
| Output voltage range | -15~+15V (Adaptive thermal load) |
| Max driving current | 15A |
| Overall conversion efficiency | ≥85% |
| Temperature setting Range | 1~99℃ |
| Temperature control range | -10~110℃ |
| Temperature control accuracy | ≤±0.01℃ |
| Starting current is over impulse | 0% |
| Temperature sampling device | NTC10K@25℃，B=3950 |
| Operation environment | Temperature: -10~+50℃; Humidity: <85% |
| Storage environment | Temperature: -30~+85℃; Humidity: <90% |
| Dimensions | 160*320*110 (mm) |
| Weight | 3Kg |
| External fuse tube | 5A |
| Part number | Temp. stability | Driving capability (max.) | Supply voltage (V) | Size(mm) | Features |
| STXF-TCB-NE | 0.01 | 10A@24V /12A@12V | 5-24 | 75*65 | Generic version, NTC |
| STXF-TCB-NE-PT100 | 0.01 | 10A@24V /12A@12V | 5-24 | 75*65 | PT100 version |
| STXF-TCB-NE-PT1000 | 0.01 | 10A@24V /12A@12V | 5-24 | 75*65 | PT1000 version |
| STXF-TCB-NE-AH | 0.01 | 18A@24V /24A@12V | 7-24 | 95*65 | Generic version with enhanced power |
| STXF-TCB-NE-AH-PT100 | 0.01 | 18A@24V /24A@12V | 7-24 | 95*65 | PT100 version |
| STXF-TCB-NE-AH-PT1000 | 0.01 | 18A@24V /24A@12V | 7-24 | 95*65 | PT1000 version |
| STXF-TCB-NC | 0.01 | 10A@24V /12A@12V | 5-24 | 60*42 | NE miniature version |
| STXF-TCB-NC-PT100 | 0.01 | 10A@24V /12A@12V | 5-24 | 60*42 | PT100 version |
| STXF-TCB-NC-PT1000 | 0.01 | 10A@24V /12A@12V | 5-24 | 60*42 | PT1000 version |
| STXF-TCB-NA | 0.1 | 12A@24V /15A@12V | 5-24 | 60*42 | NC simplified version |
| STXF-TCB-SV | 0.01 | 4.5V2.5A | 7-24 | 60*42 | Suitable for small TEC |
| STXF-TCB-SA | 0.01 | 4.5V3A | 5 | 60*42 | Suitable for small TEC |
| STXF-TCB-SS | 0.01 | 4.5V3A | 5 | 40*40 | SA miniature version |
| STXF-ATC-B1 | 0.001 | 4.4V2.8A | 5 | 40*40 | Analog PID, fast settling, DFB/TO device |
Remarks: NE/NE-AH/NC use 10k NTC temperature sensor by default, PT100 or PT1000 are optional, other models only support NTC.

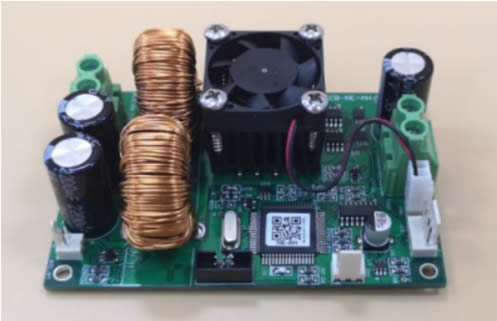

STXF-TCB-NE-AH is a temperature control board for semiconductor refrigeration chips (also known as thermoelectric coolers TEC), which contains a complete PID control. It has continuous output mode, and the temperature control accuracy can reach 0.01 degree. This device supports the most commonly used 10k NTC temperature sensor, TEC can have multiple configurations, and the power supply is DC power supply. This board is the high current version of STXF-TCB-NE. It is suitable for high-power and high-precision temperature control, such as high-power LD.
Features:
PID control algorithm
High accuracy, down to 0.01 degree
Wide range of TEC voltage: 2~24V
Large TEC current range: rated 18A (if the supply voltage is less than or equal to 12V, the current can reach 24A)
Two-way control, support heating and cooling
TEC configuration is flexible
It can set and detect the temperature through the serial port (ASCII code protocol, supports the computer with its own super terminal, everyone can use it)
It has alarm, ready signal output, and close TEC signal input
Control mode: continuous voltage
Applications:
Temperature control system with TEC (semiconductor cooler, thermoelectric cooler) as the temperature control element
Suitable for but not limited to temperature control of laser diodes
Suitable for various fields such as industry and home appliances
Biological, medical, PCR temperature control, etc.
Main technical parameters:
Board supply voltage: 7.5- 27V (standard voltages such as 7.5/12/15/24 are recommended, the TEC rated voltage is preferably equal to or slightly larger than the power supply voltage, if the TEC rated voltage is less than the power supply voltage, you can also set the maximum output ratio)
Board supply current: determined by the actual maximum power of the TEC
TEC voltage: 2V – 24V (depending on power supply voltage)
TEC current: rated 18A (If power supply voltage is less than or equal to 12V, the current can reach 24A)
Temperature control sensor: 10k NTC (default B value is 3950, the actual B value is not limited, only affects absolute temperature, not relative temperature, basically meaningless for temperature control), PT100 optional
Temperature control accuracy: 0.01°
Setting temperature accuracy: 0.01°
NTC version temperature control measurement range: -60 - +170 degrees
NTC version control temperature range: -20 - +100 degrees
PT100/PT1000 temperature control measurement range: -60 - +212 degrees
PT100/PT1000 control temperature range: -50 - +200 degrees
Default factory setting temperature: 25°, or user specified
Working ambient temperature: -40 to +45 degrees
Storage ambient temperature: -40 to +60 degrees
Working environment humidity: 0-95%
Dimensions: 65mm*95mm, Height: 35mm
Ordering Information:
Product name: temperature control board
Product model: STXF-TCB-NE-AH/-X
-X: Optional PT100 or PT1000 probe, omitting -X means that NTC probe is supported by default
For example: TXF-TCB-NE-AH, TXF-TCB-NE-AH-PT100, TXF-TCB-NE-AH-PT1000
Control Method:
The board uses serial communication to modify and monitor information. There are three control methods as follows:
The temperature control display unit made by us such as STXF-DISP-TCB (connect the serial port of the temperature control board to the display screen)
Our PC software STXF-TCBMate (connect the serial port of the temperature control board to the computer)
Directly use the serial port to issue command control (using a microcontroller, or a PC)
| Name | Specifications | Supply voltage(V) | Features |
| Temperature control display panel | STXF-DISP-TCB | 5,7-24 | Support STXF-TCB series temperature control board |
| Temperature control display panel | STXF-DISP-TCB-P | 5,7-24 | Support STXF-TCB series temperature control board with metal panel |
| Temperature control display panel | STXF-CDM-TCB | 5 | Support STXF-TCB series temperature control board |
| Temperature control display panel | STXF-CDM-TCB-P | 5 | Support STXF-TCB series temperature control board with metal panel |
| TCB communication line | STXF-TCB-RS232 | Support STXF-TCB series temperature control board | |
| RS232 to RS485 Converter | STXF-UT-2201 | ||
| Serial hub board | RS232-NODE | RS232 HUB | |
| USB to serial cable | UTR-01 |

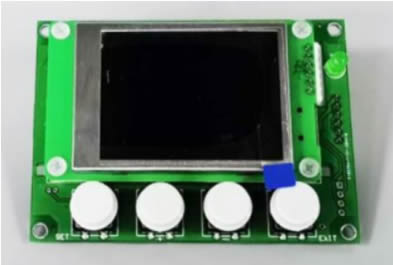

Details of STXF-DISP-TCB(DW) Temperature Control Display Board:
The STXF-DISP-TCB(DW) temperature control display board supports STXF-TCB-NA, STXF-TCB-NE/NE-AH, STXF-TCB-SA and other temperature control boards. The temperature value and various related parameters can be set through the temperature control display board, and the current temperature control information can be seen intuitively. The temperature control display board can be used as a setting tool for the temperature control board, or can be directly installed on the panel as the monitoring interface of the temperature control board.
Features:
It can be easily installed on the customer's equipment panel
Support STXF-TCB full range of temperature control boards
Support the setting of various parameters
Support temperature display as a curve
It has a 7-28V power input port, and a 5V power input/output port and you can supply power through one of them
Ordering Information:
Product name: temperature control display board
Product model: STXF-DISP-TCB/-P(DW) -P: A -P suffix means a black panel. If there is no panel, it will be omitted directly.
For example: STXF-DISP-TCB(DW), STXF-DISP-TCB-P(DW)

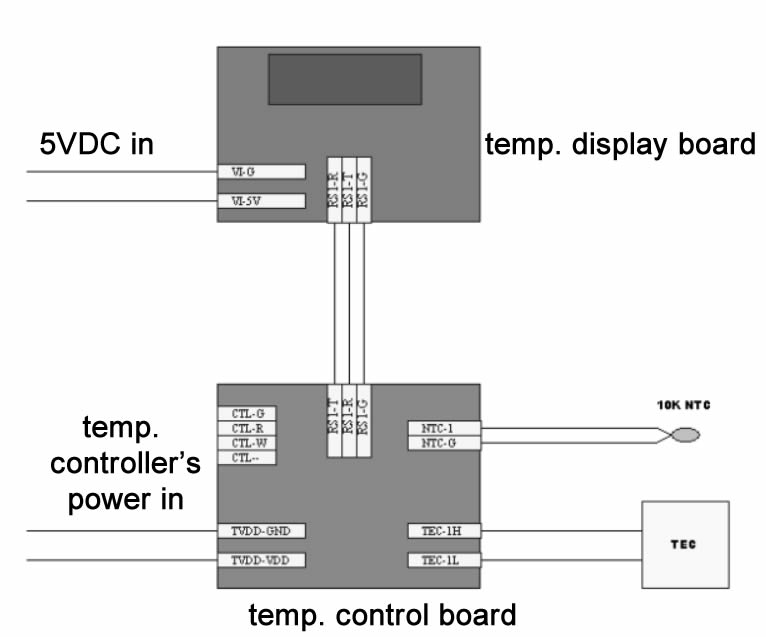

Electrical connection diagram:
The TEC driver is a high-performance temperature control system (air cooling) specially designed for driving laser diode (thermoelectric refrigeration chip, TEC), with high precision and high stability.It is based on the principle of Peltier effect. It has the advantages of high precision, long service life, small volume, no noise, no wear, no vibration, no pollution. The TEC driver has perfect PID control software and intelligent stepless temperature control, which can both cooled and heated. It can control by RS232 / 485 serial communication interface and communication protocol.
It can also supplies 1-2 channels of TEC control output, which can be used to control laser, medical devices, diode, infrared detectors, photomultiplier tubes, or any other devices which need the temperature control.
The TEC driver adopts the latest modern power electronic devices, high-speed microprocessor (MPU) program control technology, as well as PWM modulation, bidirectional power supply and PID regulation technology. It has excellent voltage and current output characteristics. No overshoot, no kickback, no surge and low noise when operation.
It also has over-current, over temperature and under temperature protection circuits, as well as a set of normally open / normally closed temperature alarm signal output.
The driver adopts 16 bit "8" LED, simple menu mode display, membrane button, and has friendly user interface and fault diagnosis function.
It is an excellent choice for laser equipment manufactures, research institute and personal. We used the standard PT1000 temperature sensor (platinum resistance) to have the best precision, linearity and stability.
Intelligent step-less temperature regulation, two-way temperature control (both cooling and heating)
Temperature accuracy±0.1°C
Normally operating temperature range (0°C - 80°C adjustable) ( other ranges can be customized)
Temperature alarm when exceeds the upper / lower limit
The user can modify the temperature PID feedback parameters (but usually use the System Default PID parameters or the self- calibrated PID parameters)
Three constant temperature mode selection: (1) standard cold and hot constant temperature (default), (2) cooling constant temperature, (3) heating constant temperature
Automatic calibration of PID parameters of the temperature
RS232/485 communication protocol (optional)
With a set of normally open / close temperature alarm signal output
With temperature ready signal output
Over heat, over current protections; over/under temperature protection circuit
High stability, high anti-interference ,entirely eliminate 50 / 60Hz frequency interference
8/16 bit "8" LED, simple menu / mode display, membrane button
User friendly interface, fault diagnosis function
We can customize the driver according to customer’s requirements
| Model | STJ-JT0605 | STJ-JT0610 | STJ-JT0615 | STJ-JT0620 | STJ-JT1205 | STJ-JT1210 |
| Temperature range (°C) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) |
| Temperature accuracy (°C) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Temperature stability (°C) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Adjustment cycle (s) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Input voltage(VAC) | 12VDC (220V±15%) | 12VDC (220V±15%) | 12VDC (220V±15%) | 12VDC (220V±15%) | 12VDC (220V±15%) | 12VDC (220V±15%) |
| Output voltage (V) | 0-6 | 0-6 | 0-6 | 0-6 | 0-12 | 0-12 |
| Output current (A) | 0-5 | 0-10 | 0-15 | 0-20 | 0-05 | 0-10 |
| Voltage noise (Vp-p) | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
| Current noise (Ap-p) | ≤10mA | ≤20mA | ≤30mA | ≤40mA | ≤10mA | ≤20mA |
| Stability(%) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| (LCD/LED) | LED | LED | LED | LED | LED | LED |
| Working temperature (°C) | -20~+40 | -20~+40 | -20~+40 | -20~+40 | -20~+50 | -20~+40 |
| Environment humidity (%) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
| Model | STJ-JT1215 | STJ-JT1220 | STJ-JT2405 | STJ-JT2410 | STJ-JT3606 | STJ-JT4805 |
| Temperature range (°C) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) | 0～80 (or customized) |
| Temperature accuracy (°C) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Temperature stability (°C) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Adjustment cycle (s) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Input voltage(VAC) | 12VDC (220V±15%) | 12VDC (220V±15%) | 24VDC (220V±15%) | 24VDC (220V±15%) | 36VDC (220V±15%) | 48VDC (220V±15%) |
| Output voltage (V) | 0-12 | 0-12 | 0-24 | 0-24 | 0-36 | 0-48 |
| Output Current (A) | 0-15 | 0-20 | 0-05 | 0-10 | 0-6 | 0-5 |
| Voltage Noise(Vp-p) | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
| Current noise (Ap-p) | ≤30mA | ≤40mA | ≤15mA | ≤30mA | ≤15mA | ≤20mA |
| Stability(%) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| (LCD/LED) | LED | LED | LED | LED | LED | LED |
| Working temperature (°C) | -20~+40 | -20~+40 | -20~+40 | -20~+40 | -20~+40 | -20~+40 |
| Environment humidity (%) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Remarks:
If needs 48VDC or 110VAC power supply, please inform us when ordering
the driver size W×L×H＝215×115×50 mm (Modular, 12～36VDC)
Above drivers are our standard models. We can also customize according to customer’s parameters.
